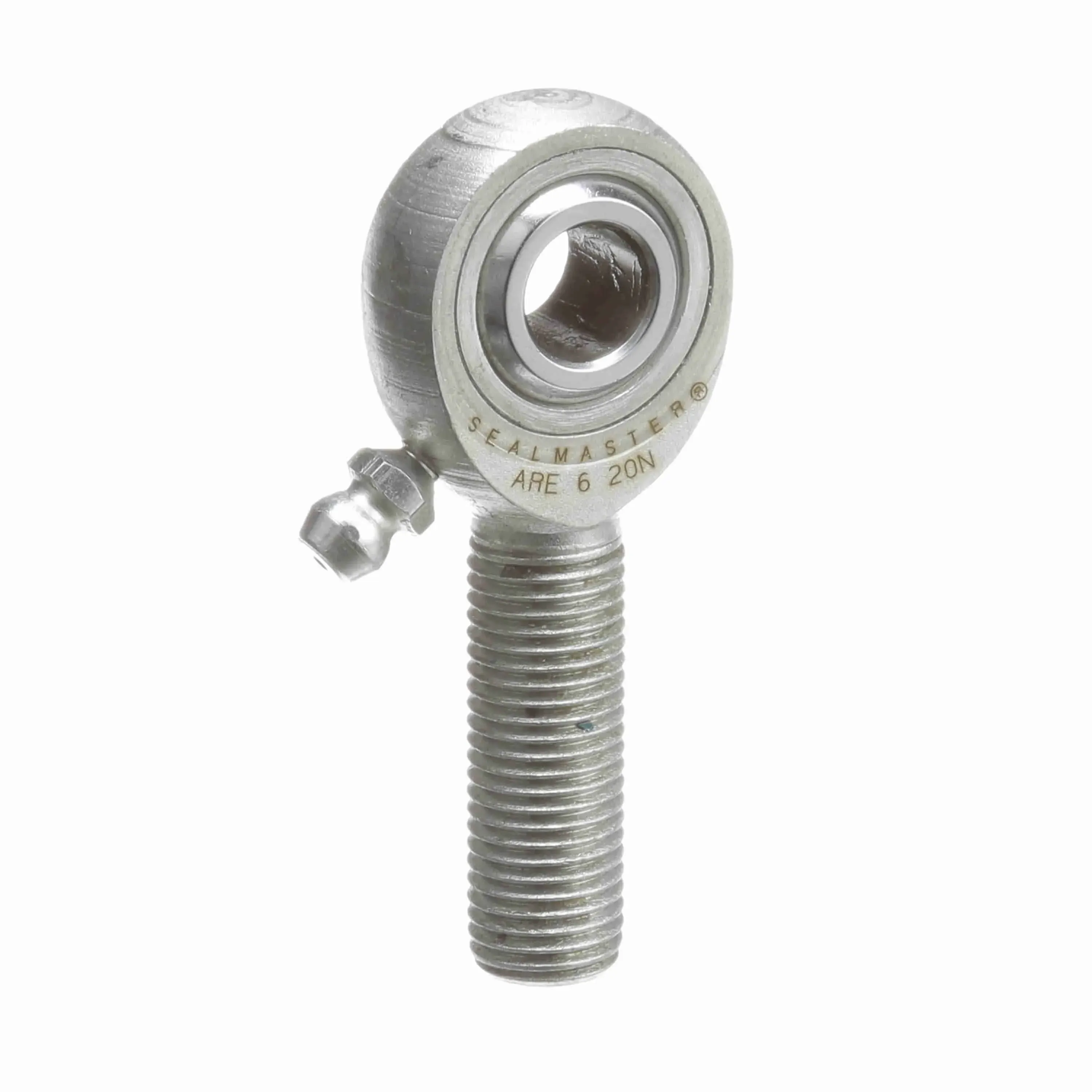

SEALMASTER ARE 6 20N 1440603000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Male, 7/16-20 UNF, Right Hand
Get it by Tuesday, Sep 1
€53.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Axial Load | 957 |
| Ball Dia. | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.517" |
| Ball Material | Alloy, Steel |
| Ball Width | 1/2" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Precision |
| Configuration | Male |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Dia. | 1" |
| Housing Style | Male Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.94" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 9570 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Alloy Steel |
| Outer Material Grade | 4130 |
| Outer Material Property | Heat Treated Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Are-20 |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | PRECISION EXTRA CAPACITY Series |
| Thread Direction | RH |
| Thread Length | 1.219" |
| Thread Size | 7/16"-20 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.46 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 1.78 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Ball Material | Race Material | Type | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
AREL 4 20 | 1/4" | - | Alloy, Steel | Carbon Steel | - | Grade4130 | €243.99 | |
 |
ARE 5 20N | 5/16" | 5/8" | Alloy, Steel | Carbon Steel | Male Rod End | - | €52.23 | |
 |
ARE 10 | 5/8" | 1 1/8" | Alloy, Steel | Carbon Steel | Male Rod End | - | €112.70 | |
 |
ARE 10 20 | 5/8" | 1 1/8" | Alloy, Steel | Carbon Steel | Male Rod End | - | €111.85 | |
 |
AREL 7 20N | 7/16" | - | Alloy, Steel | Carbon Steel | - | Grade4130 | €72.79 | |
 |
ARE 3 | 3/16" | 0.437" | Alloy, Steel | Carbon Steel | Male Rod End | - | €45.52 | |
 |
AREL 12 | 3/4" | 1.312" | Alloy, Steel | Carbon Steel | Male Rod End | - | €144.94 |
