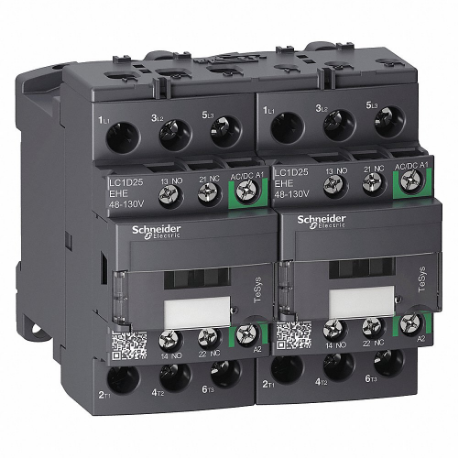

SCHNEIDER ELECTRIC LC2D25EHE Iec Magnetic Contactor, 48 To 130 VAC/Dc Coil Volts, 1No/1Nc
Item: CU2BQMModel: LC2D25EHECross Ref: 482Z60
7 In Stock
Ships within 2 days via
10.00% off
€438.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Volts | 48-130V AC/DC |
| Contactor Style | IEC |
| Electrical Operating Durability | 2000000, 900000 |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 25A |
| Full Load Amps-resistive | 40A |
| Full Load Current - Resistive | 40A |
| Height | 3.35" |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 20 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 208v | 7 1/2 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 15 hp |
| Hp @ 3 Phase - 575v | 20 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 15000000 |
| Minimum Operating Temperature | -40°F |
| Nominal Coil Voltage @ 60hz | 120/48V AC |
| Number Of Poles | 3 |
| Overall Depth | 3.62" |
| Overall Height | 3.35" |
| Overall Width | 3.54" |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | Tesys Deca |
| Width | 3.54" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 8.99 |
| Country of Origin | FR |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Coil Volts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1F630 | - | - | - | - | - | - | - | 600V AC | €10,874.25 | |
 |
LP1K1201BD | 3 | Non-reversing | 3NO | 1NC | 24V DC | Screw Clamp | No | 24V | €185.40 | |
|
LP1K0601BD3 | 3 | - | - | - | - | - | - | 24V DC | €178.40 | |
 |
LC1D50AF7 | 3 | - | - | - | - | - | - | 110V | €534.36 | |
 |
LC1D18E7 | 3 | - | - | - | - | - | - | 48V | €341.66 | |
 |
LC1D18F7 | 3 | Non-reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €291.42 | |
 |
LC1D258F7 | 4 | Non-reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 110V | €446.86 |
