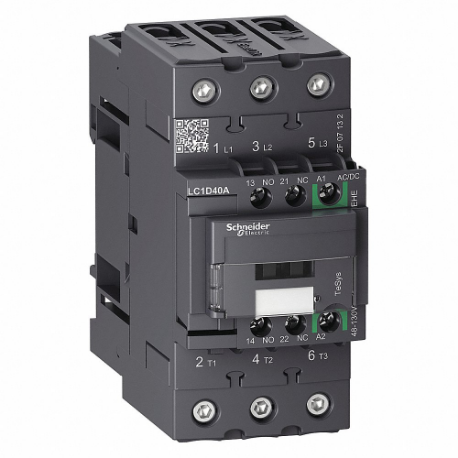

SCHNEIDER ELECTRIC LC1D40AEHE Iec Magnetic Contactor, 48 To 130 VAC/Dc Coil Volts, 1No/1Nc
Item: CU2BQXModel: LC1D40AEHECross Ref: 482Z40
7 In Stock
Ships within 2 days via
€351.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Application | Motor Control, Resistive Load |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 48-130V AC/DC |
| Contactor Style | IEC |
| Depth | 4 18/25" |
| Electrical Operating Durability | 2000000, 700000 |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Features | Built-In Bi-Directional Peak Limiting |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 40A |
| Full Load Amps-resistive | 60A |
| Height | 4 4/5" |
| Hold Va | 1.4 VA |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 1 Phase-240v | 5 hp |
| Hp @ 3 Ph-480v | 30 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-240v | 10 hp |
| Hp @ 3 Phase-480v | 30 hp |
| Hp @ 3 Phase-575v | 30 hp |
| Hp @ 3 Phase-600v | 30 hp |
| Impulse Withstand Voltage | 6 kV |
| Included | Everlink Power Connections |
| Included Auxiliary Contacts | Yes |
| Included Protective Cover | Yes |
| Inrush Va | 23 VA |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Max. Operating Temp. | 140°F |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 6000000 |
| Min. Operating Temp. | -40°F |
| Mounts On | Plate, Rail |
| No. Of Auxillary Contacts | 2 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120/48V AC |
| Non-overlap Time | 1.5 ms |
| Overall Depth | 4.72" |
| Overall Height | 4 4/5" |
| Overall Width | 2.17" |
| Phase | 3 |
| Product Datasheet | schneider-electric-lc1d40aehe.pdf |
| Rated Insulation Voltage | 690V |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | Tesys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Watts Loss | 0.9 W |
| Width | 2.17" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 5.51 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Wire Termination Type | Integrated Surge Suppression | Height | Reversible | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP1K1201BD | Non Reversing | 3NO | 1NC | 24V DC | Screw Clamp | No | - | - | €123.13 | |
|
LP1K0601BD3 | - | - | - | - | - | - | 58 mm | - | €111.03 | |
 |
LC1D50AF7 | - | - | - | - | - | - | 122 mm | - | €375.87 | |
 |
LC1D18E7 | - | - | - | - | - | - | 77 mm | - | €243.67 | |
 |
LC1D18F7 | Non Reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | - | - | €126.17 | |
 |
LC1D258F7 | Non Reversing | 2NO/2NC | 1NO/1NC | 120V AC | Screw Clamp | No | 4.13" | No | €315.79 | |
 |
LC1D25F7 | Non Reversing | 3NO | 1NO/1NC | 120V AC | Screw Clamp | No | 3.35" | No | €228.42 |
