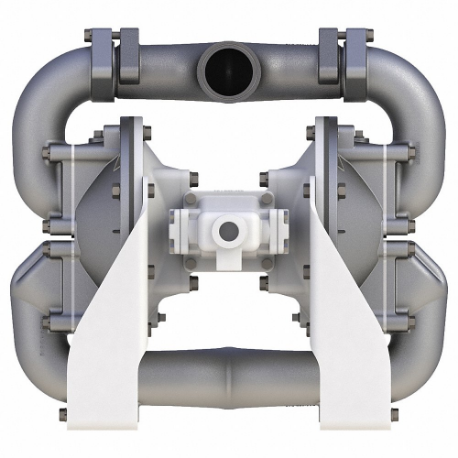

SANDPIPER TSA2 DF5SW. Flap Valve Pump, Metallic, Bottom Discharge
Get it by Thursday, Dec 18
10.00% off
€18,099.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flap Valve Pump |
| Air Consumption | 140 SCFM |
| Air Consumption (maximum) | 140 SCFM |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 3/4" |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 2 1/2" |
| Connection Type | Tri Clamp |
| Diaphragm Material | Buna N |
| Discharge Port Configuration | Bottom |
| Discharge Port Size | 2 1/2" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Feet Of Head (maximum) | 289 ft. |
| Flow Rate (maximum) | 208 GPM |
| Flow Rate @ 100 Psi | 200 GPM |
| Flow Rate @ 20 Psi | 125 GPM |
| Flow Rate @ 40 Psi | 160 GPM |
| Flow Rate @ 60 Psi | 180 GPM |
| Flow Rate @ 80 Psi | 190 GPM |
| Fluid Connection Size | 2 1/2" |
| Fluid Connection Type | Tri-Clamp |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 3/4" |
| Inlet Type | NPT |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 208 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 190°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 2" |
| Media Discharge Connection Size | 2 1/2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Bottom |
| Media Intake Connection Size | 2 1/2" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Top |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Overall Height | 20.1" |
| Overall Width | 13 3/5" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Series | TSA2 Series |
| Solid Diameter (maximum) | 2" |
| Suction Port | 2 1/2" TRI Clamp |
| Suction Port Configuration | Top |
| Valve Material | Buna N |
| Valve Type | Flap |
Shipping Info:
| Ship weight (kg) | 59.85 |
| Ship height (cm) | 51.13 |
| Ship length (cm) | 53.9 |
| Ship width (cm) | 34.44 |
| Country of Origin | US |
