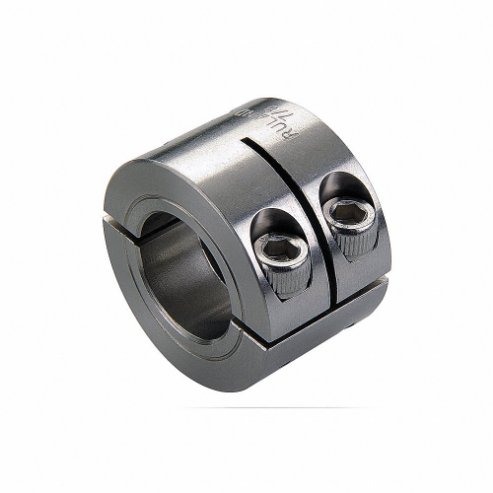

RULAND MANUFACTURING WSP-4-SS 1/4 Inch Double Wide Shaft Collar, 303 SS, Two-Piece Clamp Style, 5/8 Inch OD, 5/8 Inch Wd.
Item: AF9YKPModel: WSP-4-SSCross Ref: 30VX29
7 In Stock
Ships within 2 days via
10.00% off
€121.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 1/4" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Clearance Dia. | 26.3 mm |
| Clearance Diameter | 0.77" |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 5/8" |
| Collar Style | Clamp |
| Collar Width | 5/8" |
| Dimension Type | Standard |
| For Shaft Diameter | 1/4" |
| Grade | Grade 303 |
| Included Screws | (4) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 2 |
| Operating Temp. Range | -40°F to +350°F |
| Outside Dia. | 24 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.21" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 304 |
| Screw Seating Torque | 8 lbs.-in. |
| Screw Size | #4-40 |
| Screw Thread Size | #4-40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width | 20 mm |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 1.57 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Collar Material | Outside Dia. | Bore Dia. | Material | Clearance Dia. | Screw Material | Collar Width | Collar Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| WSP-10-F | Carbon Steel | - | 5/8" | Lead Free Steel | 140.8 mm | Alloy Steel | 15/16" | Black Oxide | €99.85 | |
| WSP-10-SS | - | - | 5/8" | Stainless Steel | 140.8 mm | Stainless Steel | - | - | €252.55 | |
| WSP-12-F | Carbon Steel | 140 mm | 3/4" | Lead Free Steel | 149.9 mm | Alloy Steel | 1 1/16" | Black Oxide | €104.54 | |
| WSP-12-SS | Stainless Steel | 24 mm | 3/4" | Stainless Steel | 26.3 mm | Stainless Steel | 1 1/16" | Bright | €247.26 | |
| WSP-14-F | Carbon Steel | 24 mm | 7/8" | Lead Free Steel | 26.3 mm | Alloy Steel | 1 1/16" | Black Oxide | €127.67 | |
| WSP-14-SS | Stainless Steel | 28 mm | 7/8" | Stainless Steel | 32 mm | Stainless Steel | 1 1/16" | Bright | €305.95 | |
| WSP-16-F | Carbon Steel | 28 mm | 1" | Lead Free Steel | 32 mm | Alloy Steel | 1 1/16" | Black Oxide | €113.05 |
