RULAND MANUFACTURING MSPK-35-A 35mm Two-Piece Shaft Collar, Aluminum, Clamp Style With Keyway, 57mm OD, 15mm Wd.
Item: CT9JAGModel: MSPK-35-ACross Ref: 805F14
7 In Stock
Ships within 2 days via
10.00% off
€107.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 35 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round Keyed |
| Clearance Dia. | 62.4 mm |
| Collar Construction | 2-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 57 mm |
| Collar Width | 15 mm |
| Construction | Two Piece |
| For Shaft Dia. | 35 mm |
| For Shaft Diameter | 35 mm |
| Grade | Grade 2024 |
| Included Screws | (2) Clamp Screw |
| Keyway Depth | 3.5 mm |
| Keyway Width | 10 mm |
| Max. Operating Temp. | 225°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 57 mm |
| Screw Length | 18 mm |
| Screw Location From Center | 23.24 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M6 x 18 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.36 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 3.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Collar Material | Outside Dia. | Clearance Dia. | Collar Material Finish | For Shaft Dia. | Screw Location From Center | Collar Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSPK-10-A | 10 mm | Aluminum | 24 mm | 26.3 mm | Bright | 10 mm | 8.51 mm | 9 mm | €57.46 | |
 |

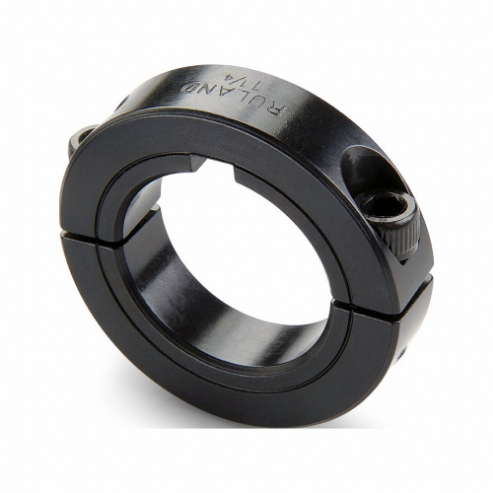

MSPK-10-F | 10 mm | Carbon Steel | 24 mm | 26.3 mm | Black Oxide | 10 mm | 8.51 mm | 9 mm | €51.81 | |
 |

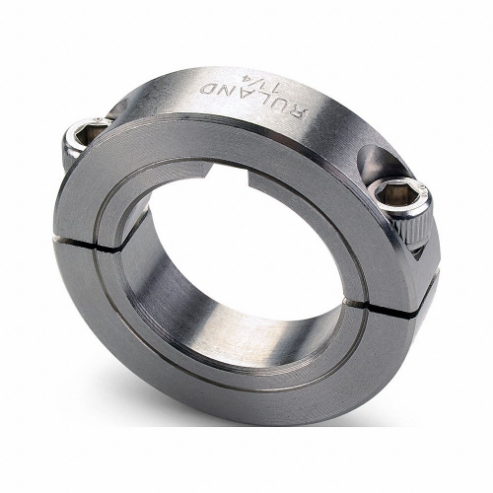

MSPK-10-SS | 10 mm | - | - | 26.3 mm | Bright | 10 mm | 8.51 mm | 9 mm | €79.90 | |
|
MSPK-12-F | 12 mm | Carbon Steel | 28 mm | 32 mm | Black Oxide | 12 mm | 10.01 mm | 11 mm | €52.86 | |
|
MSPK-12-A | 12 mm | Aluminum | 28 mm | 32 mm | Bright | 12 mm | 10.01 mm | 11 mm | €58.60 | |
|
MSPK-12-SS | 12 mm | Stainless Steel | 28 mm | 32 mm | Bright | 12 mm | 10.01 mm | 11 mm | €89.14 | |
|
MSPK-14-A | 14 mm | Aluminum | 30 mm | 33.7 mm | Bright | 14 mm | 11 mm | 11 mm | €64.64 |
