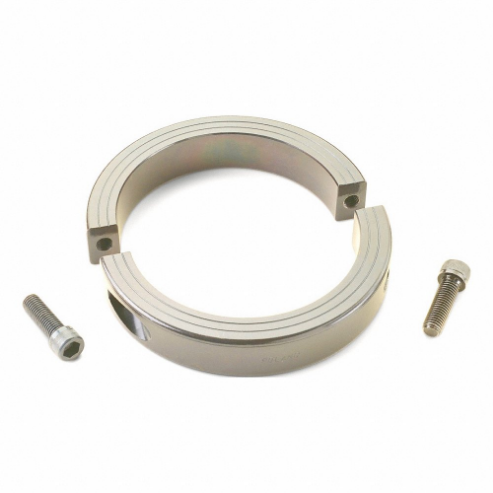

RULAND MANUFACTURING MSPH-90-SS 90mm Heavy Duty Shaft Collar, 303 SS, Two-Piece Clamp Style, 130mm OD, 32mm Wd.
Item: CT9HWWModel: MSPH-90-SSCross Ref: 805EY5
7 In Stock
Ships within 2 days via
10.00% off
€2,047.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 90 mm |
| Bore Tolerance | 0 mm to 0.102 mm |
| Bore Type | Round |
| Clearance Dia. | 140.8 mm |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 130 mm |
| Collar Width | 32 mm |
| Construction | Two Piece |
| For Shaft Dia. | 90 mm |
| For Shaft Diameter | 90 mm |
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 130 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 40 mm |
| Screw Location From Center | 56.6 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 81 N-m |
| Screw Thread Size | M12 x 40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.025 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 1.57 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 15.88 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Collar Material | Outside Dia. | Screw Material | Clearance Dia. | Collar Material Finish | Screw Location From Center | Shaft Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MSPH-105-F | 105 mm | Carbon Steel | 150 mm | Alloy Steel | 159.2 mm | Black Oxide | 66.5 mm | -0.025 mm to 0" | €1,462.97 | |
| MSPH-110-F | 110 mm | Carbon Steel | 150 mm | Alloy Steel | 159.2 mm | Black Oxide | 66.5 mm | -0.025 mm to 0" | €1,462.97 | |
| MSPH-115-F | 115 mm | Carbon Steel | 160 mm | Alloy Steel | 168.5 mm | Black Oxide | 71.5 mm | -0.025 mm to 0" | €1,818.35 | |
| MSPH-120-F | 120 mm | Carbon Steel | 160 mm | Alloy Steel | 168.5 mm | Black Oxide | 71.5 mm | -0.025 mm to 0" | €885.09 | |
| MSPH-125-F | 125 mm | - | 170 mm | Alloy Steel | 177.9 mm | - | - | - | €2,069.86 | |
| MSPH-130-F | 130 mm | Carbon Steel | 170 mm | Alloy Steel | 177.9 mm | Black Oxide | 76.5 mm | -0.025 mm to 0" | €1,797.84 | |
| MSPH-135-F | 135 mm | Carbon Steel | 180 mm | Alloy Steel | 187.4 mm | Black Oxide | 81.5 mm | -0.025 mm to 0" | €2,422.08 |
