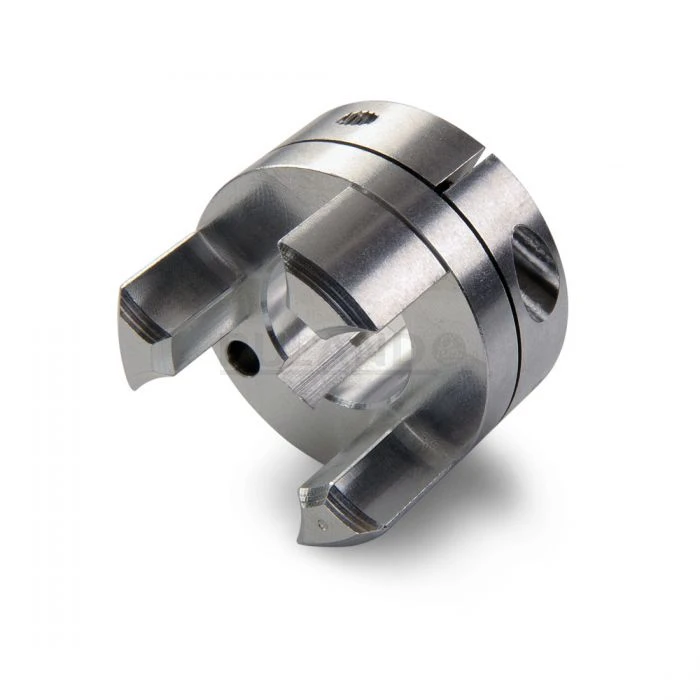

RULAND MANUFACTURING MJCC57-28-A 28mm Jaw Coupling Hub, Aluminum, Clamp Style With Keyway, 57.2mm OD, 28.7mm Lg.
Item: DK6GCWModel: MJCC57-28-A
7 In Stock
57 mm
28 mm
Ships within 2 days via
€194.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| B1 Max Shaft Penetration | 28.7 mm |
| Balanced Design | Yes |
| Bore (b1) | 28 mm |
| Bore Tolerance | -0 mm to +0.03 mm |
| Fail Safe | Yes |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | M6 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 5 mm |
| Hub Width (lh) | 28.7 mm |
| Keyway (k) | 8 mm |
| Length (l) | 3.15" |
| Material Specification | 2024-T351 Aluminum Bar |
| Max. Speed | 8000 RPM |
| Misalignment | Misalignment Ratings Vary With Insert Selection |
| Moment Of Inertia | 8.914 x 10 |
| Number Of Screws | 1 EA |
| Outer Diameter | 2 1/4" |
| Recommended Gap Between Hubs | 0.05" |
| Recommended Inserts | JD36/57-98R |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 16 N-m |
| Temperature | -10°F to 180°F |
| Torque Specifications | Torque Ratings Vary With Insert Selection |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8 |
| Ship width (cm) | 5.72 |
| Country of Origin | US |
Product Variants
| Model | Keyway Size | Outside Dia. | Coupling Size | Bore Dia. | Overall Coupling Length | Bore Tolerance | Length Through Bore | Hub Material Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJCC25-10-A | 3 mm x 1.4 mm | 1" | MJC25 | 10 mm | - | 0 mm to 0.05 mm | 11.9 mm | Grade 2024 T351 | €77.94 | |
| MJCC25-12-A | 4 mm x 1.8 mm | 1" | MJC25 | 12 mm | - | 0 mm to 0.05 mm | 11.9 mm | Grade 2024 T351 | €79.49 | |
| MJCC41-10-A | 3 mm x 1.4 mm | 1 5/8" | Mjc41 | 10 mm | - | 0 mm to 0.05 mm | 18 mm | Grade 2024 T351 | €132.27 | |
| MJCC41-12-A | 4 mm x 1.8 mm | 1 5/8" | Mjc41 | - | - | 0 mm to 0.05 mm | 18 mm | Grade 2024 T351 | €135.08 | |
| MJCC41-14-A | 5 mm x 2.3 mm | 1 5/8" | Mjc41 | 14 mm | - | 0 mm to 0.05 mm | 18 mm | Grade 2024 T351 | €134.78 | |
| MJCC41-16-A | 5 mm x 2.3 mm | 1 5/8" | Mjc41 | 16 mm | - | 0 mm to 0.05 mm | 18 mm | Grade 2024 T351 | €133.98 | |
| MJCC41-20-A | 6 mm x 2.8 mm | 1 5/8" | Mjc41 | 20 mm | - | 0 mm to 0.05 mm | 18 mm | Grade 2024 T351 | €137.28 |
