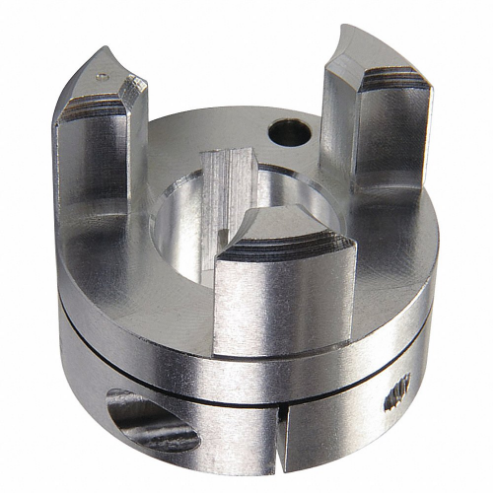

RULAND MANUFACTURING MJCC51-24-A 24mm Jaw Coupling Hub, Aluminum, Clamp Style With Keyway, 50.8mm OD, 20.8mm Lg.
51 mm
24 mm
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€322.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 24 mm |
| Bore Tolerance | 0 mm to +0.05 mm |
| Bore Type | Round Bore With Keyway |
| Coupling Overall Length | 61 mm |
| Coupling Size | MJC51 |
| Fail Safe | Yes |
| For Shaft Type | Keyed |
| Full Bearing Support Required | Yes |
| Hub Dia. | 50.8 mm |
| Hub Diameter | 50.8 mm |
| Hub Material | Aluminum |
| Hub Material Finish | Bright |
| Hub Material Grade | 2024 |
| Hub Projection | 20.8 mm |
| Included Screws | (1) Hex Socket Cap Screw |
| Jaw Profile | Curved |
| Keyway Depth | 3.3 mm |
| Keyway Size | 3.3 mm x 8 mm |
| Keyway Width | 8 mm |
| Length Through Bore | 20.8 mm |
| Max. Operating Temp. | 82°C |
| Max. Speed | 8000 RPM |
| Min. Operating Temp. | -23°C |
| Number Of Locking Screws | 1 |
| Outside Dia. | 50.8 mm |
| Overall Coupling Length | 61 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M5 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 5.33 |
| Country of Origin | US |
Product Variants
| Model | Keyway Size | Outside Dia. | Coupling Size | Bore Dia. | Overall Coupling Length | Bore Tolerance | Length Through Bore | Hub Material Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJCC70-35-A | 3.3 mm x 10 mm | 69.9 mm | MJC70 | 35 mm | 33 mm | 0 mm to 0.03 mm | 33 mm | 2024 | €312.94 | |
| MJCC70-30-A | 3.3 mm x 8 mm | 69.9 mm | MJC70 | 30 mm | 33 mm | 0 mm to 0.03 mm | 33 mm | 2024 | €312.94 | |
| MJCC80-30-A | 3.3 mm x 8 mm | 79.4 mm | MJC80 | 30 mm | 40.4 mm | 0 mm to 0.03 mm | 40.4 mm | 2024 | €359.89 | |
| MJCC80-25-A | 3.3 mm x 8 mm | 79.4 mm | MJC80 | - | 40.4 mm | 0 mm to 0.03 mm | 40.4 mm | 2024 | €359.89 | |
| MJCC80-40-A | 3.3 mm x 12 mm | 79.4 mm | MJC80 | 40 mm | 40.4 mm | 0 mm to 0.03 mm | 40.4 mm | 2024 | €359.89 | |
| MJCC80-35-A | 3.3 mm x 10 mm | 79.4 mm | MJC80 | 35 mm | 40.4 mm | 0 mm to 0.03 mm | 40.4 mm | 2024 | €359.89 | |
| MJCC80-45-A | 3.3 mm x 12 mm | 79.4 mm | MJC80 | 45 mm | 40.4 mm | 0 mm to 0.03 mm | 40.4 mm | 2024 | €359.89 |
