RULAND MANUFACTURING MCPRD56-18-A Controlflex Coupling Hub, 1 Degree Angular Misalignment, 1 mm Axial Motion
Item: CT9HGGModel: MCPRD56-18-ACross Ref: 805KF7
7 In Stock
56 mm
18 mm
Ships within 2 days via
10.00% off
€58.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hub |
| Angular Misalignment | 1° |
| Application | Encoders, Servo, Tachometers |
| Axial Motion | 1 mm |
| Bore Dia. | 18 mm |
| Bore Dia. Tolerance | 0.02 mm to 0.06 mm |
| Bore Diameter Tolerance | 0.06 mm to 0.02 mm |
| Bore Type | Round Bore |
| Compatible Center Element Manufacturer Part No. | CPFRG35/56-AT |
| Coupling Outside Dia. | 56 mm |
| Coupling Overall Length | 56.5 mm |
| Coupling Size | MCPRD56 |
| Features | Light Weight |
| Full Bearing Support Required | Yes |
| Hub Material | Aluminum |
| Hub Material Finish | Clear Anodized |
| Hub Material Grade | 6082 |
| Hub Type | Double Insert |
| Hub Width | 15 mm |
| Included Screws | Clamp Screw |
| Max. Speed | 10000 RPM |
| Maximum Operating Temperature | 80°C |
| Maximum Shaft Penetration | 28.4 mm |
| Minimum Operating Temperature | -30°C |
| Number Of Locking Screws | 1 |
| Overall Coupling Length | 56.5 mm |
| Parallel Misalignment | 1.5 mm |
| Rated Torque | 14 N-m |
| Screw Location From Center | 19.3 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Metric |
| Torsional Stiffness | 14.4 N-m/deg. |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 5.69 |
| Ship width (cm) | 5.59 |
| Country of Origin | DE |
Product Variants
| Model | Max. Speed | Rated Torque | Torsional Stiffness | Coupling Size | Bore Dia. | Hub Width | Overall Coupling Length | Coupling Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

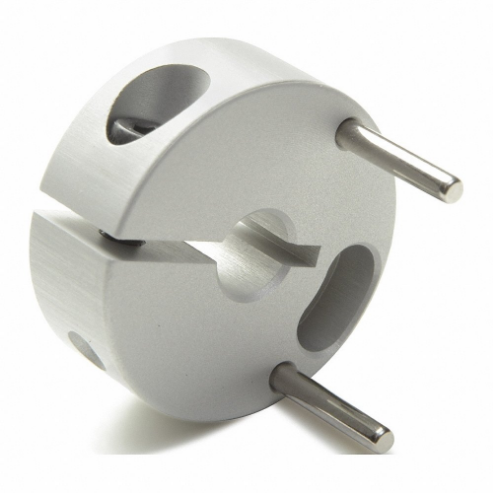

| MCPRD19-6-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 6 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |

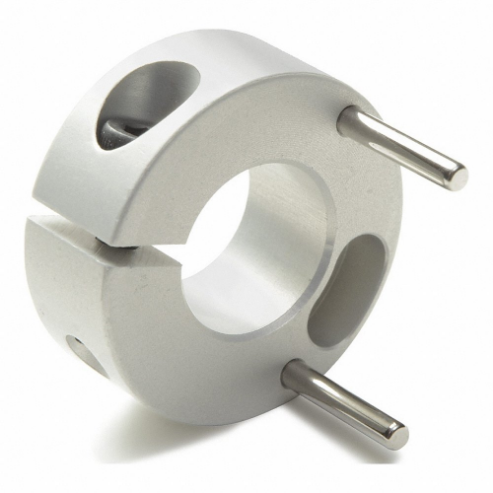

| MCPRD19-10-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 10 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-8-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 8 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-3-A | - | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 3 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-5-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 5 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-4-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 4 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD25-6-A | 22000 RPM | 1.4 N-m | 1.3 N-m/deg. | MCPRD25 | 6 mm | 9.5 mm | 31 mm | 31 mm | €29.51 |
