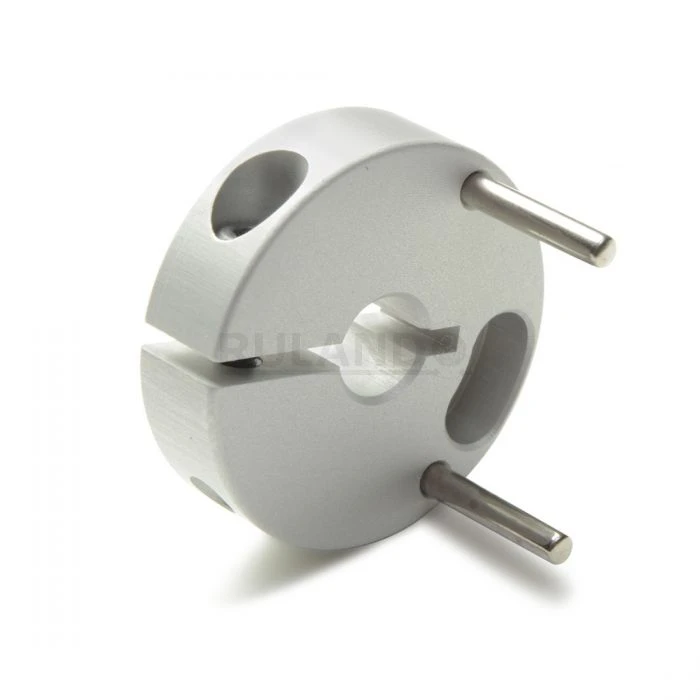

RULAND MANUFACTURING MCPRD19-7-A Controlflex Coupling Hub, 7mm Bore, 19.0mm O.D., 20.0mm Length
Item: DK6QGPModel: MCPRD19-7-A
7 In Stock
19 mm
7 mm
Ships within 2 days via
€29.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 1° |
| Axial Motion | 0.3 mm |
| B1 Max Shaft Penetration | 5.6 mm |
| Balanced Design | Yes |
| Bore (b1) | 7 mm |
| Bore Tolerance | -0.01 mm to +0.05 mm |
| Finish | Clear Anodized |
| Finish Specification | Clear Anodized |
| Forged Clamp Screw | #2-56 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 5/64" |
| Hub Width (lh) | 5.64 mm |
| Length (l) | 0.787" |
| Material Specification | 6082 Aluminum Bar |
| Max. Speed | 25000 RPM |
| Number Of Screws | 1 EA |
| Outer Diameter | 0.748" |
| Parallel Misalignment | 0.4 mm |
| Peak Torque | 1.4 N-m |
| Rated Torque | 0.6 N-m |
| Recommended Inserts | CPFRG12/19-AT |
| Screw Finish | Black Oxide |
| Screw Location (r) | 6.4 mm |
| Screw Material | Alloy Steel |
| Seating Torque | 0.4 N-m |
| Space Between Hubs (ls) | 0.347" |
| Temperature | -22°F to 175°F |
| Torsional Stiffness | 0.56 N-m/deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship height (cm) | 1.9 |
| Ship length (cm) | 2 |
| Ship width (cm) | 1.9 |
| Country of Origin | DE |
Product Variants
| Model | Max. Speed | Rated Torque | Torsional Stiffness | Coupling Size | Bore Dia. | Hub Width | Overall Coupling Length | Coupling Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCPRD19-6-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 6 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-10-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 10 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-8-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 8 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-3-A | - | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 3 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-5-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 5 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD19-4-A | 25000 RPM | 0.6 N-m | 0.56 N-m/deg. | MCPRD19 | 4 mm | 5.6 mm | 20 mm | 20 mm | €32.80 | |
| MCPRD25-6-A | 22000 RPM | 1.4 N-m | 1.3 N-m/deg. | MCPRD25 | 6 mm | 9.5 mm | 31 mm | 31 mm | €29.51 |
