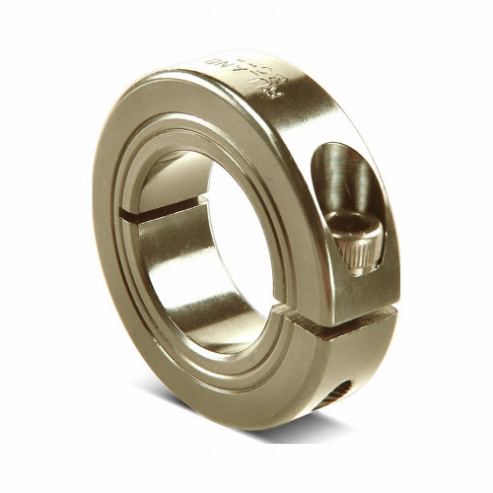

RULAND MANUFACTURING MCL-5-FZ 5mm One-Piece Shaft Collar, Zinc Plated Steel, Clamp Style, 16mm OD, 9mm Wd.
Item: CT9MCJModel: MCL-5-FZCross Ref: 805DE9
7 In Stock
Grade 1215
Carbon Steel
5 mm
Zinc Plated
Ships within 2 days via
10.00% off
€14.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 5 mm |
| Bore Tolerance | 0.012 mm to 0.05 mm |
| Clearance Dia. | 20.8 mm |
| Collar Material | Carbon Steel |
| Collar Material Finish | Zinc Plated |
| Collar Width | 9 mm |
| Construction | One Piece |
| For Shaft Dia. | 5 mm |
| For Shaft Type | Round |
| Included Screws | Clamp Screw |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 16 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 8 mm |
| Screw Location From Center | 5.51 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Zinc Plated |
| Screw Seating Torque | 2.1 N-m |
| Screw Thread Size | M3 x 8 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 0.9 |
| Ship width (cm) | 0.9 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Collar Material | Outside Dia. | Clearance Dia. | Screw Material | Collar Width | Screw Location From Center | Shaft Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MCL-10-A | 10 mm | Aluminum | 24 mm | 26.3 mm | Alloy Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €14.13 | |
 |
MCL-10-F | 10 mm | Carbon Steel | 24 mm | 26.3 mm | Alloy Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €11.79 | |
 |
MCL-10-SS | 10 mm | Stainless Steel | - | 26.3 mm | Stainless Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €29.66 | |
|
MCL-11-A | 11 mm | Aluminum | 28 mm | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €14.75 | |
|
MCL-11-F | 11 mm | Carbon Steel | 28 mm | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €12.35 | |
|
MCL-11-SS | 11 mm | Stainless Steel | 28 mm | 32 mm | Stainless Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €30.65 | |
|
MCL-12-A | 12 mm | Aluminum | 28 mm | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €15.87 |
