TSUBAKI AS Stainless Metric Series Power-Locks

Filter

Style	Model	Transmissible Torque	P-shaft Contact Pressure	P-contact Pressure-hub Bore	Transmissible Thrust	D-hub Counter I.d.	L	Shaft Outside Dia.	Price

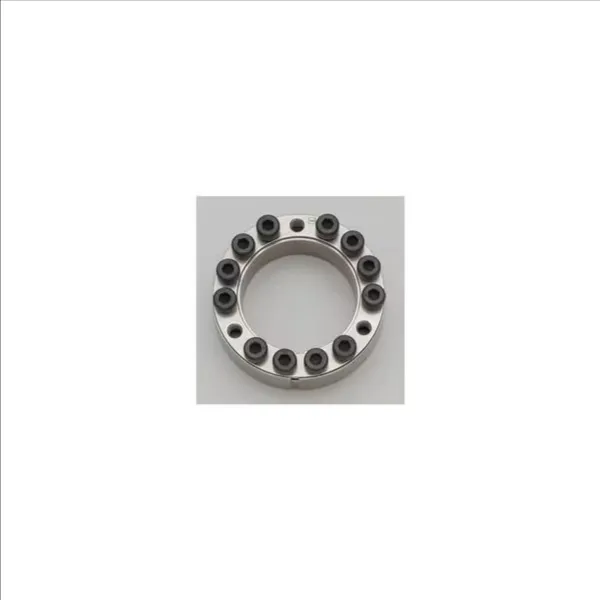

A	PL019X047SS	145 lbs.-ft.	25382 psi	10443 psi	4840 lbs.	1.85"	0.787	0.748"	€314.32
A	PL020X047SS	159 lbs.-ft.	24222 psi	10443 psi	4840 lbs.	1.85"	0.787	-	€314.32
B	PL022X047SS	173 lbs.-ft.	22046 psi	10443 psi	4840 lbs.	1.85"	0.787	0.866"	€314.32
B	PL024X050SS	253 lbs.-ft.	26977 psi	12909 psi	6380 lbs.	1.969"	0.787	0.945"	€327.41
A	PL025X050SS	260 lbs.-ft.	25817 psi	12909 psi	6380 lbs.	1.969"	0.787	0.984"	€327.41
B	PL028X055SS	297 lbs.-ft.	23206 psi	11748 psi	6380 lbs.	2.165"	0.787	1.102"	€333.97
A	PL030X055SS	318 lbs.-ft.	21611 psi	11748 psi	6380 lbs.	2.165"	0.787	1.181"	€333.97
A	PL035X060SS	463 lbs.-ft.	23206 psi	13489 psi	7920 lbs.	2.362"	0.787	1.378"	€353.63
B	PL038X065SS	550 lbs.-ft.	22771 psi	13779 psi	8800 lbs.	2.559"	0.787	1.496"	€373.26
B	PL040X065SS	586 lbs.-ft.	21611 psi	13779 psi	8800 lbs.	2.559"	0.787	1.575"	€373.26
B	PL042X075SS	907 lbs.-ft.	27123 psi	15229 psi	13200 lbs.	2.953"	0.945"	1.654"	€426.86
B	PL045X075SS	981 lbs.-ft.	25237 psi	15229 psi	13200 lbs.	2.953"	0.945"	1.772"	€426.86
B	PL048X080SS	1040 lbs.-ft.	23787 psi	14214 psi	13200 lbs.	3.15"	0.945"	1.89"	€446.27
A	PL050X080SS	1092 lbs.-ft.	22771 psi	14214 psi	13200 lbs.	3.15"	0.945"	1.969"	€446.27
B	PL055X085SS	1468 lbs.-ft.	25237 psi	16390 psi	16060 lbs.	3.346"	0.945"	2.165"	€465.67
B	PL060X090SS	1601 lbs.-ft.	23206 psi	15519 psi	16060 lbs.	3.543"	0.945"	2.362"	€491.54
B	PL065X095SS	1888 lbs.-ft.	23351 psi	15954 psi	17600 lbs.	3.74"	0.945"	2.559"	€517.42
