RULAND MANUFACTURING CLD-4-A 1/4 Inch D-Bore Shaft Collar, Aluminum, One-Piece Clamp Style, 5/8 Inch OD, 0.281 Inch Wd.
Item: CT9HRLModel: CLD-4-ACross Ref: 805CM3
7 In Stock
Ships within 2 days via
10.00% off
€46.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 1/4" |
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | D |
| Clearance Dia. | 0.77" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 5/8" |
| Collar Width | 9/32" |
| Construction | One Piece |
| For Shaft Dia. | 1/4" |
| For Shaft Diameter | 1/4" |
| Grade | Grade 2024 |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 225°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 5/8" |
| Screw Location From Center | 0.21" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 15 lbs.-in. |
| Screw Thread Size | #4-40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship height (cm) | 1.1 |
| Ship length (cm) | 2.8 |
| Ship width (cm) | 2.8 |
| Country of Origin | US |
Product Variants
| Model | Collar Material | Bore Dia. | Outside Dia. | Screw Material | Collar Width | Collar Material Finish | Screw Location From Center | Included Screws | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

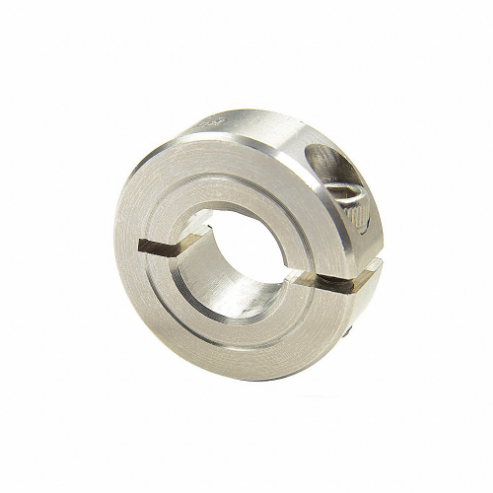

| CLD-12-SS | Stainless Steel | 3/4" | 1 1/2" | Stainless Steel | 1/2" | Bright | 0.55" | (1) Hex Socket Cap Screw | €95.64 | |

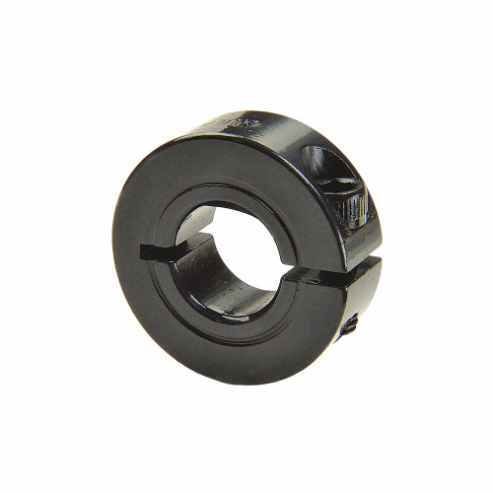

| CLD-16-F | Carbon Steel | - | 1 3/4" | Alloy Steel | 1/2" | Black Oxide | 0.68" | (1) Hex Socket Cap Screw | €70.70 | |
| CLD-16-SS | Stainless Steel | 1" | 1 3/4" | Stainless Steel | 1/2" | Bright | 0.68" | (1) Hex Socket Cap Screw | €110.74 | |
| CLD-4-F | Carbon Steel | 1/4" | 5/8" | Alloy Steel | 9/32" | Black Oxide | 0.21" | (1) Hex Socket Cap Screw | €47.38 | |
| CLD-4-SS | Stainless Steel | 1/4" | 5/8" | Stainless Steel | 9/32" | Bright | 0.21" | (1) Hex Socket Cap Screw | €64.25 | |
| CLD-8-F | Carbon Steel | 1/2" | - | Alloy Steel | 13/32" | Black Oxide | 0.41" | (1) Hex Socket Cap Screw | €49.69 | |
| CLD-8-SS | Stainless Steel | 1/2" | - | Stainless Steel | 13/32" | Bright | 0.41" | (1) Hex Socket Cap Screw | €78.50 |
