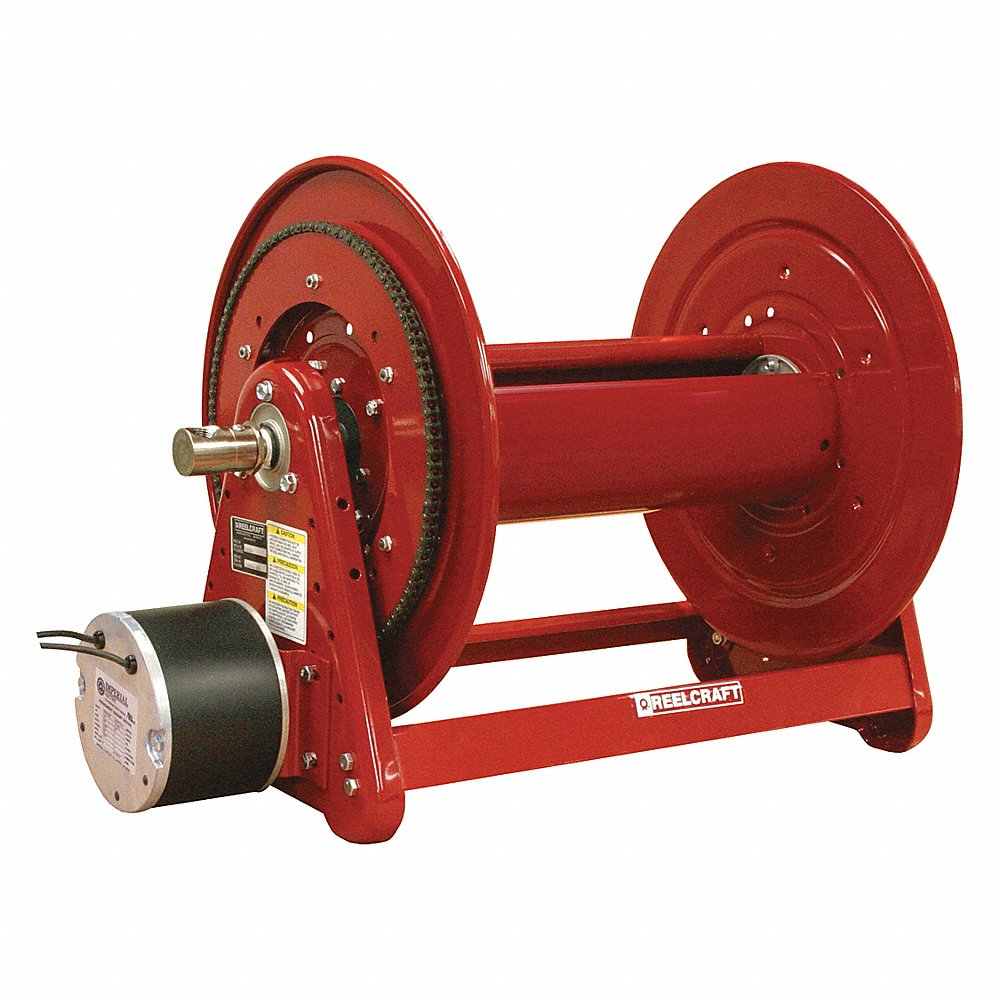

REELCRAFT EA32118 L12D Motor Driven Hose Reel, 12 VDC, Inner Diameter 1/2 Inch, Hose Length 325 Feet
Get it by Tuesday, Sep 1
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Dimensions A | 20 1/4" |
| Dimensions B | 17.75" |
| Dimensions C | 9" |
| Dimensions D | 21.75" |
| Dimensions E | 29 5/8" |
| Dimensions F | 18" |
| Drive Type | Motor Driven |
| Enclosed | No |
| Features | Heavy Duty, Bolted Construction |
| For Dual Hose | No |
| Hazardous Location | No |
| Height | 20 1/4" |
| Hose Capacity | 325 ft. |
| Hose Included | No |
| Hose Inside Dia. | 1/2" |
| Hose Length | 325 ft. |
| Hose Outside Dia. | 0.75" |
| Hose Reel Primary Application | Air, Fire Hose, Garden Hoses, Hydraulic Oil, Nitrogen, Oil, Washdown, Water |
| Hose Reel Type | Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Hp | 1/3 hp |
| Included Gooseneck | Yes |
| Included Hose | No |
| Included Leader Hose | No |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Latch Type | Locking |
| Length | 17 3/4" |
| Max. Operating Pressure | 1000 psi |
| Max. Operating Temp. | 210°F |
| Max. Temp. | 210°F |
| Min. Operating Pressure | 0 psi |
| Min. Operating Temp. | -40°F |
| Motor Type | Magnetic |
| Motor Voltage | 12V DC |
| Mount Base Height | 12 5/8" |
| Mount Base Width | 23" |
| Mounting Hole Center To Center Height | 9" |
| Mounting Hole Center To Center Width | 21 3/4" |
| Overall Height | 20 1/4" |
| Overall Length | 17 3/4" |
| Overall Width | 29 5/8" |
| Pressure | 1000 psi |
| Product Datasheet | reelcraft-ca32112l.pdf |
| Reel Color | Red |
| Reel Dia. | 6 3/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Outlet Size | 1/2" |
| Reel Outlet Type | FNPT |
| Reel Width | 18" |
| Seal Material | Nitrile |
| Series | 30000 Series |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Iron |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Width | 29 5/8" |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 56.52 |
| Ship length (cm) | 85.73 |
| Ship width (cm) | 45.72 |
| Country of Origin | US |
Product Details:
,Reelcraft Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure the longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control., , ,Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel., ,Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion., ,Motor options – Multiple motor options provide an easy method to rewind long lengths of hose., ,The model is supplied with a 12 V DC motor., ,Made in the USA, ,
Documentation:
Product Variants
| Product | Model | Overall Width | Max. Temp. | Hose Inside Dia. | Drive Type | Pressure | Swivel Size/type | Max. Operating Pressure | Hose Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EA33128L12D | 38 5/8" | 250°F | 3/4" | Motor Driven | - | - | 1000 psi | 275 ft. | €1,736.52 | |
 |
CA38106M | 19 3/4" | 400°F | 3/8" | Hand Crank | - | - | 5000 psi | 100 ft. | €717.66 | |
 |
CA38112M | 25 3/4" | 400°F | 3/8" | Hand Crank | - | - | 5000 psi | 300 ft. | €668.15 | |
 |
CA32112M | 25 3/4" | 250°F | 1/2" | Hand Crank | - | - | 1000 psi | 200 ft. | €638.10 | |
|
EA32118M12D | 29 5/8" | 250°F | 1/2" | Motor Driven | - | - | 3000 psi | 325 ft. | €1,542.07 | |
 |
EA32112M12D | 23 7/8" | 250°F | 1/2" | Motor Driven | - | - | 3000 psi | 200 ft. | €1,516.80 | |
 |
BA36112 L | - | 210°F | 1/4" | - | 200 psi | - | - | - | - | RFQ
|
