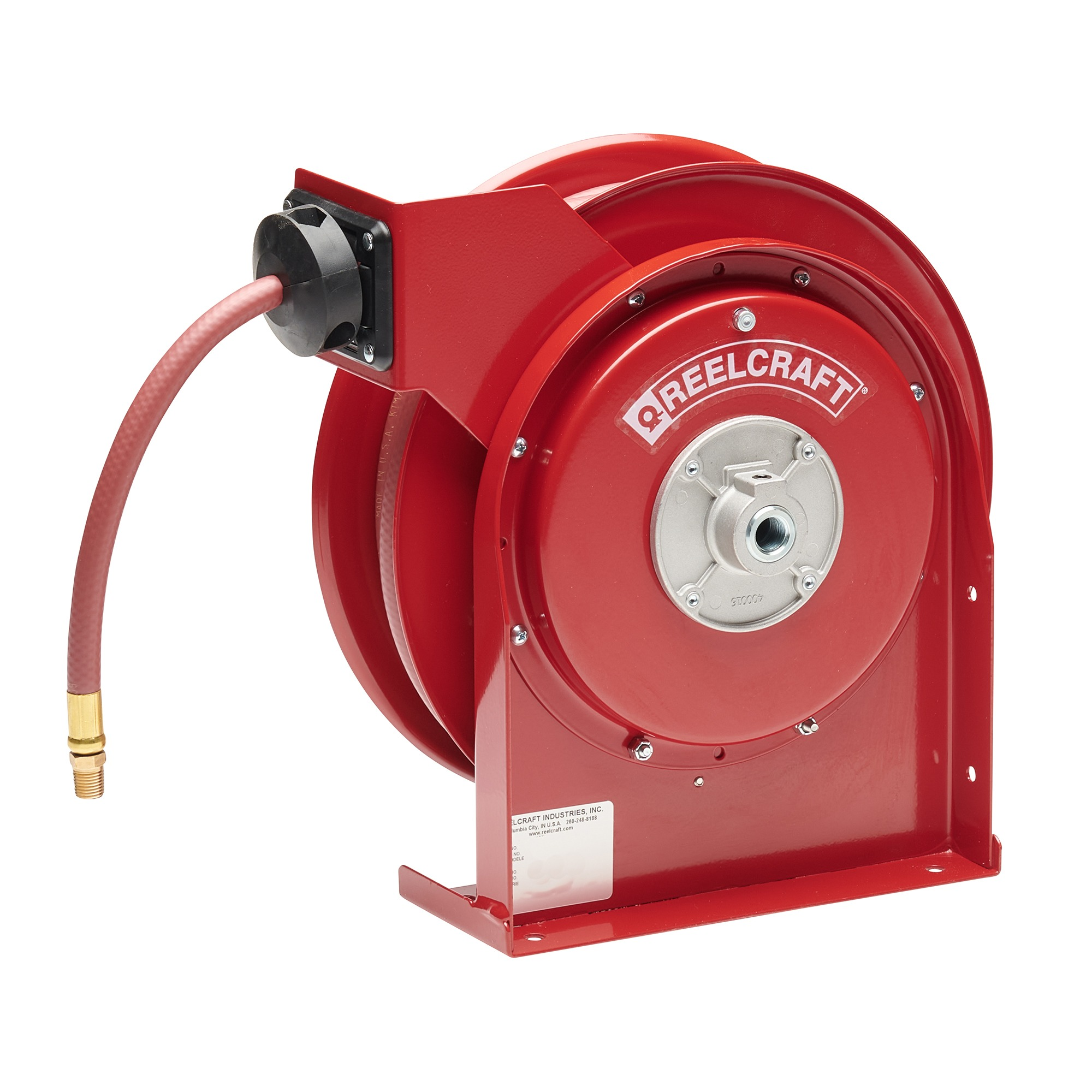

REELCRAFT 4435 OLP Hose Reel, Inner Diameter 1/4 Inch, 300 Psi, Hose Length 35 Feet
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€453.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion Resistant | Yes |
| Dimensions A | 12 7/8" |
| Dimensions B | 12.625" |
| Dimensions C | 8" |
| Dimensions D | 2.5" |
| Dimensions E | 5 5/8" |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Durable And Compact For A Wide Range Of Applications |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 12 7/8" |
| Hose | Yes |
| Hose Capacity | 35 ft. |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/4" MNPT |
| Hose End Size | 1/4" |
| Hose End Type | MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/4" |
| Hose Length | 35 ft. |
| Hose Outside Dia. | 0.475" , 1/2" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Included | Hose, Bumper |
| Included Hose | Yes |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Inlet Size | 3/8" |
| Inlet Type | FNPT |
| Latch Type | Spring Loaded |
| Length | 12 5/8" |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | 32°F |
| Mount Base Height | 9 21/32" |
| Mount Base Width | 4" |
| Mount Hole Dia. | 5/16" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 2 1/2" |
| No. Of Guide Arms | 1 |
| No. Of Mount Holes | 4 |
| Overall Height | 12 7/8" |
| Overall Length | 12 5/8" |
| Overall Width | 5 5/8" |
| Pedestal Type | Single Pedestal |
| Pressure | 300 psi |
| Product Datasheet | reelcraft-4400olp.pdf |
| Reel Color | Red |
| Reel Dia. | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Outlet Size | 1/4" |
| Reel Outlet Type | FNPT |
| Reel Width | 5 5/8" |
| Series | 4000 Series |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/4" |
| Swivel Inlet Thread Size | 1/4"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 5 5/8" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 13.65 |
| Country of Origin | US |
Product Details:
,Series 4000 reels are durable and compact for a wide range of applications with critical space requirements., , ,Hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,The bent tube swivel design offers a smooth hose transition onto the spool, ,Swivel is nested inside the spool for protection from impact and the environment, ,The reliable speed latch allows for positive locking of the spool in two positions per rotation, ,All steel components are powder coated for maximum corrosion resistance, ,Robotically welded steel base offers maximum strength and consistent quality, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Swivel Material | Overall Width | Mount Base Height | Hose Capacity | Mount Hole Dia. | Reel Width | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4420 OLP | 1/4" | Brass | 5 5/8" | 9 21/32" | 20 ft. | 5/16" | 5 5/8" | 300 psi | €431.75 | |
|
4625 OLP | 3/8" | Brass | 5 5/8" | 9 21/32" | 25 ft. | 5/16" | 5 5/8" | 300 psi | €461.58 | |
 |
4617 OLP | 3/8" | Brass, Copper | - | - | - | - | - | 300 psi | - | RFQ
|
|
4425 OLP | 1/4" | Brass | 5 3/8" | 9 5/8" | 25 ft. | 3/8" | 5 3/8" | 300 psi | €477.17 | |
 |

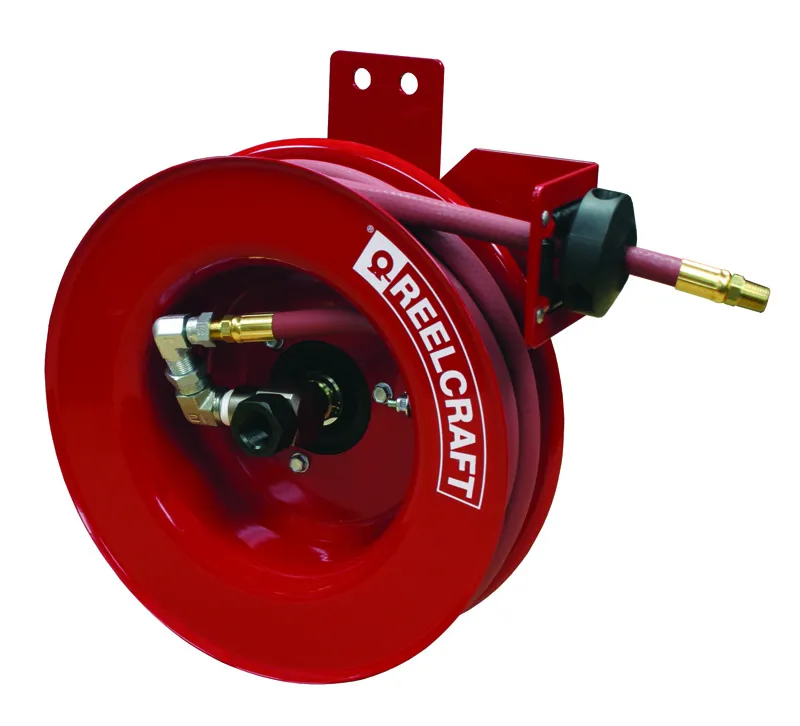

4425 OLPSMR | 1/4" | Steel | - | - | - | - | - | 300 psi | - | RFQ
|
 |
4625 OLPSMR | 3/8" | Brass | - | - | - | - | - | - | - | RFQ
|
|
B4425 OLP | 1/4" | Brass, Copper | - | - | - | - | - | 300 psi | - | RFQ
|
