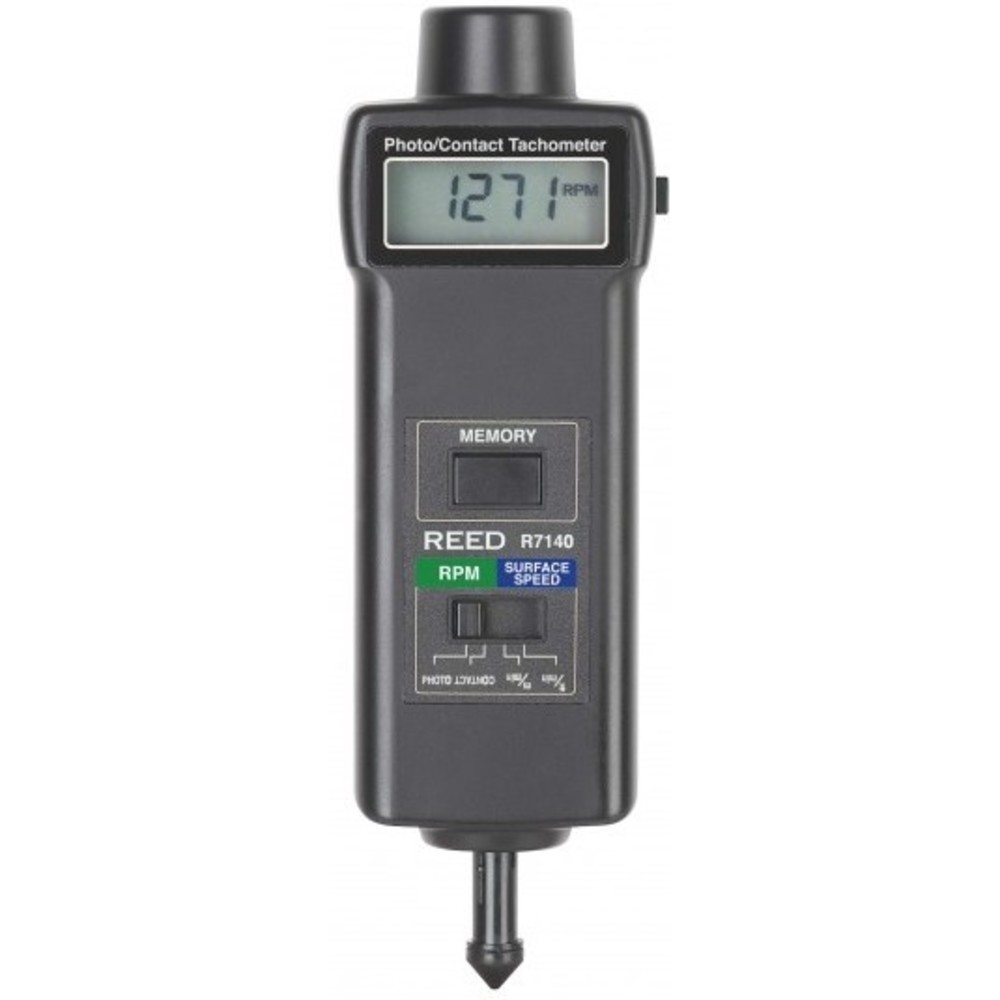

REED INSTRUMENTS R7140 Contact/Photo Tachometer, Combination, Non Contact Range 300mm
Item: CD4DLWModel: R7140Cross Ref: 357R19
7 In Stock
Ships within 2 days via
10.00% off
€360.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Handheld Tachometer |
| Auto Power Off | Yes |
| Basic Accuracy | +/-(0.05% + 1 dgt.) |
| Battery Size | AA |
| Battery Type | AA |
| Calibration Certificate | Not Included |
| Calibration Certificate Type | Available Separately |
| Contact Adaptors Included | Cone Tip |
| Contact Type | Contact, Non Contact |
| Digital Display Screen Type | LCD |
| Dimensions | 8 1/2" x 2 3/5" x 1 1/2" |
| Display Size | 5 Digit |
| Display Type | LCD |
| Features | Internal Memory Holds Last Reading For 5 Mins, Provides RPM Measurements Of Rotating Objects And Surface Speed Measurements |
| Includes | Carrying Case, Funnel Adapter, Cone Adapters, Reflective Tape, Wheel Adapter |
| Indicator | Low Battery |
| Internal Memory | Max, Min, Last |
| Light Source | Incandescent |
| Low Battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Contact Rpm | 19999 RPM |
| Maximum Non-contact Distance | 1 ft. |
| Maximum Non-contact Rpm | 99999 RPM |
| Maximum Operating Temperature | 122°F |
| Maximum Velocity Measured | 1999.9 mpm |
| Minimum Contact Rpm | 0.5 RPM |
| Minimum Non-contact Distance | 1 ft. |
| Minimum Non-contact Rpm | 5 RPM |
| Minimum Operating Temperature | 32°F |
| Minimum Velocity Measured | 0.17 FPM |
| Number Of Batteries Required | 4 |
| Number Of Digits | 5 |
| Operating Humidity | 10% to 90% |
| Operating Temp. | 32°F to 122°F |
| Response Time | Less Than 1 Sec. |
| Rpm Accuracy | +/-0.05% Of Reading +1 Digit |
| Rpm Range (contact) | 0.5-19999 RPM |
| Rpm Range (photo) | 5-99999 RPM |
| Rpm Resolution | 0.1 RPM |
| Sampling Time | 1 sec. |
| Storage Temp. | -4°F to +140°F |
| Surface Speed Range | 0.05 mpm to 1999.9 mpm |
| Target Distance | 1 ft. |
| Visible Indicator | Yes, Light |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Rpm Accuracy | Resolution | Calibration Certificate | Rpm Resolution | Contact / Noncontact | Noncontact Rpm Range | Display Type | Indicator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

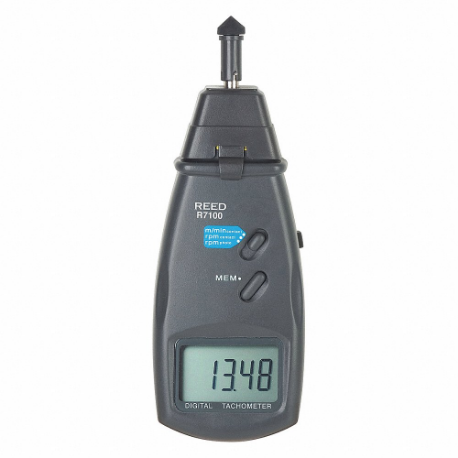

R7100 | +/-0.05% + 1 Digit | Photo 0.1 RPM (999.9)/1 RPM (>1000), Contact 0.1 RPM (999.9)/1 RPM (>1000), Surface 0.01 M/Min (99.99)/0.1 Mpm (>100) | Not Included | 0.1 RPM | Contact, Noncontact | 2.5-99999 RPM | LCD | Low Battery | €218.23 | |
 |

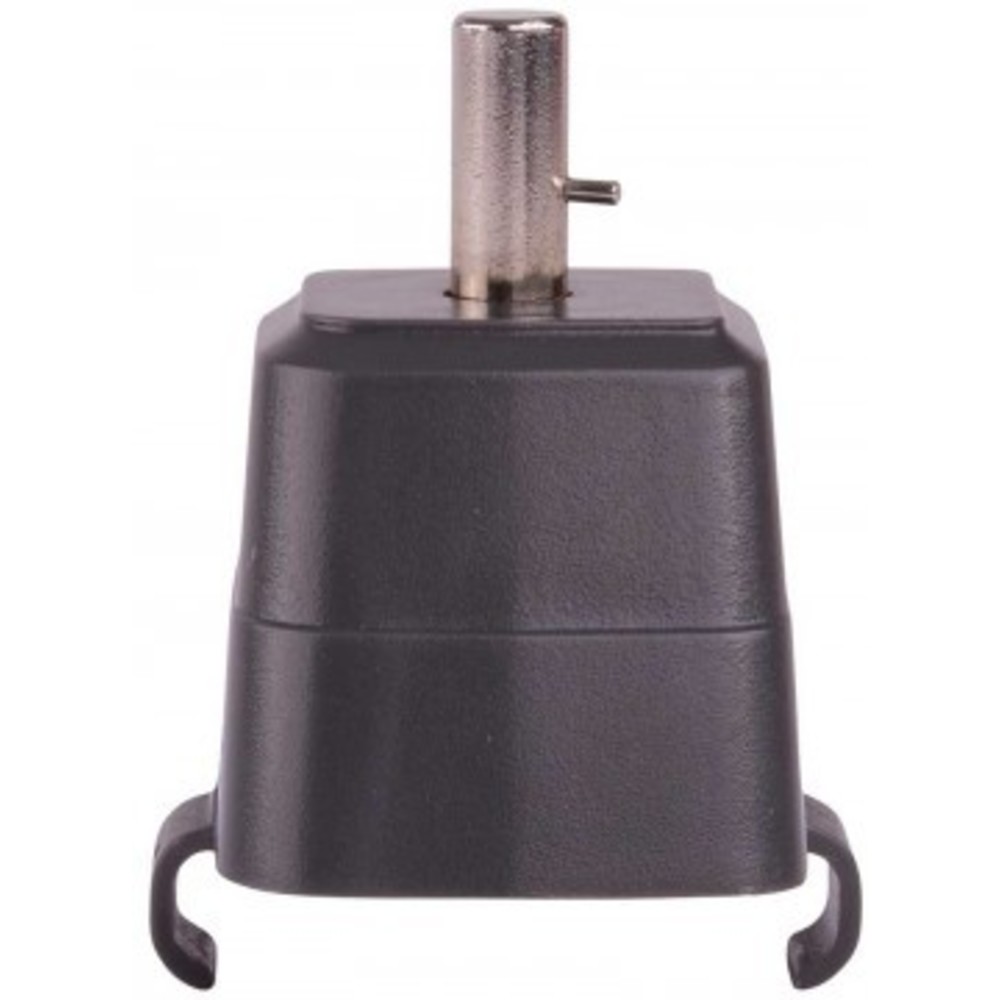

R7100-NIST | - | - | Not Included | - | - | - | - | - | €293.14 | |
|
R7140-NIST | - | - | - | - | - | - | - | - | €435.70 | |
 |
R7150 | +/-0.05% Of Reading +1 Digit | Photo 0.1 RPM (999.9), 1 RPM (>1000), Contact 0.1 RPM (999.9), 1 RPM (>1000), Surface 0.01 M/Min (99.9)/0.1 M/Min (?>=100)/0.01 Ft/Min (999.9)/1 Ft/Min (?>=1000) | Not Included | 0.1 RPM | Contact, Noncontact | - | LCD | Low Battery | €468.90 | |
|
R7150-NIST | - | - | - | - | - | - | - | - | €480.25 |
