REED INSTRUMENTS TM-8811 Ultrasonic Thickness Gauge, Steel, 0.05 To 7.9 Inch
Item: CD4DKNModel: TM-8811Cross Ref: 161F01
7 In Stock
Ships within 2 days via
10.00% off
€531.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ultrasonic Thickness Gauge |
| Accuracy | ±(0.5% + 0.1 mm) |
| Batteries Included | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | AA |
| Battery Type | AA |
| Battery Voltage | 1.5V |
| Calibration Certificate Type | Available Separately |
| Certificate Of Calibration | Not Included |
| Compatible Material | Aluminum, Cast Iron, Copper, Polyethylene, PVC, Quartz Glass, Steel, Zinc |
| Compatible Materials | Steel, Cast Iron, Aluminum, Red Copper, Zinc, Quartz Glass, Polyethylene, PVC, Grey Cast Iron And Nodular Cast Iron |
| Dimensions | 6.3" x 2.7" x 1.25" |
| Display Type | LCD |
| Gauge Type | Standard |
| Includes | Carrying Case, Probe, Ultrasonic Couplant Gel, Ultrasonic Thickness Gauge |
| Low Battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Frequency | 5 MHz |
| Maximum Operating Temperature | 122°F |
| Maximum Thickness Measured | 7.9" |
| Maximum Velocity | 9000 mps |
| Measuring Range | 0.05" to 7.9" |
| Minimum Frequency | 5 MHz |
| Minimum Operating Temperature | 32°F |
| Minimum Thickness Measured | 0.05" |
| Minimum Velocity | 500 mps |
| No. Of Batteries Required | 4 |
| Number Of Batteries Required | 4 |
| Number Of Digits | 4 |
| Number Of Records Stored | 0 |
| Operating Humidity | 20% to 80% |
| Operating Temp. | 32°F to 122°F |
| Power Source | Battery |
| Probe Dia. | 2/5" |
| Probe Length | 36" |
| Probe Operating Temp. | 32°F to 104°F |
| Resolution | 0.001" |
| Sampling Time | Less Than 1 Sec. |
| Storage Temp. | -4°F to +140°F |
| Thickness Measurement Accuracy | -0.5% to +0.5% |
| Thickness Measurement Resolution | 0.001" |
| Velocity Range | 500 mps to 9000 mps |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 16 |
| Ship width (cm) | 6.86 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Records Stored | Display Type | Battery Voltage | Velocity Range | Price | |
|---|---|---|---|---|---|---|---|
 |

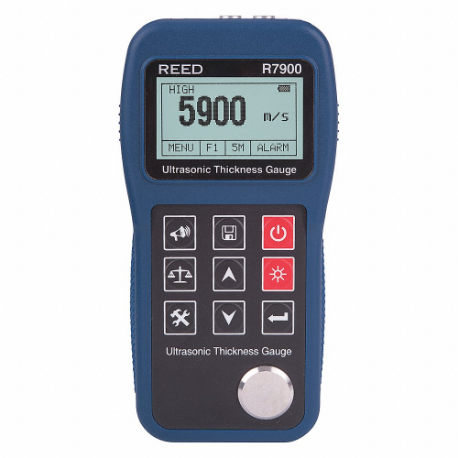

R7900 | - | LCD | 1.5V | - | €1,037.04 | |
|
R7900-NIST | 500 | - | 1.5V | - | €1,228.38 | |
|
TM-8811-NIST | - | - | 1.5V | - | €827.06 | |
 |

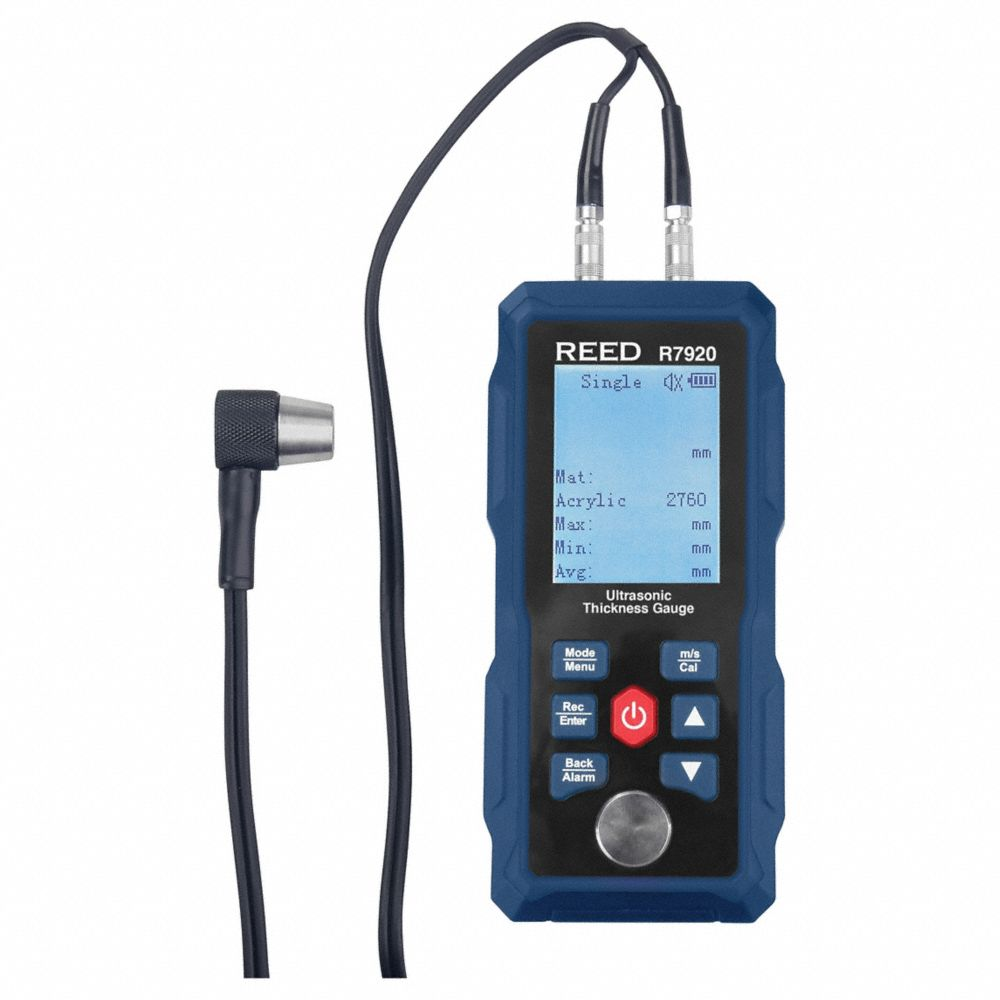

R7920 | - | - | - | - | €685.78 | |
 |

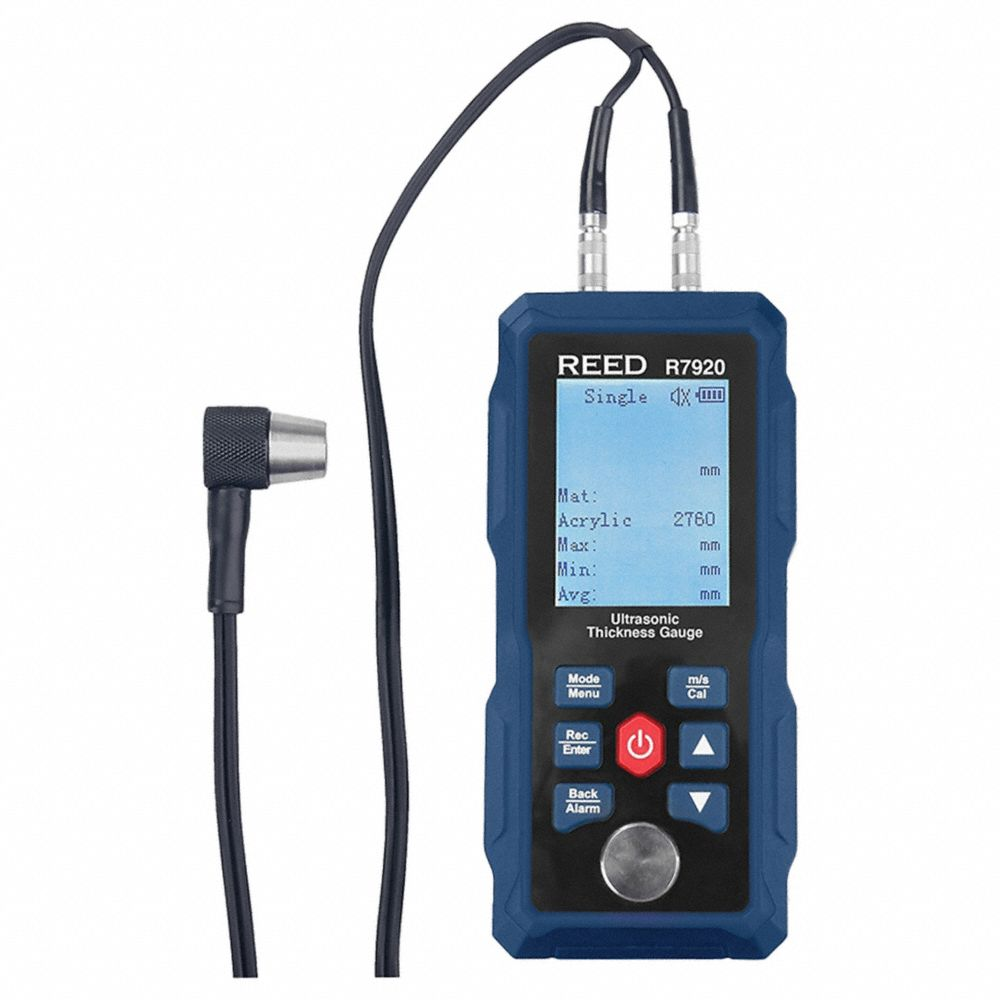

R7920NIST | - | - | - | - | €963.81 |
