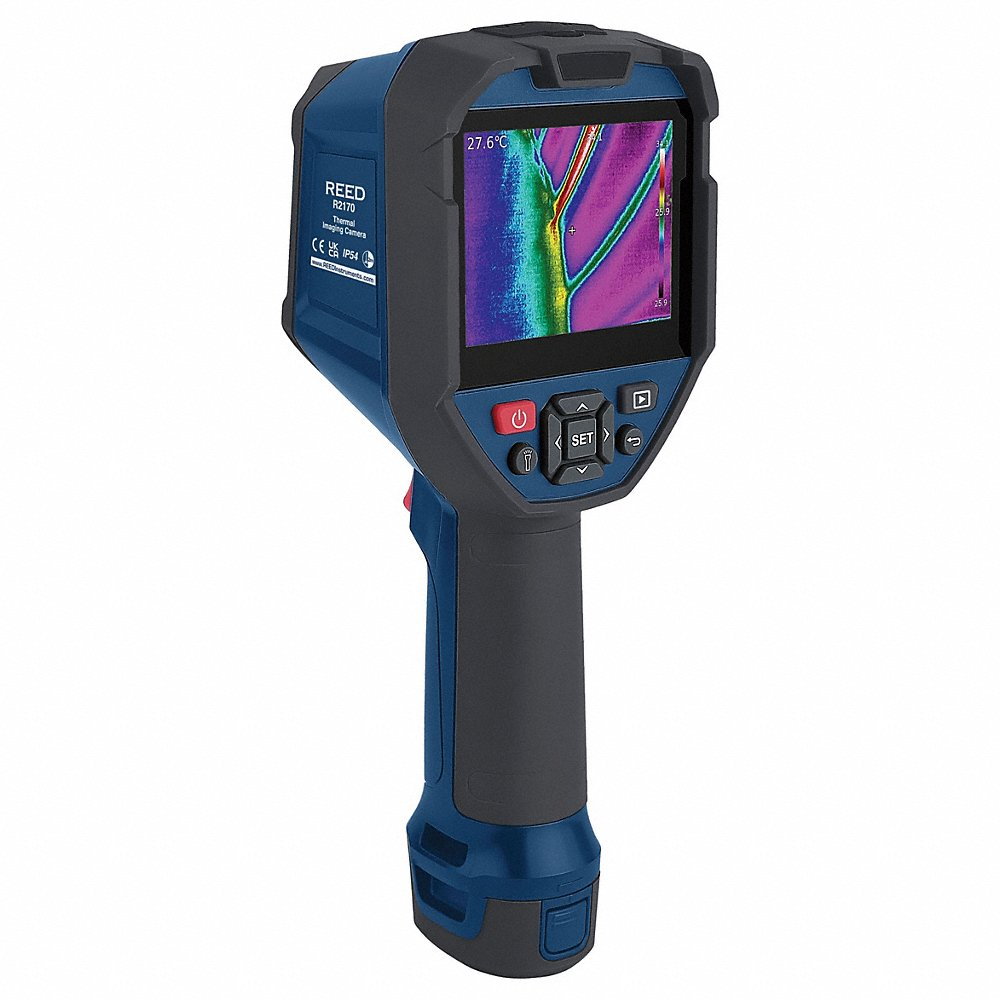

REED INSTRUMENTS R2170 ThermCam, 320x240IR Res, 56x 42FOV
Item: DB2NMPModel: R2170Cross Ref: 817GU3
7 In Stock
Ships within 2 days via
5.00% off
€1,921.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Battery Type | Rechargeable Lithium Ion Battery |
| Calibration Certificate | Available Separately |
| Charging System | In Camera, Battery |
| Charging Time | 4 hrs. |
| Color Palettes | Ironbow, Rainbow, Rainbow Hc, Lava, Red Hot, White Hot, Black Hot |
| Detector Detector Type | Uncooled Vanadium Oxide, Focal Plane Array |
| Detector Ir Resolution | 320 x 240 Pixel |
| Detector Spectral Range | 8 µm to 14 µm |
| Digital Zoom | Yes |
| Dimensions | 10.2" x 3.9" x 3.8" |
| Display | 3.5" Color Ips |
| Display Resolution | 640 x 480 Pixel |
| Emissivity | 0.01 to 1 |
| External Memory | Micro SD Card |
| Focal Length | 4 mm |
| Ifov Spatial Resolution | 3 Mrad |
| Image Capture Frequency | 9 Hz |
| Image Capture Modes | 2 |
| Image Format | JPG |
| Image Measurement Tools | 5 Points, 3 Rectangles, 3 Circles, 1 Line (Add Up to 6) |
| Image Modes | Thermal, Visual Image, Picture In Picture, Fusion |
| Isotherm | Yes |
| Led Flashlight | Yes |
| Low Battery Indicator | Yes |
| Max. Operating Altitude | 6561 ft. |
| Measurement Accuracy | +/-3.6°F Or +/-2% Of Reading, For Ambient Temperature At 77°F |
| Measurement Resolution | 0.1°F |
| Measurement Temp. Range | -40°F to +752°F |
| Min. Focus Distance | 0.01 ft. |
| On-screen Temp. Markers | 3 |
| Operating Humidity | 10% to 95% |
| Operating Temp. | 32°F to 122°F |
| Pc Connectivity | USB Cable |
| Software | Yes |
| Software Functionality | Image Analysis, Live Camera Feed, Report Generation |
| Software Os Compatability | Windows Vista, 7, 8, 10, 11 |
| Storage Humidity Range | 10% to 95% |
| Storage Temp. | 14°F to 140°F |
| Supported Languages | English, French, German, Spanish |
| Temp. Alarm Indicators | High, Low |
| Temp. Span | Automatic, Manual |
| Thermal Sensitivity (netd) | Less Than 65 Mk |
| Tripod Mountable | Yes |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.15 |
| Country of Origin | CN |
