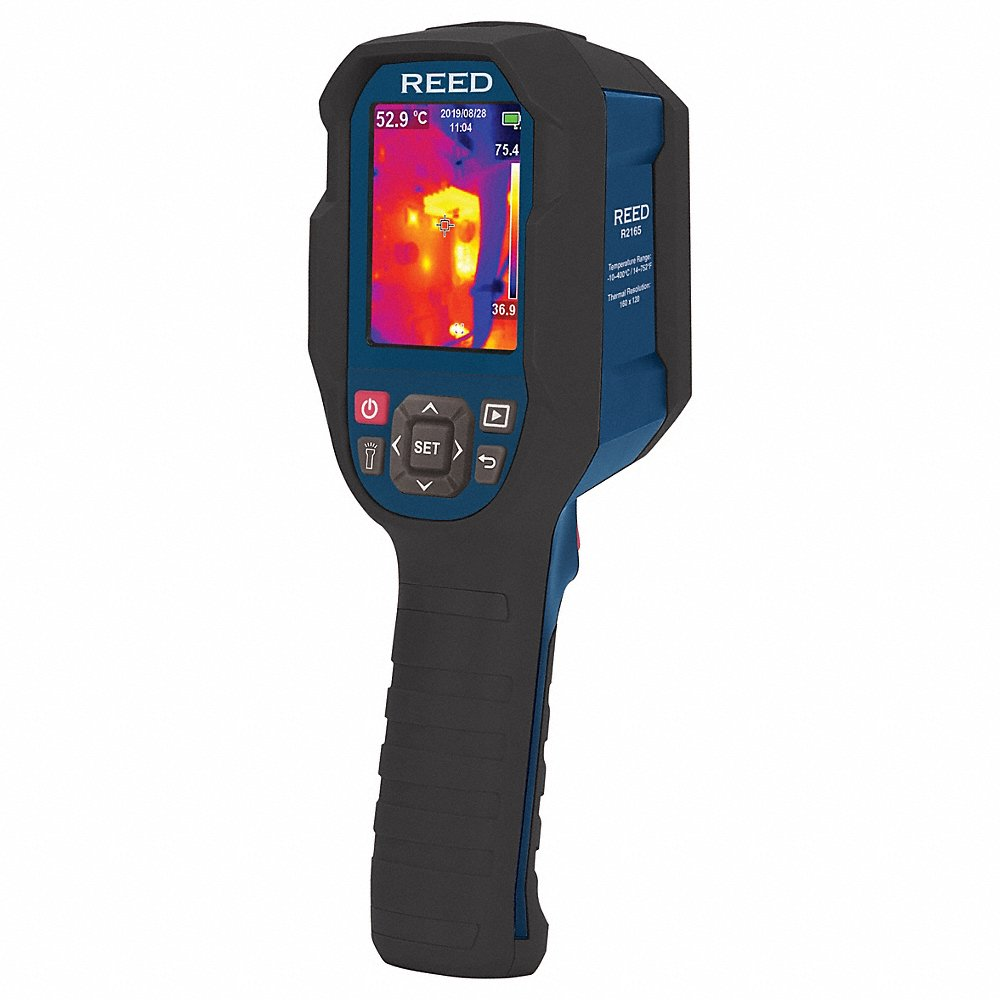

REED INSTRUMENTS R2165 ThermCam, 160x120IR Res, 56x 42FOV
Item: DD2FDGModel: R2165Cross Ref: 817GU1
7 In Stock
Ships within 2 days via
5.00% off
€684.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Battery Type | Rechargeable Lithium Ion Battery |
| Calibration Certificate | Available Separately |
| Center Spot | Yes |
| Charging System | In Camera |
| Charging Time | 4 hrs. |
| Color Palettes | Ironbow, Rainbow, Rainbow Hc, Lava, Red Hot, White Hot, Black Hot |
| Detector Detector Type | Uncooled Microbolometer, Focal Plane Array |
| Detector Spectral Range | 8 µm to 14 µm |
| Digital Camera | Yes |
| Dimensions | 9.3" x 3" x 3.4" |
| Display Resolution | 320 x 240 Pixel |
| Display Type | Color Tft |
| Emissivity | 0.01 to 0.99 |
| External Memory | Micro SD Card |
| Field Of View | 56° x 42° |
| Field Of View (fov) | 56° x 42° |
| Focus | Fixed |
| Hot/cold Detection | Auto Hot, Cold Spot Meter Markers |
| Ifov Spatial Resolution | 6.1 Mrad |
| Image Capture Frequency | 9 Hz |
| Image Format | Bmp |
| Image Modes | Thermal, Visual Image, Thermal Blending |
| Led Flashlight | Yes |
| Low Battery Indicator | Yes |
| Max. Operating Altitude | 6561 ft. |
| Measurement Accuracy | +/-3.6°F Or +/-2% Of Reading, For Ambient Temperature At 77°F |
| Measurement Resolution | 0.1°F |
| Measurement Temp. Range | 14°F to 752°F |
| Min. Focus Distance | 0.82 ft. |
| On-screen Temp. Markers | Center, High Temp, Low Temp, Region Of Interest, Up to 3 Points |
| Operating Humidity | 10% to 90% |
| Operating Temp. | 32°F to 122°F |
| Optimal Focal Distance | 0.82 ft. |
| Pc Connectivity | Usb Cable Type C |
| Software | Yes |
| Software Functionality | Image Analysis, Report Generation, Live Camera Feed |
| Software Os Compatability | Windows 7, 8, 10, 11 |
| Storage Humidity Range | 10% to 90% |
| Storage Temp. | -4°F to +140°F |
| Supported Languages | English, French |
| Temp. Alarm Indicators | High, Low |
| Thermal Sensitivity (netd) | Less Than 50 Mk |
| Tripod Mountable | Yes |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 30.73 |
| Ship length (cm) | 16 |
| Ship width (cm) | 12.95 |
| Country of Origin | CN |
