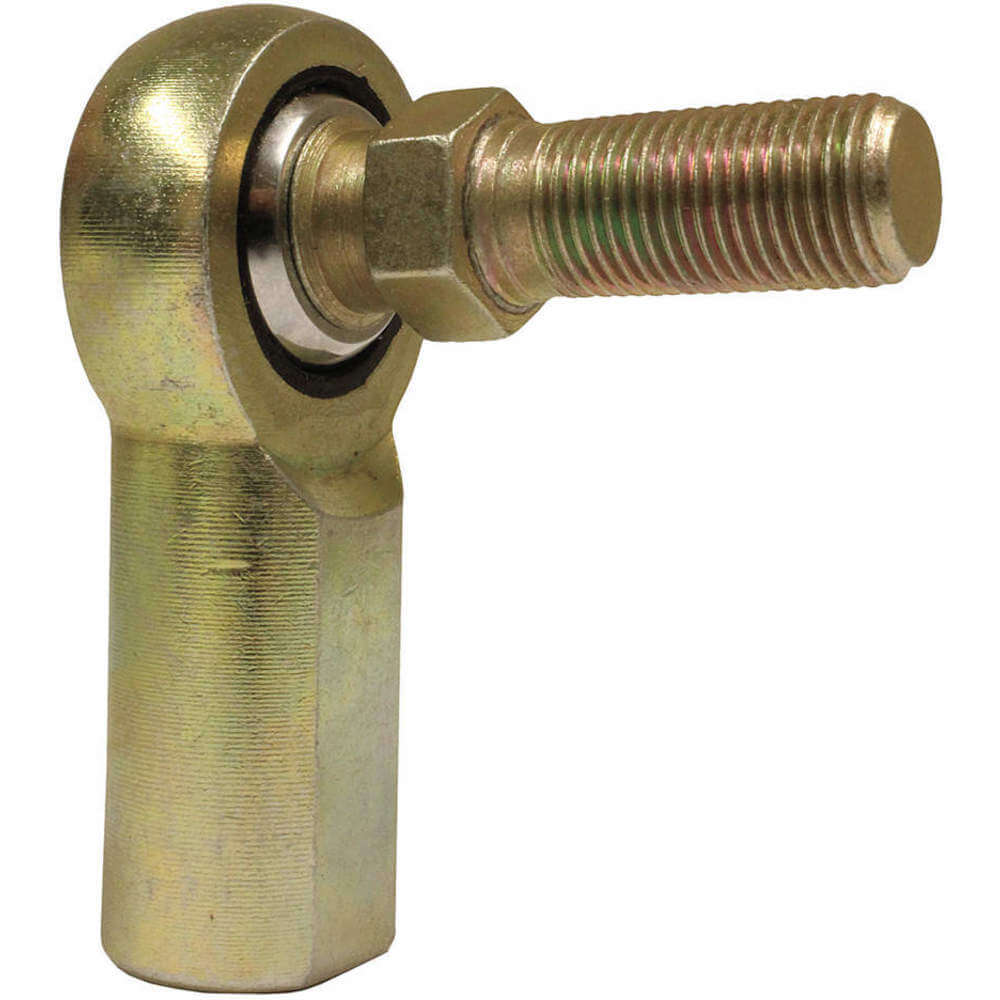

QA1 NFL8S Female Stud Rod End Nylon/ptfe Left-hand 1/2-20
Item: AB4UXNModel: NFL8SCross Ref: 20F938
7 In Stock
Ships within 2 days via
10.00% off
€23.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Nylon/PTFE Race Rod End |
| Application | Low Load, Moderate Oscillation |
| Ball | Spherical |
| Ball Dia. | 0.937" |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Ball Stud Center Length | 2" |
| Ball Stud Material | Carbon Steel |
| Ball Stud Thread Direction | Left Hand |
| Ball Stud Thread Length | 1" |
| Ball Stud Thread Size | 1/2"-20 |
| Bearings | 52100 Steel Spherical Ball |
| Bore Dia. | 1/2" |
| Bore Diameter Tolerance | -0.0005" to +0.0025" |
| Dimension B | 7/8" |
| Dimension C | 1 1/8" |
| Dimension E | 1.312" |
| Dimension G | 2 1/8" |
| Dimension H | 1.187" |
| Dimension J | 2.781" |
| Grade | Grade 52100 |
| Head Outside Diameter | 1 1/4" |
| Head Width | 1/2" |
| Housing | Carbon Steel |
| Housing Material | Carbon Steel |
| Housing Material Finish | Chrome Plated |
| Inner Ring Width | 5/8" |
| Max. Angular Misalignment | 12° |
| Maximum Ball Swivel | 12° |
| Overall Length | 2 25/32" |
| Race Material | Nylon, PTFE |
| Resistance Properties | Corrosion Resistant, High Wear Resistant, Low Moisture Absorption |
| Rod End Type | Spherical Rod End |
| Self Lubricating Bearing | Yes |
| Shank Thread Direction | Left Hand |
| Shank Thread Gender | Female |
| Shank Thread Length | 1 1/8" |
| Shank Thread Size | 1/2"-20 |
| Spherical Rod End Type | Female Studded |
| Static Radial Load Capacity | 6430 lbf. |
| Stud Length | 1 1/8" |
| Stud Material | Carbon Steel |
| System Of Measurement | Inch |
| Thread | Left Hand |
| Thread Size | 1/2"-20 |
| Type | Female Studded |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 6.35 |
| HS code | 8483308055 |
| Country of Origin | CN |
Product Variants
| Model | Housing Material | Shank Thread Direction | Shank Thread Size | Ball Dia. | Bore Dia. | Grade | Stud Length | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NFR3S | Carbon Steel | Right Hand | #10-32 | 0.437" | 3/16" | Grade 52100 | 1/2" | Alloy Steel | €15.93 | |
| NFL3S | Carbon Steel | Left Hand | #10-32 | 0.437" | 3/16" | Grade 52100 | 1/2" | Alloy Steel | €15.93 | |
| NFR4S | Carbon Steel | Right Hand | 1/4"-28 | 1/2" | 1/4" | Grade 52100 | 0.562" | Alloy Steel | €17.33 | |
| NFL4S | Carbon Steel | Left Hand | 1/4"-28 | 1/2" | 1/4" | Grade 52100 | 0.562" | Alloy Steel | €17.33 | |
| NFR6S | Carbon Steel | Right Hand | 3/8"-24 | 0.719" | - | Grade 52100 | 0.906" | Alloy Steel | €19.50 | |
| NFL6S | Carbon Steel | Left Hand | 3/8"-24 | 0.719" | 3/8" | Grade 52100 | 0.906" | Alloy Steel | €19.50 | |
| NFR8S | Carbon Steel | Right Hand | 1/2"-20 | 0.937" | 1/2" | Grade 52100 | 1 1/8" | Alloy Steel | €26.00 |
