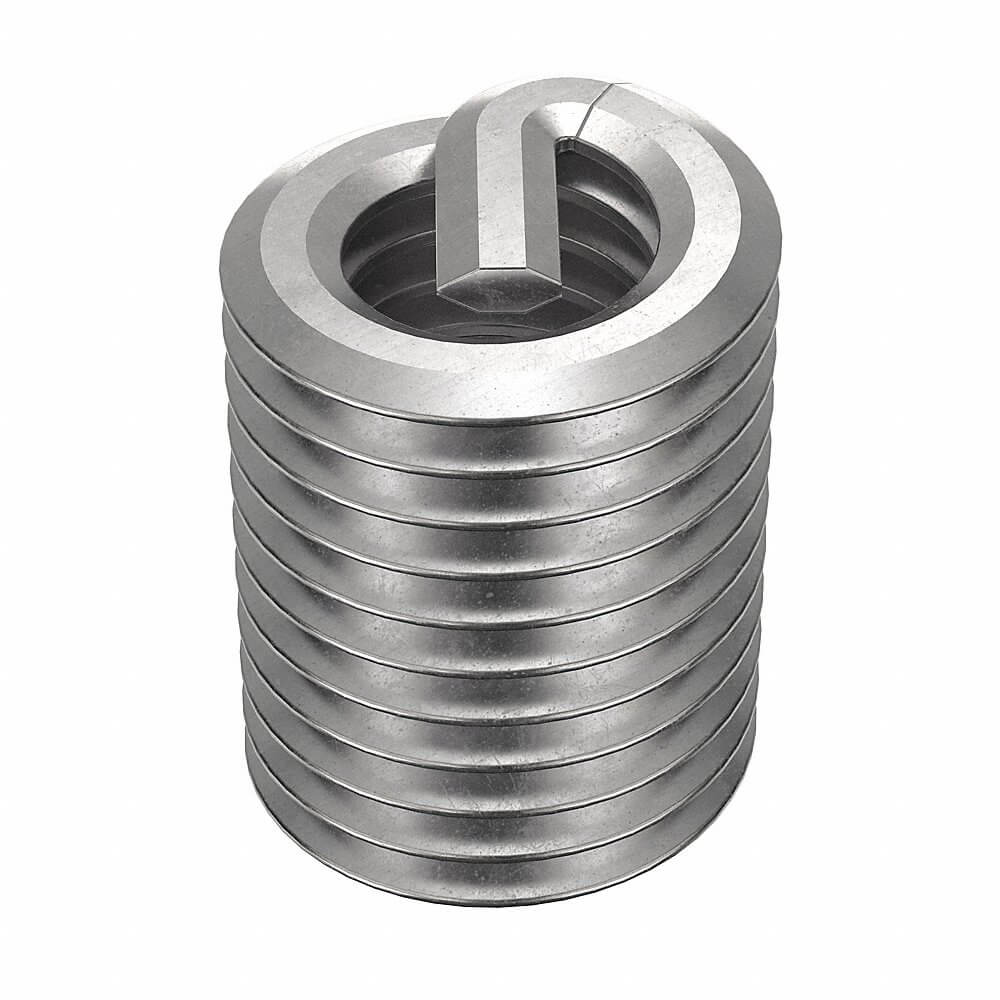

POWERCOIL 3520-3.00X2.0DSL Helical Insert, M3x0.5 Internal Thread Size, Gr. 304, 6 mm Lg., 3.2 mm Drill Size
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€6.14 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Helical Insert |
| Display Qty | 10 |
| Drill Size | 3.2 mm |
| Finish | Plain |
| Free Coil Dia. | 4.35 mm |
| Free Coil Diameter | 4.3434 mm |
| Grade | 304 |
| Hardness | Rockwell C43-50 |
| Helical Insert Type | Screw Locking |
| Industry Standards | Ma3329-202 |
| Internal Thread Size | M3 x 0.5 |
| Length | 6 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 2.4638 mm |
| Overall Length | 6 mm |
| Rockwell Hardness | C43-C50 |
| Series | Powercoil |
| Sti Tap Size | M3 x 0.5 |
| System Of Measurement | Metric |
| Tang Style | Tanged |
| Tensile Strength | 200000 psi |
| Thread Direction | Right Hand |
| Thread Size | M3 x 0.5 |
| Thread Type | Coarse |
| Type | Screw Locking |
Shipping Info:
| Ship height (cm) | 0.51 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| HS code | 7318290000 |
| Country of Origin | GB |
Product Variants
| Product | Model | Drill Size | Free Coil Dia. | Thread Type | Internal Thread Size | Thread Direction | Hardness | Tensile Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3532-2GX1.0DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €8.15 | |
 |
3532-2GX1.5DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €9.54 | |
 |
3532-4GX1.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €7.02 | |
 |
3532-4GX1.5DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €6.21 | |
 |
3532-4GX2.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €9.74 | |
 |
3532-5GX1.0DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €5.02 | |
 |
3532-5GX1.5DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €8.06 |
