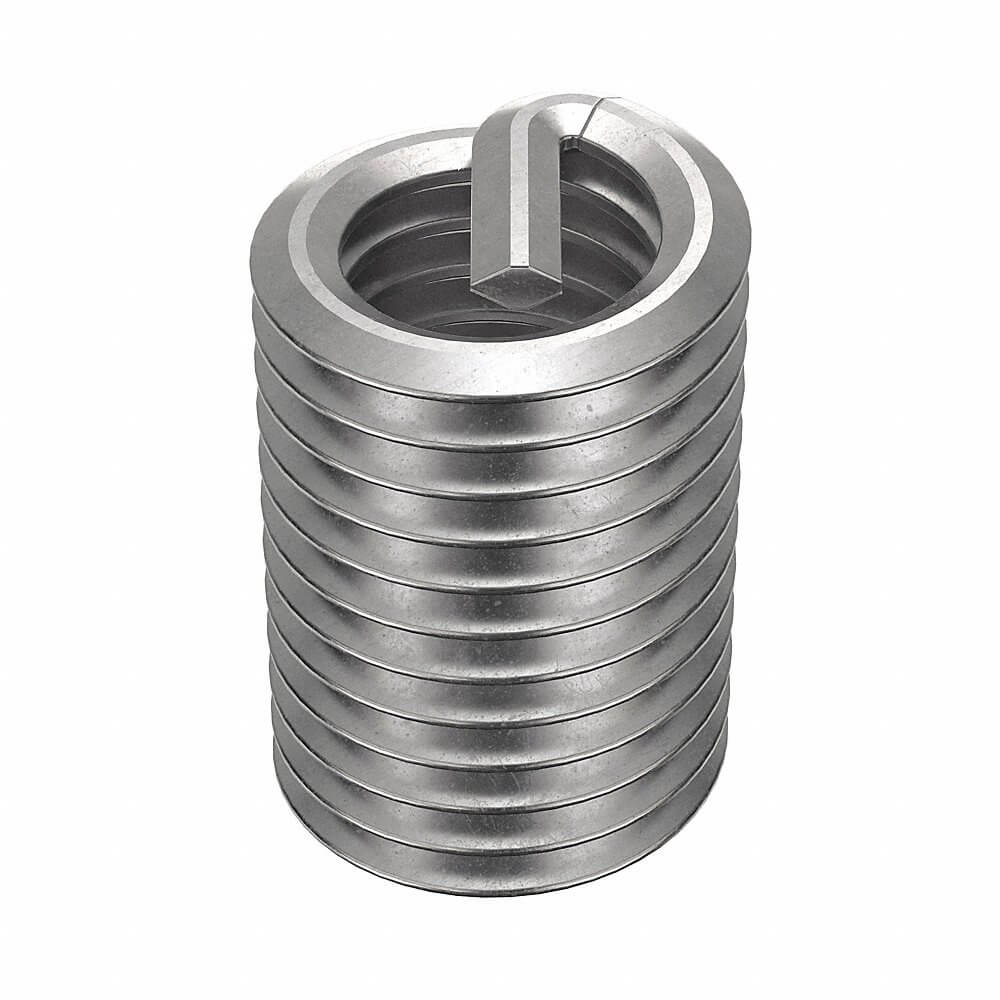

POWERCOIL 3520-8.00X2.0DSL Helical Insert, M8x1.25 Int. Thread Size, Grade 304, 16 mm Lg., 8.3 mm Drill Size
Item: AE7DUYModel: 3520-8.00X2.0DSLCross Ref: 5XAE5
7 In Stock
Ships within 2 days via
€9.53 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Helical Insert |
| Display Qty | 10 |
| Drill Size | 8.3 mm |
| Finish | Plain |
| Free Coil Dia. | 10.3378 mm , 10.35 mm |
| Grade | 304 |
| Hardness | Rockwell C43-50 |
| Helical Insert Type | Screw Locking |
| Industry Standards | Ma3329-209 |
| Internal Thread Size | M8 x 1.25 |
| Length | 16 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Hole Dia. | 6.6548 mm |
| Overall Length | 16 mm |
| Product Datasheet | powercoil-3532-2gx1-0d.pdf |
| Rockwell Hardness | C43-C50 |
| Series | Powercoil |
| Sti Tap Size | M8 x 2 |
| System Of Measurement | Metric |
| Tang Style | Tanged |
| Tensile Strength | 200000 psi |
| Thread Direction | Right Hand |
| Thread Size | M8 x 2 |
| Thread Type | Coarse |
| Type | Screw Locking |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| HS code | 7318290000 |
| Country of Origin | GB |
Documentation:
Product Variants
| Product | Model | Drill Size | Free Coil Dia. | Thread Type | Internal Thread Size | Thread Direction | Hardness | Tensile Strength | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3532-2GX1.0DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €5.70 | |
 |
3532-2GX1.5DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €6.68 | |
 |
3532-4GX1.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €4.91 | |
 |
3532-4GX1.5DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €4.35 | |
 |
3532-4GX2.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €6.82 | |
 |
3532-5GX1.0DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €3.51 | |
 |
3532-5GX1.5DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 10 | €5.64 |
