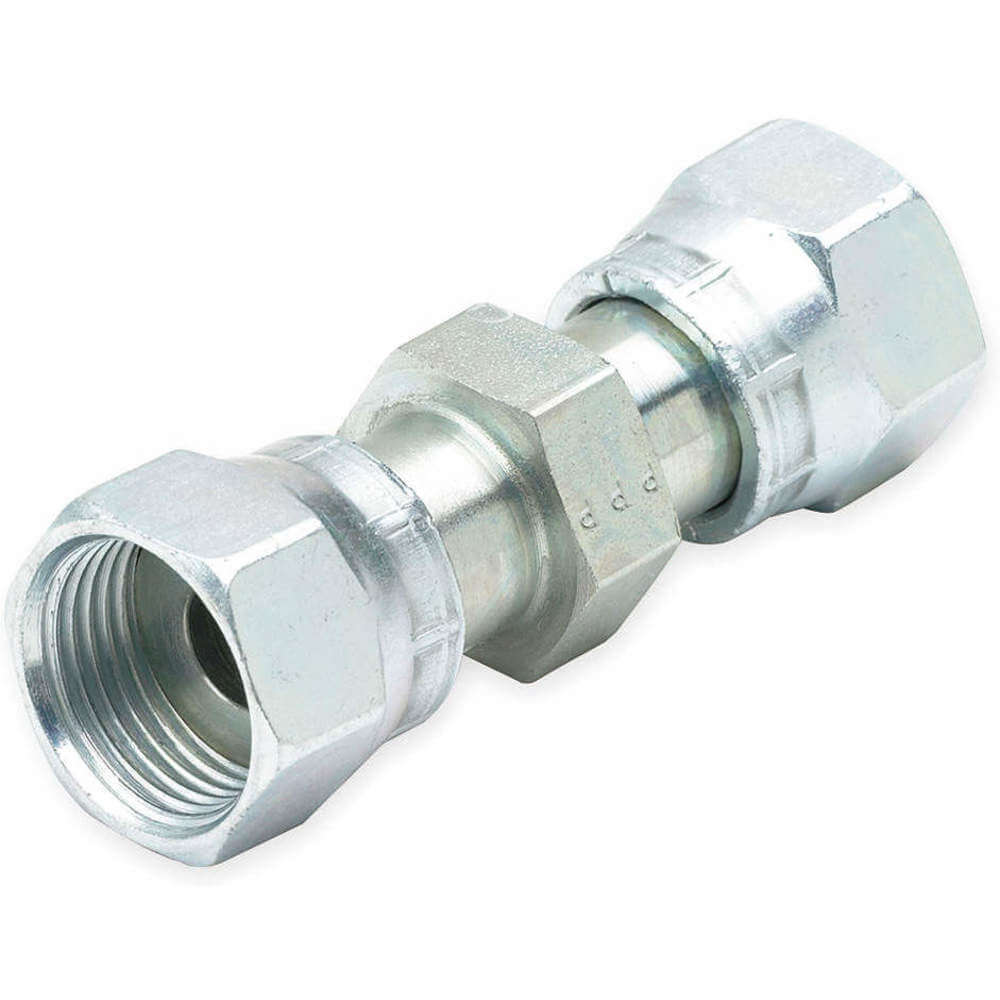

PARKER 4 HL6-S Swivel Union Zinc Steel Female Orfs 1/4in
Item: AB4DTDModel: 4 HL6-SCross Ref: 1XCN4
7 In Stock
Ships within 2 days via
10.00% off
€92.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swivel Union |
| Application | Air |
| Basic Material | Metal |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.083" |
| Configuration Sub-type | Swivel Nut Union Orfs Swivel, Orfs Swivel |
| Configuration Type | Straight Swivel |
| Connection Type | Female ORFS |
| End 2 Size | 1/8" |
| End 2 Type | Inch |
| Finish/coating | Zinc Nickel Plated |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Swivel FNPT O Ring |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Swivel FNPT O Ring |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Hex Size | 5/8" |
| Material | Steel |
| Max. Operating Pressure | 9200 psi |
| Max. Pressure | 9200 psi |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 19/32" |
| Product Datasheet | parker-4-hl6-s.pdf |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | Straight Swivel Connector |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +250°F |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 4.05 |
| Ship width (cm) | 1.59 |
| HS code | 7307995060 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Max. Pressure | Hex Size | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Compatible Tube Wall Thickness | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 HL6-S | 3/8" | 9200 psi | 3/4" | 9200 psi | 3/8" | 3/8" | 0.109" | 1 25/32" | €105.79 | |
| 12 HL6-S | 3/4" | 6000 psi | 1 1/4" | 6000 psi | 3/4" | 3/4" | 0.148" | 2 3/4" | €208.10 | |
| 16 HL6-S | 1" | 6000 psi | 1 7/16" | 6000 psi | 1" | 1" | 0.188" | 2 15/16" | €199.46 |
