Mechanical Interlock Devices

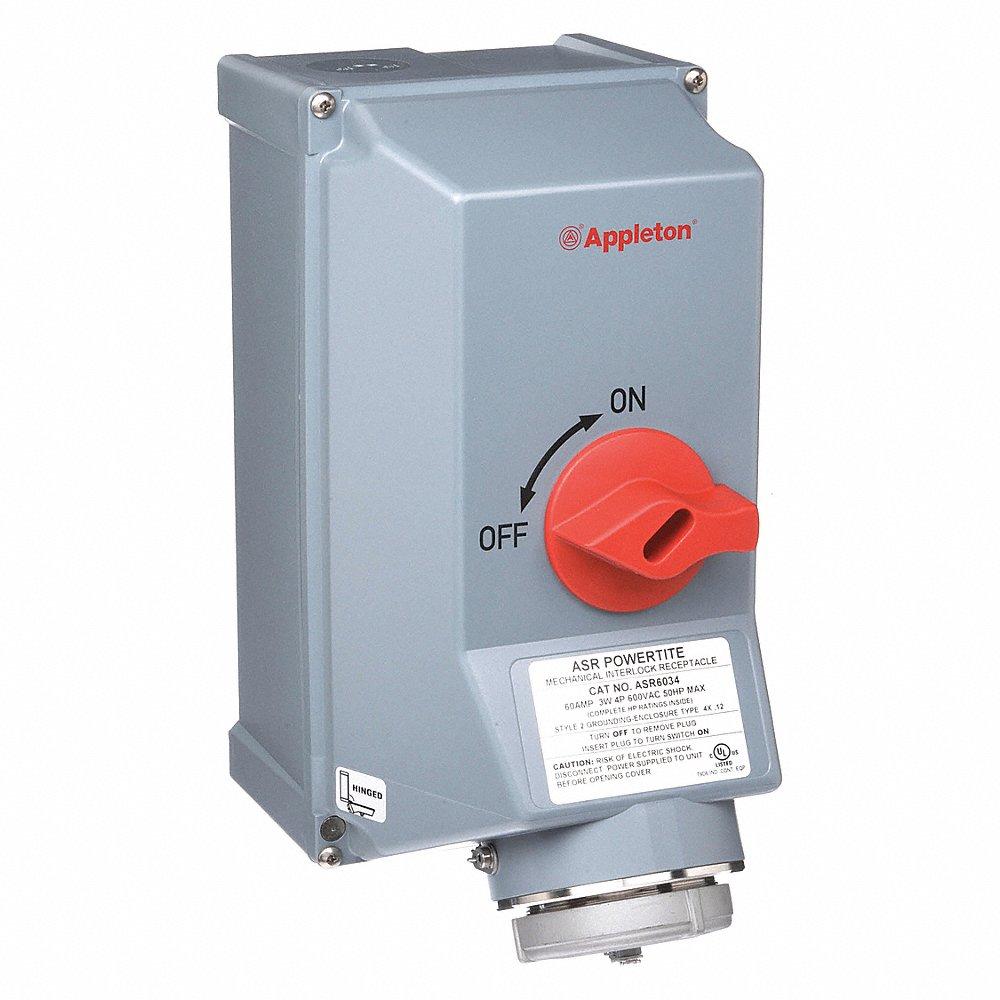

APPLETON ELECTRIC -

Interlocked Receptacle with Enclosed Disconnect Switch

A

B

C

D

E

Style	Model	Amps	HP	Item	Material	Type	Voltage	Price (ex. VAT)
A	WSRD33542SQ	30	30	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Nonfused	600 VAC	€3,903.47
B	ASR3034F	30	-	Mechanical Interlock	Nonmetallic Valox 357, Watertight and Abuse Resistant	Nonmetallic Enclosure, Fused	600	€4,897.06
A	WSRD3352N4SD	30	7.5	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure, Fused	600 VAC	€8,186.63
A	WSRD3352N4WSD	30	7.5	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure with Viewing Window, Fused	600 VAC	€8,465.49
A	WSRD3352SQ	30	7.5	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Fused	600 VAC	€4,765.11
A	WSRD3352WSQ	30	7.5	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure with Viewing Window, Fused	600 VAC	€4,501.01
A	WSRD33542N4SD	30	20	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure, Nonfused	600 VAC	€7,529.30
A	WSRD33542N4WSD	30	20	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure with Viewing Window, Nonfused	600 VAC	€7,748.42
C	ASR3034	30	-	Mechanical Interlock	Nonmetallic Valox 357, Watertight and Abuse Resistant	Nonmetallic Enclosure, Nonfused	600	€4,224.08
A	WSRD33542WSQ	30	30	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure with Viewing Window, Nonfused	600 VAC	€5,299.70
A	WSR33542	30	30	Mechanical Interlock Device	Copperfree Aluminum with Epoxy Powder Coating Inside and Outside	Cast Aluminum Enclosure, Nonfused	600 VAC	€8,090.92
A	WSR3352	30	7.5	Mechanical Interlock Device	Copperfree Aluminum with Epoxy Powder Coating Inside and Outside	Cast Aluminum Enclosure, Fused	600 VAC	€8,893.04
A	WSRD63542N4WSD	60	15	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure with Viewing Window, Nonfused	600 VAC	€8,286.23
D	ASR6034	60	-	Mechanical Interlock	Nonmetallic Valox 357, Watertight and Abuse Resistant	Nonmetallic Enclosure, Nonfused	600	€4,449.53
E	ASR6034F	60	-	Mechanical Interlock	Nonmetallic Valox 357, Watertight and Abuse Resistant	Nonmetallic Enclosure, Fused	600	€4,978.90
A	WSRD63542SQ	60	60	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Nonfused	600 VAC	€4,544.14
A	WSRD63542WSQ	60	60	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure with Viewing Window, Nonfused	600 VAC	€4,575.02
A	WSRD6352WSQ	60	15	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure with Viewing Window, Fused	600 VAC	€4,813.45
A	WSRD63542N4SD	60	15	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure, Nonfused	600 VAC	€7,768.33
A	WSRD63542	60	60	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Nonfused	600 VAC	€4,623.91
A	WSRD6352SQ	60	15	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Fused	600 VAC	€4,987.76
A	WSRD6352N4WSD	60	15	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure with Viewing Window, Fused	600 VAC	€8,943.56
A	WSRD6352N4SD	60	15	Mechanical Interlock	Stainless Steel	Stainless Steel Enclosure, Fused	600 VAC	€8,345.99
A	WSRD6352	60	15	Mechanical Interlock	Enamel Coated Sheet Metal	Sheet Metal Enclosure, Fused	600 VAC	€4,907.21
A	WSR6352	60	15	Mechanical Interlock Device	Copperfree Aluminum with Epoxy Powder Coating Inside and Outside	Cast Aluminum Enclosure, Fused	600 VAC	€8,474.73

EATON -

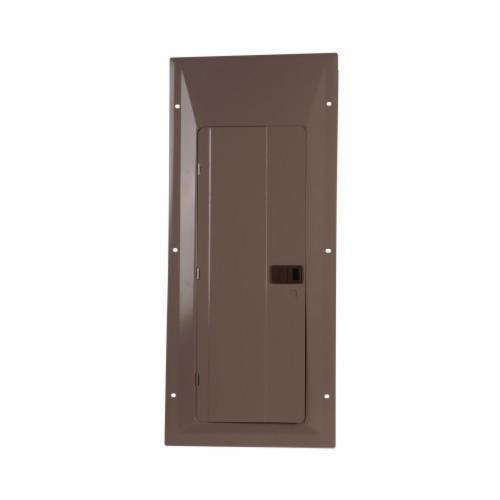

Mechanical Interlock Covers

A

B

C

D

E

F

Style	Model	Price (ex. VAT)
A	CH8JFM	€862.72	RFQ

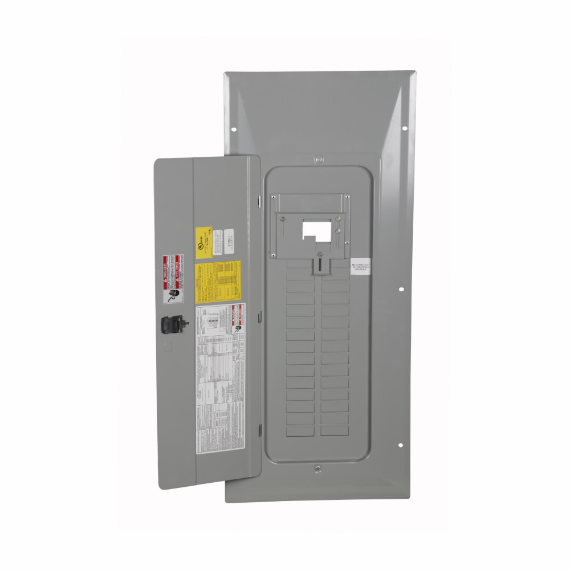

B	BRCOV30G1FM	€889.81	RFQ
C	BRCOVC10M	€333.17	RFQ
D	CH8KFM	€892.52	RFQ
E	CHPC8B32LFM	€1,194.54	RFQ
F	BR4040B200M30	€1,809.78	RFQ

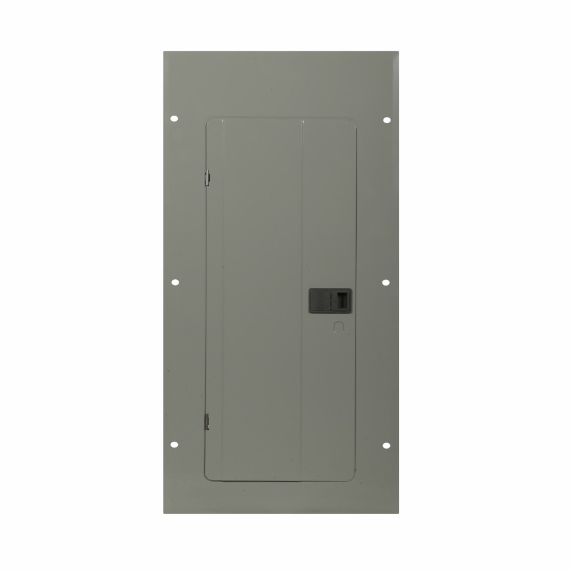

C	BRCOV42L2FM	€333.17	RFQ

HUBBELL WIRING DEVICE-KELLEMS -

Mechanical Interlocks
Hubbell Wiring Device-Kellems mechanical interlocks are used for preventing haphazard connections and breaking / making circuits under loads. These interlocking devices feature plugs which cannot be removed till the switch is turned Off and a lockable handle meeting OSHA lockout / tagout regulations. These UL listed & CSA certified interlocks have shaft seals made of neoprene to provide high thermal stability and are capable of being operated at voltages up to 600VAC (RMS). Choose from a wide range of these mechanical interlocks, available in 2, 3 & 4 pole configurations
Raptor Supplies also offers circuit-lock mechanical interlocks featuring Plug-Check mechanism for detecting the presence of plugs.

A

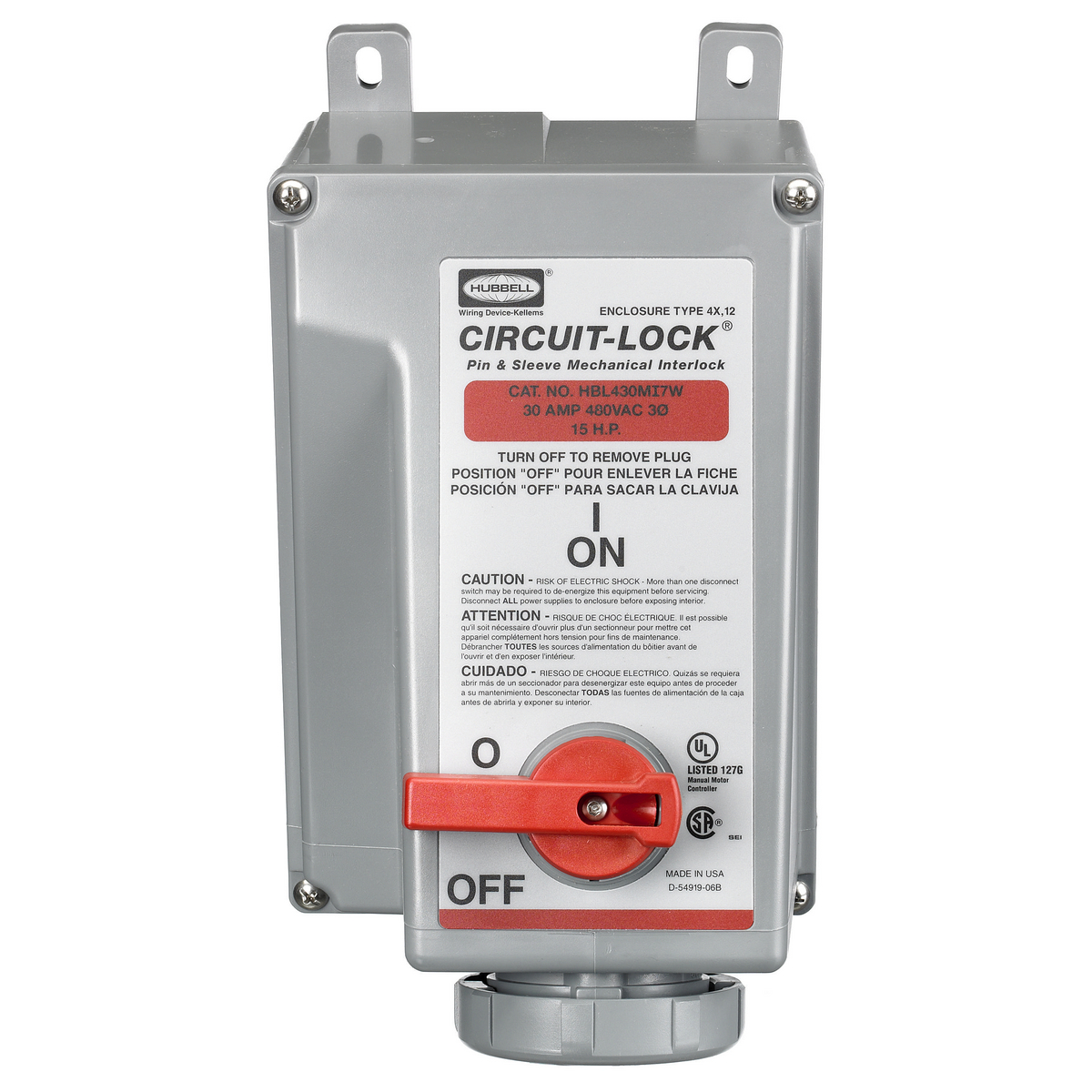

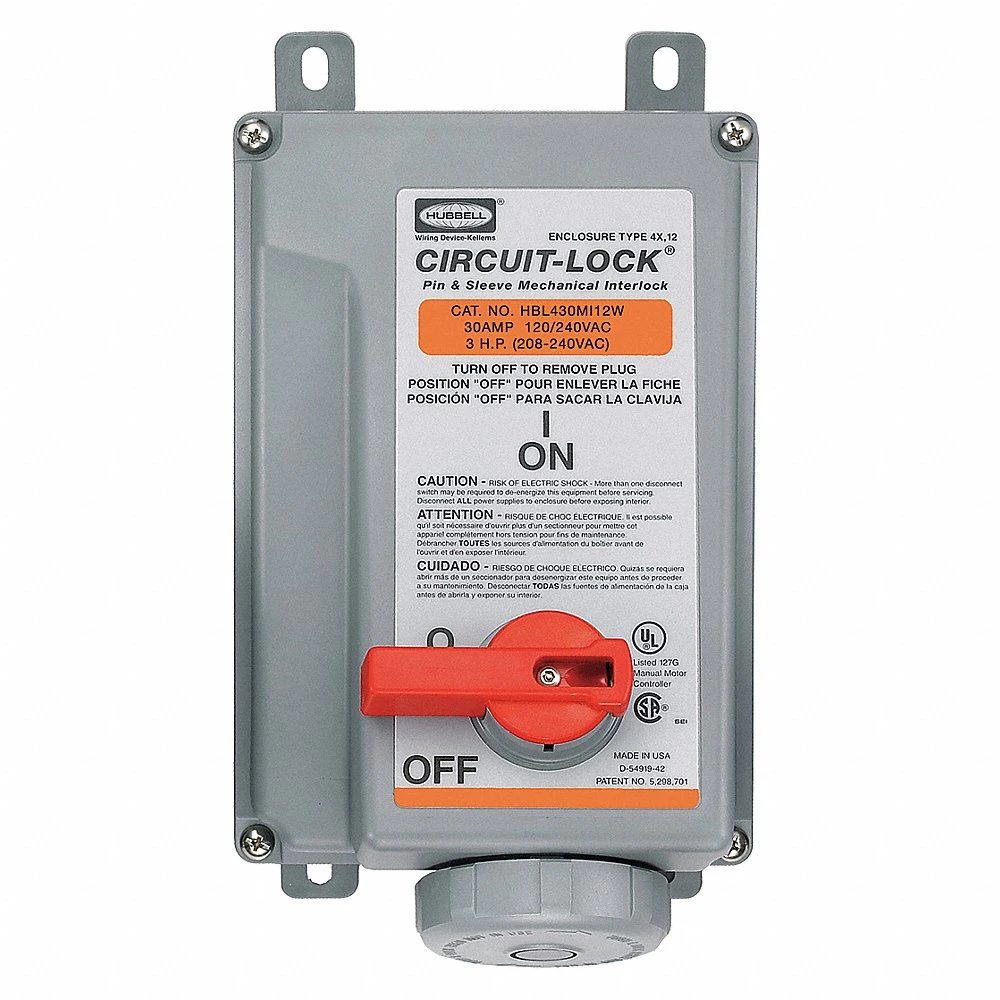

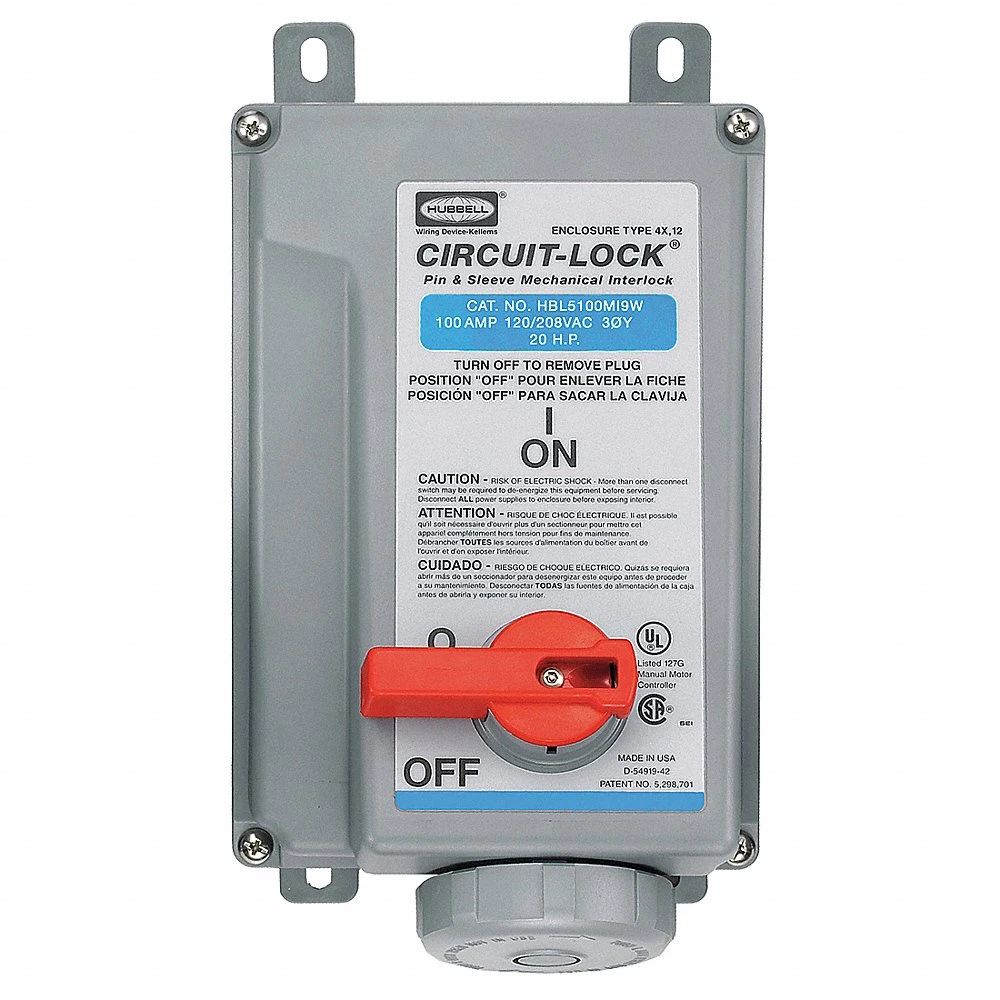

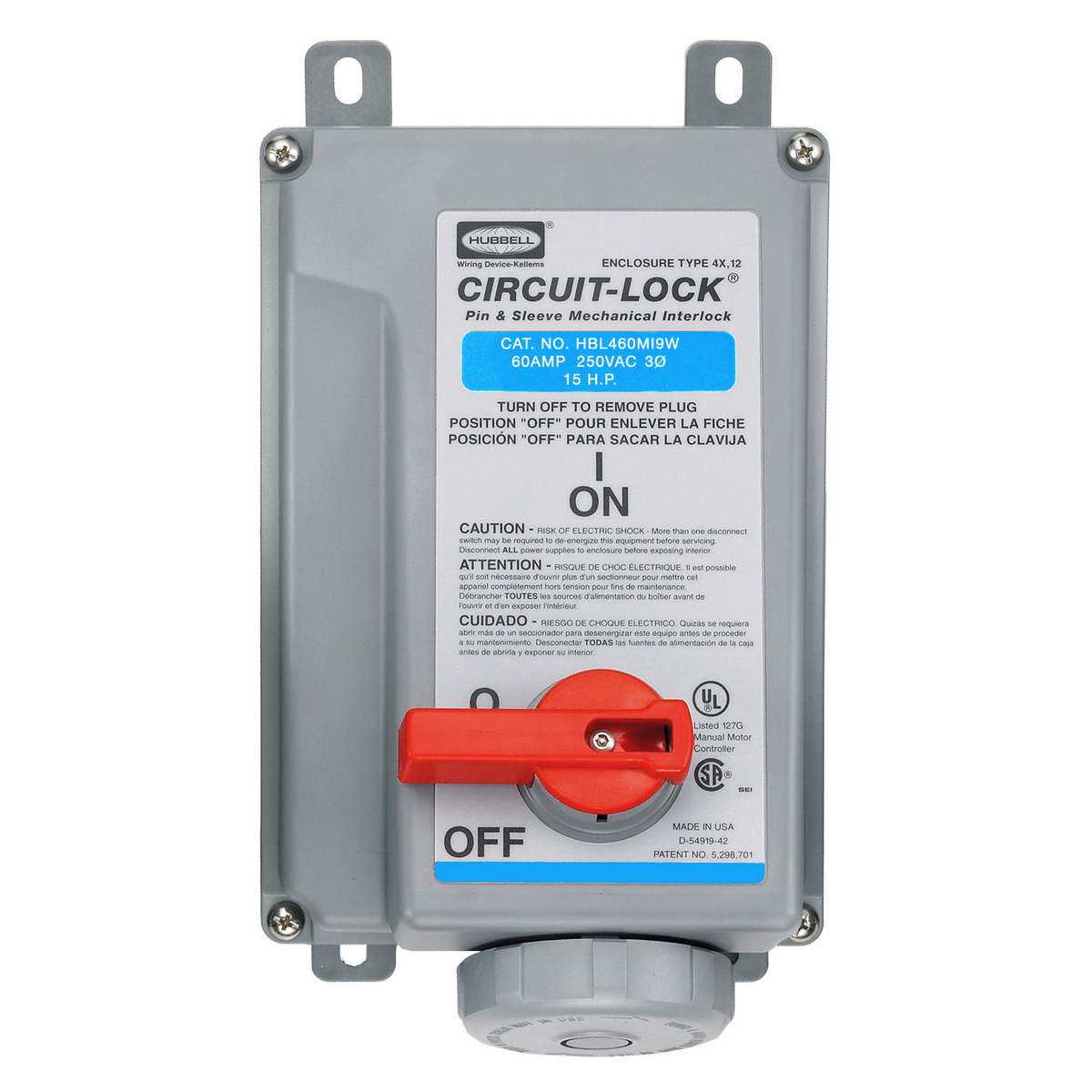

HUBBELL WIRING DEVICE-KELLEMS HBL430MI12W

B

HUBBELL WIRING DEVICE-KELLEMS HBL420MI12W

C

HUBBELL WIRING DEVICE-KELLEMS HBL360MI7W

D

HUBBELL WIRING DEVICE-KELLEMS HBL4100MI12W

E

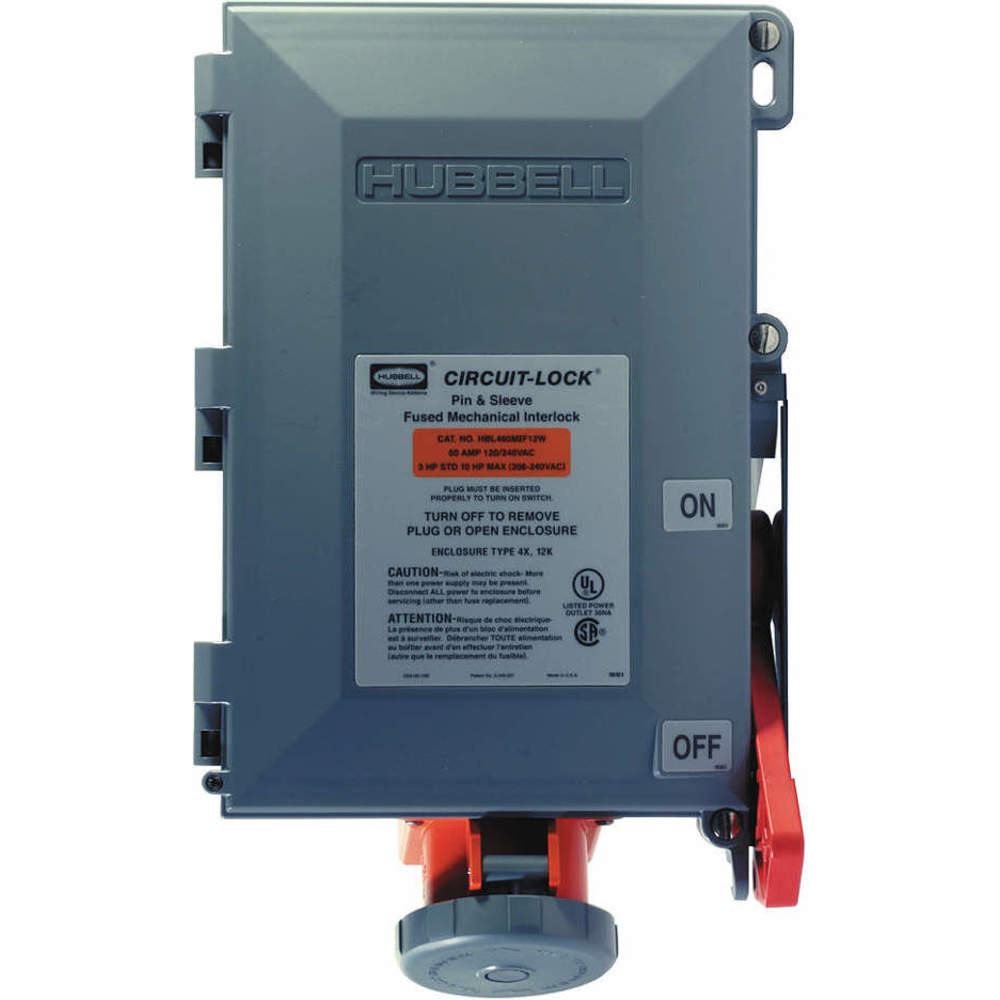

HUBBELL WIRING DEVICE-KELLEMS HBL460MIF12W

F

HUBBELL WIRING DEVICE-KELLEMS HBL460MIFS2W

G

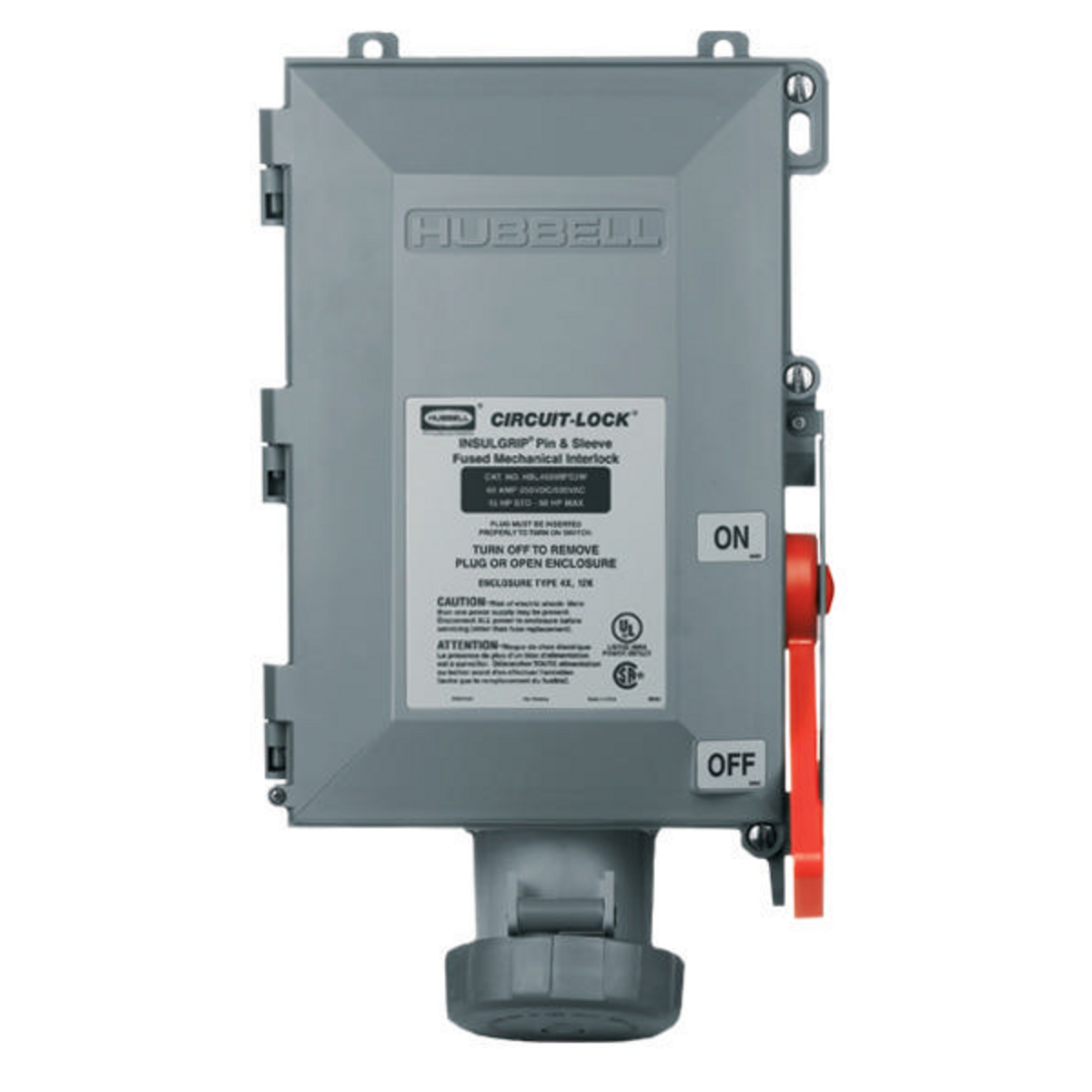

HUBBELL WIRING DEVICE-KELLEMS HBL430MIS2W

H

HUBBELL WIRING DEVICE-KELLEMS HBL420MI5W

I

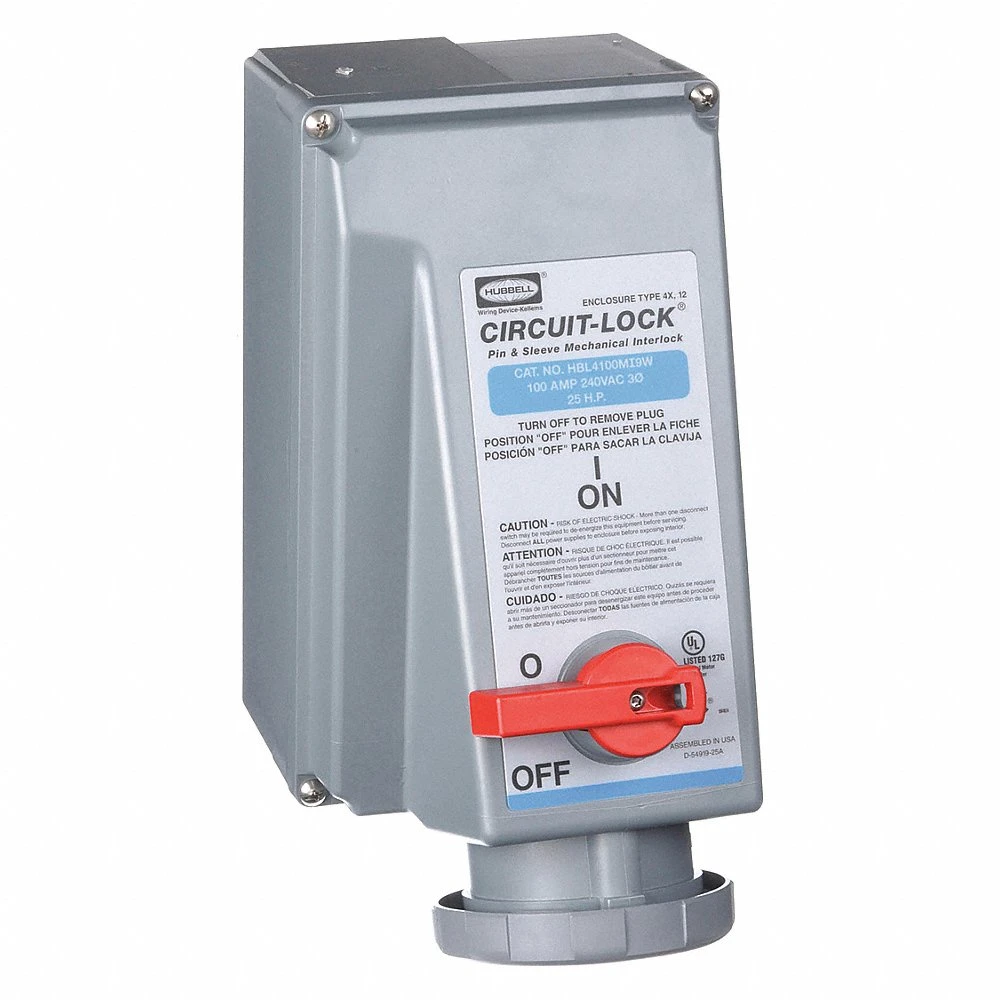

HUBBELL WIRING DEVICE-KELLEMS HBL4100MI9W

J

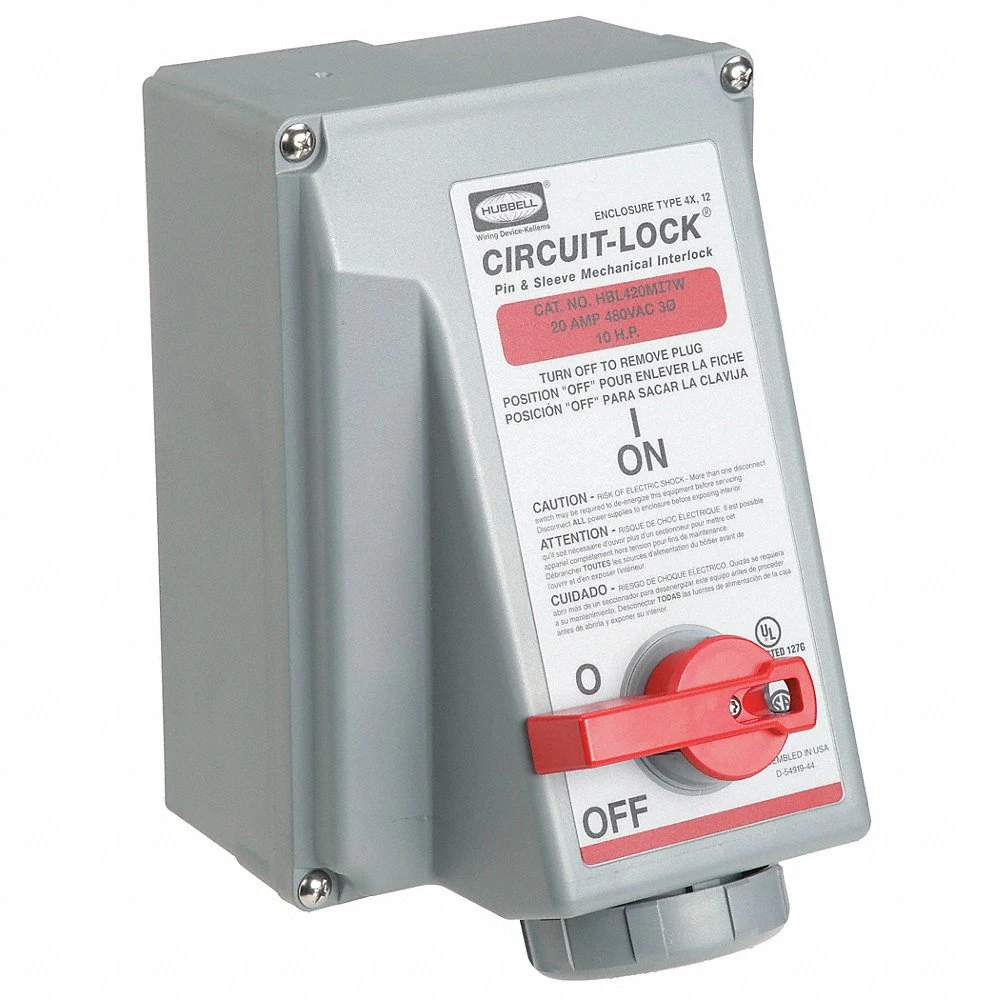

HUBBELL WIRING DEVICE-KELLEMS HBL420MI7W

K

HUBBELL WIRING DEVICE-KELLEMS HBL530MI5W

L

HUBBELL WIRING DEVICE-KELLEMS HBL5100MI9W

M

HUBBELL WIRING DEVICE-KELLEMS HBL530MI7W

N

HUBBELL WIRING DEVICE-KELLEMS HBL4100MI5W

O

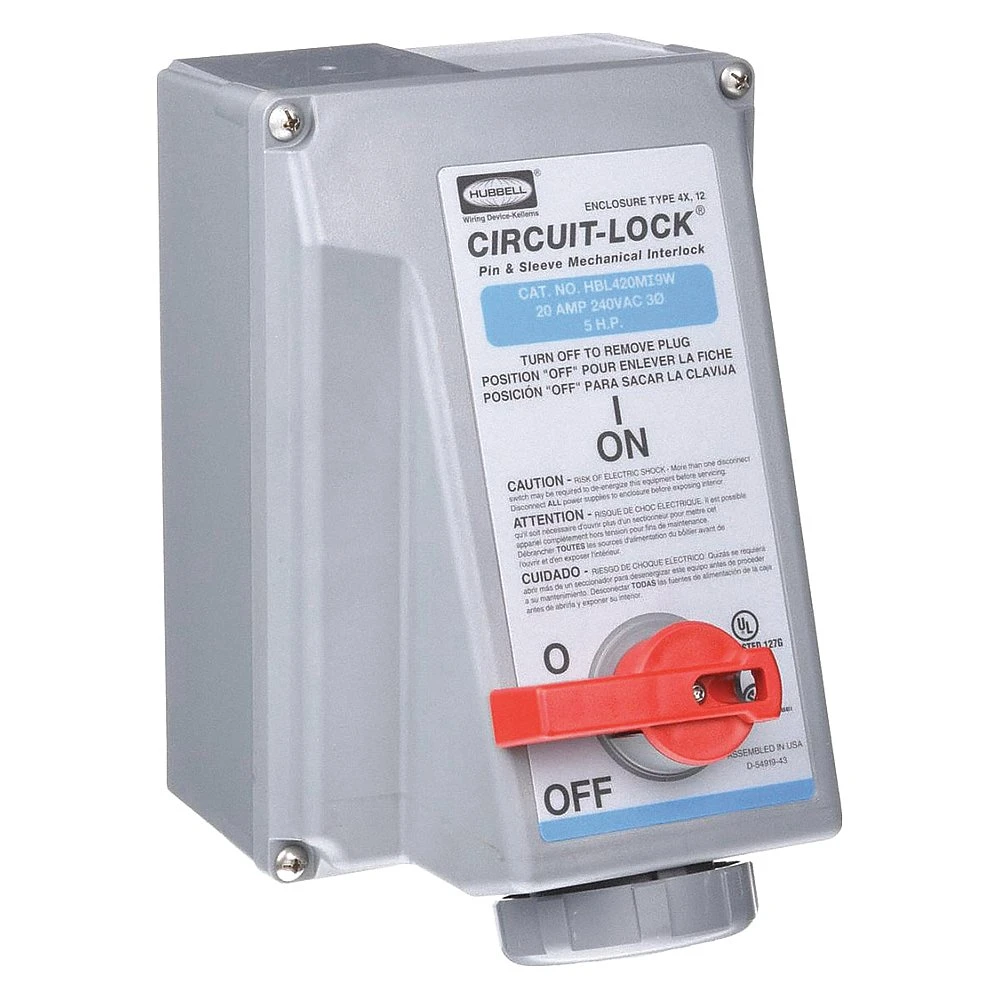

HUBBELL WIRING DEVICE-KELLEMS HBL420MI9W

P

Style	Model	Phase	Amps	Color	Type	Use With	Voltage	Voltage Rating	Wire Size	Price (ex. VAT)
A	HBL460MI12W	1	60	Orange	Pin And Sleeve Unfused	6C584	120/240 VAC	120/240 VAC	#8 - #2 AWG	€3,341.82
B	HBL430MI12W	1	30	Orange	Pin And Sleeve Unfused	3D149	120/240 VAC	120/240 VAC	#12 - #8 AWG	€2,660.46
C	HBL420MI12W	1	20	Orange	Pin And Sleeve, Unfused	6C152	120/240 VAC	120/240 VAC	#14 - #10 AWG	€2,124.56
D	HBL360MI7W	1	60	Red	-	-	480 VAC	480 VAC	#8 - #2 AWG	€2,848.64
E	HBL4100MI12W	1	100	Orange	Pin And Sleeve Unfused	6C555	120/240 VAC	120/240 VAC	#3 - #1/0 AWG	€3,685.19
F	HBL460MIF12W	1	60	Orange	-	-	125/250 VAC	120/240 VAC	#8 - #2 AWG	€4,173.12
G	HBL460MIFS2W	1/3	60	-	Pin And Sleeve, Insulgrip, Fused	5HJ29	600VAC/250VDC	600/250 VAC/VDC	#8 - #2 AWG	€4,264.65
G	HBL460MIS2W	1/3	60	-	Pin And Sleeve, Insulgrip, Unfused	5HJ29	600VAC/250VDC	600/250 VAC/VDC	#8 - #2 AWG	€3,050.34
H	HBL430MIS2W	1/3	30	-	Pin And Sleeve, Insulgrip, Unfused	5HJ23	600VAC/250VDC	600/250 VAC/VDC	#12 - #8 AWG	€2,261.81
G	HBL430MIFS2W	1/3	30	-	Pin And Sleeve, Insulgrip, Fused	5HJ23	600VAC/250VDC	600/250 VAC/VDC	#12 - #8 AWG	€4,128.56
A	HBL460MI9W	3	60	Blue	Pin And Sleeve, Unfused	5Z914	250 VAC	240 VAC	#8 - #2 AWG	€2,848.32
I	HBL420MI5W	3	20	Black	Pin And Sleeve, Unfused	3D137	600 VAC	600 VAC	#14 - #10 AWG	€1,939.77
J	HBL4100MI9W	3	100	Blue	Pin And Sleeve, Unfused	6C556	250 VAC	240 VAC	#3 - #1/0 AWG	€3,313.52
K	HBL420MI7W	3	20	Red	Pin And Sleeve, Unfused	6C125	480 VAC	480 VAC	#14 - #10 AWG	€1,914.58
L	HBL530MI5W	3	30	Black	-	-	347/600 VAC	347/600 VAC	#12 - #8 AWG	€2,569.59
M	HBL5100MI9W	3	100	Blue	Pin And Sleeve Unfused	5Z929	250 VAC	120/208 VAC	#3 - #1/0 AWG	€3,786.21
N	HBL530MI7W	3	30	Red	Pin And Sleeve Unfused	6C601	480 VAC	277/480 VAC	#12 - #8 AWG	€2,431.08
O	HBL4100MI5W	3	100	Black	Pin And Sleeve Unfused	3D132	600 VAC	600 VAC	#3 - #1/0 AWG	€3,657.86
P	HBL420MI9W	3	20	Blue	Pin And Sleeve, Unfused	3D138	250 VAC	240 VAC	#14 - #10 AWG	€1,950.66

EATON -

Circuit Interlocks

A

Style	Model	Price (ex. VAT)
A	C320KR3	€1,337.93	RFQ
A	C320KR4	€1,283.06	RFQ

EATON -

Magnum Series Mechanical Interlocks

A

B

Style	Model	Price (ex. VAT)
A	MDSDLKIT	€2,430.98	RFQ
A	MCI2W3W3133DO	€3,189.46	RFQ
A	MIC5	€2,485.43	RFQ
A	MI32FC	€6,616.18	RFQ
A	MI33FC	€6,616.18	RFQ
B	MI2DC	€3,811.77	RFQ
A	MDSDLKITSH	€2,290.95	RFQ
A	MCI3W32FX	€6,616.18	RFQ
A	MCI2W3W3133FX	€3,189.46	RFQ
A	MCI3W32DO	€6,375.01	RFQ
A	MI31DC	€6,375.01	RFQ
A	MIC6	€2,625.46	RFQ
A	MI33DC	€6,375.01	RFQ
A	MIC10	€3,026.08	RFQ
A	MI31FC	€6,616.18	RFQ
A	MI32DC	€6,375.01	RFQ
A	MI2FR	€3,839.01	RFQ
A	MI2FC	€3,839.01	RFQ
A	MIC8	€2,835.50	RFQ

EATON -

Molded Case Circuit Breaker Interlock Kits

A

Style	Model	Price (ex. VAT)

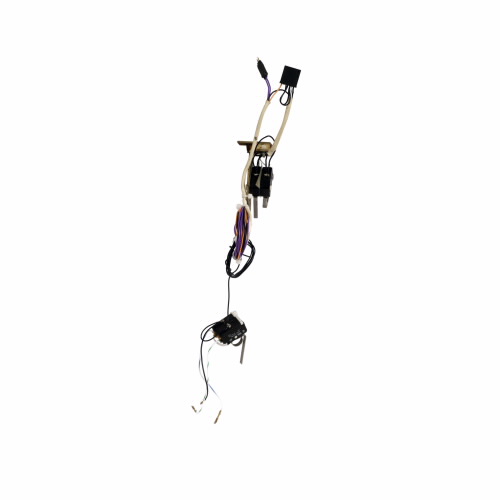

A	ICK550K	€1,318.57	RFQ
A	ICK550L	€1,730.86	RFQ
A	ICK550N	€2,088.70	RFQ

EATON -

Mechanical Interlocks

A

B

C

D

E

F

G

H

I

J

Style	Model	Item	Price (ex. VAT)
A	XTCEXMLG	Mechanical Interlock	€176.15
B	BRCOVC16M	Mechanical Interlock	€333.17	RFQ
C	C81DDA11	Mechanical Interlock	€725.05	RFQ
C	C81DEA11	Mechanical Interlock	€1,098.24	RFQ
D	C321KM90	Mechanical Interlock	€392.51	RFQ
D	C321KM65	Mechanical Interlock	€318.65	RFQ
D	C321KM40	Mechanical Interlock	-	RFQ
E	BRCOVC13M	Mechanical Interlock	€333.17	RFQ
F	XTCEXMLC	Mechanical Interlock	€25.90
F	XTCEXMLB	Mechanical Interlock	€27.41
G	WM34V	Mechanical Interlock	€806.13	RFQ
G	WM55V	Mechanical Interlock	€4,241.69	RFQ
D	C321KM45	Mechanical Interlock	-	RFQ
C	6002H645-1	Mechanical Interlock	€1,098.24	RFQ
H	C321KM55	Mechanical Interlock	€131.96	RFQ
C	6002H637-1	Mechanical Interlock	€1,098.24	RFQ
G	WM66V	Mechanical Interlock	€4,241.69	RFQ
D	C321KM30	Mechanical Interlock	€147.55
I	XTMCXML	Mechanical Interlock	€38.81
C	C81DJA11	Mechanical Interlock	€1,098.24	RFQ
D	C321KM66	Mechanical Interlock	€377.75	RFQ
D	C321KM70	Mechanical Interlock	-	RFQ
D	C321KM34	Mechanical Interlock	€1,454.00	RFQ
J	BRCOVC17M	Mechanical Interlock	€333.17	RFQ
F	XTCEXMLD	Mechanical Interlock	€43.38

PASS AND SEYMOUR -

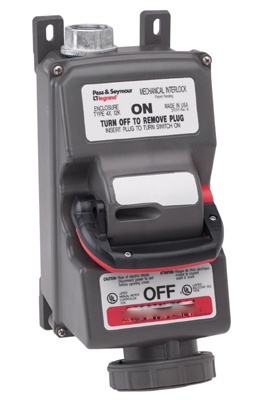

Non Fusible Mechanical Interlocks

A

B

C

D

Style	Model	Number of Wires	Voltage
A	PS320MIR4W	-	-	RFQ
B	PS420MIR7-WBF	-	-	RFQ
A	PS330MIR7W	-	-	RFQ
C	PS360MIR4W	-	-	RFQ
A	PS520MIR9W	-	-	RFQ
A	PS320MIR7W	-	-	RFQ
A	PS320MIR6W	-	-	RFQ
D	PS3100MIR7-W	3	480V	RFQ
A	PS330MIR4-W	3	120V	RFQ
C	PS3100MIR6-W	3	250V	RFQ
C	PS360MIR6-W	3	240V	RFQ
C	PS360MIR7-W	3	480V	RFQ
C	PS420MIR9-W	4	250V	RFQ
C	PS430MIR5-W	4	600V	RFQ
C	PS420MIR7-W	4	480V	RFQ
C	PS4100MIR5-W	4	600V	RFQ
B	PS460MIR9-W	4	250V	RFQ
C	PS420MIR5-W	4	600V	RFQ
C	PS420MIR12-W	4	125V	RFQ
C	PS460MIR7-W	4	480V	RFQ
C	PS4100MIR9-W	4	248V	RFQ
C	PS430MIR7-W	4	480V	RFQ
C	PS430MIR9-W	4	250V	RFQ
C	PS4100MIR12-W	4	120V	RFQ
C	PS4100MIR7-W	4	480V	RFQ

EATON -

Motor Control Interlocks

A

B

C

D

Style	Model	Price (ex. VAT)
A	2147A48G30	€2,846.28	RFQ
A	843D943G06	€1,116.34	RFQ
A	578D461G01	€1,297.82	RFQ
B	578D461G03	-	RFQ
C	601548-0033	€563.45	RFQ
D	843D943G22	€1,029.82	RFQ
A	843D943G02	€1,133.22	RFQ
D	843D943G21	€945.40	RFQ
D	843D943G23	€945.40	RFQ

EATON -

Molded Case Circuit Breaker Sliding Bar Interlocks

A

Style	Model	Price (ex. VAT)
A	SBK3	€2,378.48	RFQ
A	SBK4	€2,378.48	RFQ
A	SBK5	€2,499.04	RFQ
A	SBK2	€2,499.04	RFQ
A	SBK1	€2,499.04	RFQ

EATON -

DC Contactor Interlocks

A

B

Style	Model	Price (ex. VAT)
A	2087A40G14	€1,658.69	RFQ
B	11A8713G10	€989.73	RFQ
A	2087A40G11	€1,658.69	RFQ
A	2087A40G12	€1,658.69	RFQ
A	2087A40G13	€1,658.69	RFQ
A	2087A40G15	€1,658.69	RFQ
B	11A8713G09	€989.73	RFQ
B	11A8713G11	€858.88	RFQ

EATON -

Molded Case Circuit Breaker Walking Beam Interlocks

A

B

C

Style	Model	Price (ex. VAT)
A	LG3WBI	€2,322.08	RFQ
B	WBL4A-14	€2,635.19	RFQ
B	WBL4A	€2,316.24	RFQ
B	WBL3	€2,320.12	RFQ
B	WBL1	€2,436.82	RFQ
C	1492D87G02	€14,245.56	RFQ
B	WBL5-14	€2,989.14	RFQ

EATON -

Mechanical Interlock Kits

A

B

C

D

E

Style	Model	Price (ex. VAT)
A	BRMIKCSRBP	€1,481.11	RFQ
B	BRMIKCSR	€155.88	RFQ
C	BRMIKBR	€217.90
A	BRMIKBRBP	€1,481.11	RFQ
D	BRMLCS	€43.30	RFQ
E	BRML	-	RFQ

PASS AND SEYMOUR -

Fusible Mechanical Interlocks

A

B

Style	Model	Number of Wires	Voltage
A	PS460FMIR5-W	-	-	RFQ
B	PS530FMIR5-W	-	-	RFQ
B	PS360FMIR6-W	-	-	RFQ
A	PS330FMIR6-W	3	240V	RFQ
A	PS4100FMIR9-W	4	240V	RFQ
A	PS430FMIR7-W	4	480V	RFQ
A	PS430FMIR9-W	4	240V	RFQ
A	PS420FMIR7-W	4	240V	RFQ
A	PS4100FMIR7-W	4	480V	RFQ
A	PS430FMIR3-W	4	380V	RFQ
A	PS420FMIR9-W	4	125V	RFQ
B	PS460FMIR7-W	4	480V	RFQ
A	PS4100FMIR12-W	4	120V	RFQ
B	PS460FMIR9-W	4	240V	RFQ
A	PS420FMIR12-W	4	600V	RFQ
A	PS430FMIR12-W	4	120V	RFQ
A	PS430FMIR5-W	4	600V	RFQ
A	PS420FMIR5-W	4	480V	RFQ
A	PS4100FMIR5-W	4	600V	RFQ
A	PS560FMIR5-W	5	347V	RFQ
B	PS530FMIR7-W	5	277V	RFQ
A	PS560FMIR7-W	5	277V	RFQ
A	PS560FMIR9-W	5	120V	RFQ
B	PS5100FMIR5-W	5	347V	RFQ
B	PS5100FMIR7-W	5	277V	RFQ

WOODHEAD -

130150 Series Pin And Sleeve Mecahnical Interlock

A

B

C

Style	Model	Number of Poles
A	1301500046	2	RFQ
A	1301500085	2	RFQ
A	1301500043	2	RFQ
A	1301500068	2	RFQ
B	1301500134	3	RFQ
C	1301500133	3	RFQ
A	1301500165	3	RFQ
C	1301500164	3	RFQ
A	1301500196	3	RFQ
C	1301500193	3	RFQ
A	1301500166	3	RFQ
A	1301500195	3	RFQ

HUBBELL WIRING DEVICE-KELLEMS -

Circuit-Lock Watertight Mechanical Interlock Devices
Hubbell Wiring Device-Kellems Circuit-Lock watertight mechanical interlock devices are electrical receptacles to minimise circuit making or breaking under loading conditions, or making a haphazard connection. These interlocking devices feature a Plug-Check mechanism for detecting the presence of plugs, and spring loaded covers integrated with a gasket to provide a watertight seal when turned & locked. They come with a removable door for easy installation & wiring, and deliver current ratings ranging from 30 to 100A. Choose from a wide range of these mechanical interlock devices, available in 3 & 4 pole configurations. Raptor Supplies also offers mechanically interlocked receptacles having large gears, enclosed in a gearbox.

A

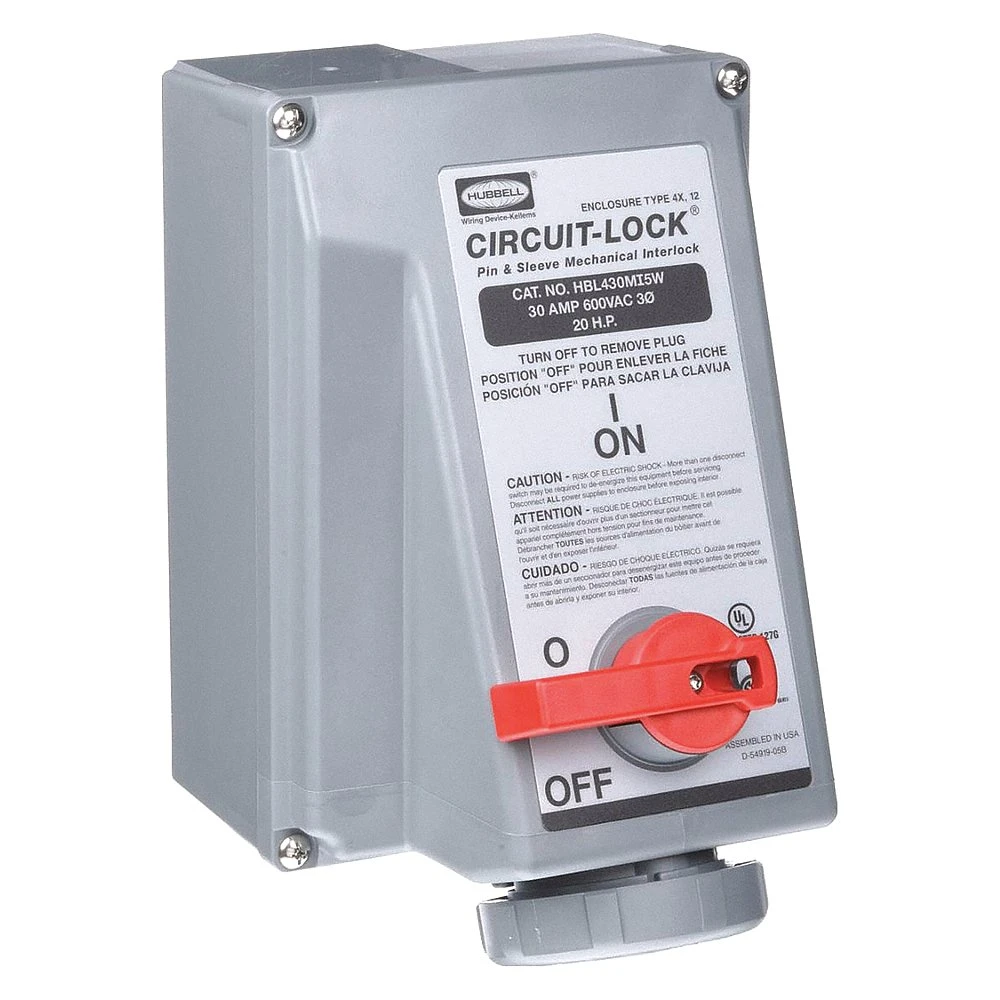

HUBBELL WIRING DEVICE-KELLEMS HBL430MI5W

B

HUBBELL WIRING DEVICE-KELLEMS HBL460MI7W

C

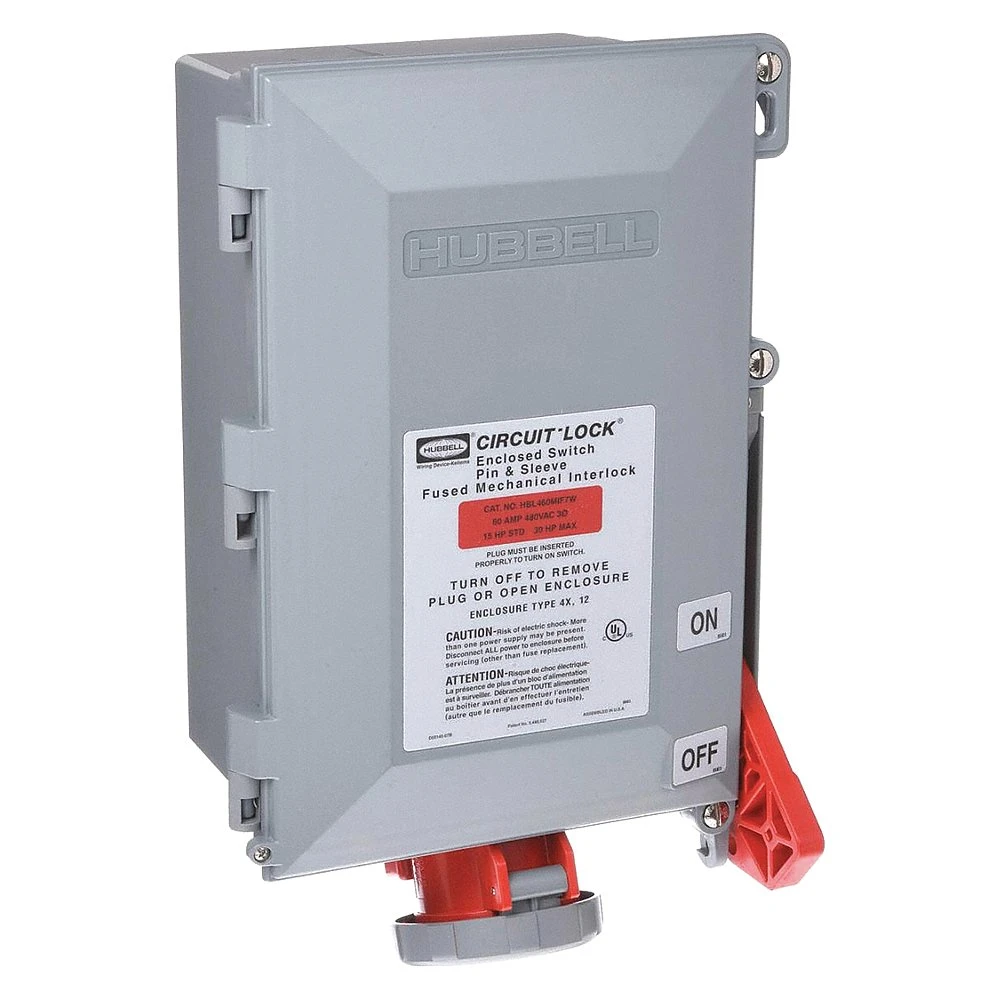

HUBBELL WIRING DEVICE-KELLEMS HBL460MIF7W

D

HUBBELL WIRING DEVICE-KELLEMS HBL560MI9W

E

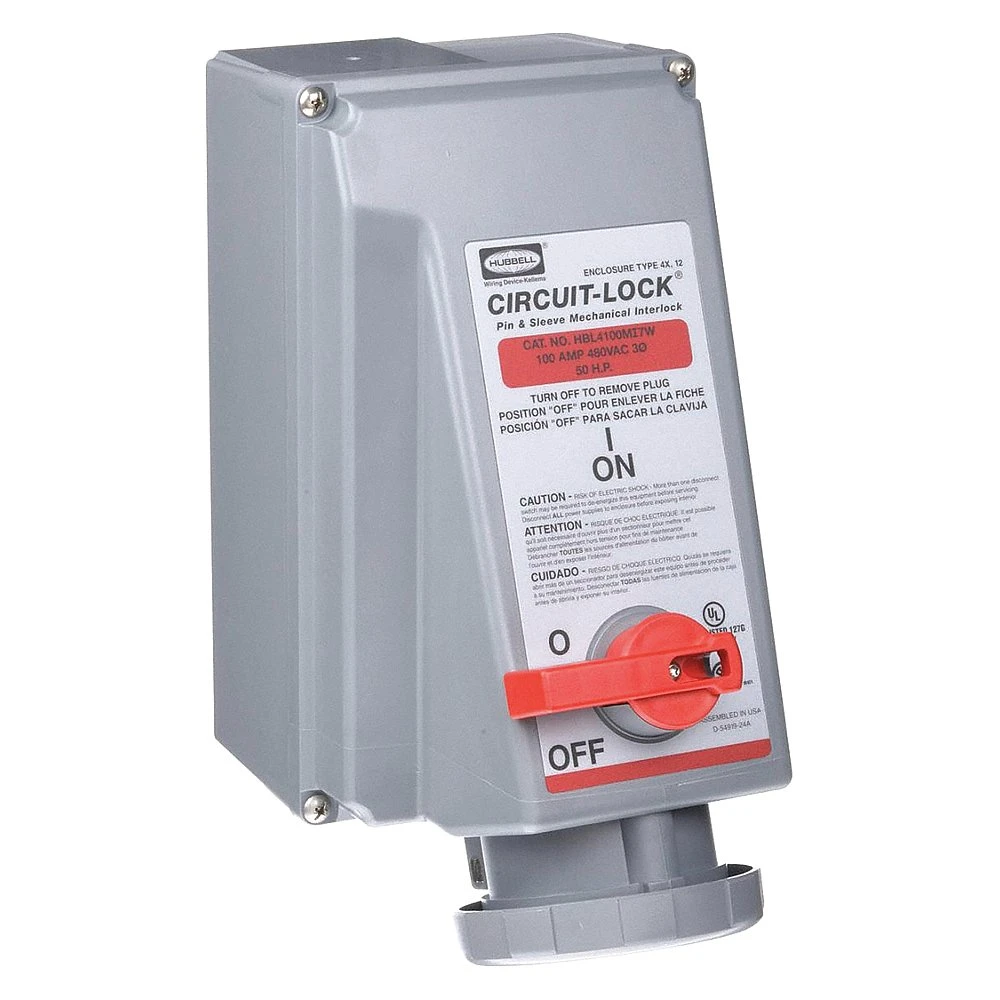

HUBBELL WIRING DEVICE-KELLEMS HBL4100MI7W

F

HUBBELL WIRING DEVICE-KELLEMS HBL430MI9W

G

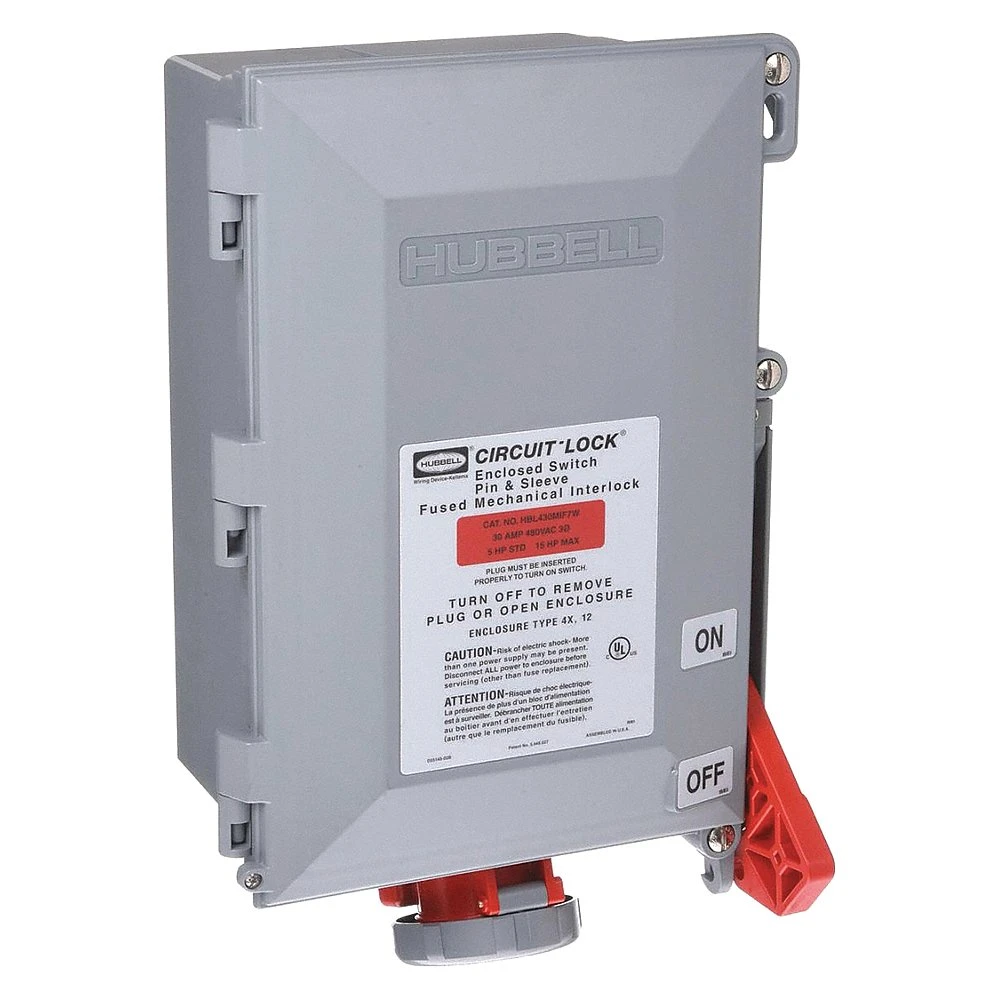

HUBBELL WIRING DEVICE-KELLEMS HBL430MI7W

H

Style	Model	Use With	Amps	Color	Voltage	Voltage Rating	Wire Size	Current Rating	HP	Price (ex. VAT)
A	HBL560MI5W	-	60	Black	347/600 VAC	347/600 VAC	#8 - #2 AWG	60 A	40	€3,094.23
B	HBL430MI5W	3D150	30	Black	600 VAC	600 VAC	#12 - #8 AWG	30 A	20	€2,205.18
C	HBL460MI7W	5Z917	60	Red	480 VAC	480 VAC	#8 - #2 AWG	60 A	30	€3,061.92
D	HBL460MIF7W	5Z917	60	Red	480 VAC	480 VAC	#8 - #2 AWG	60 A	30	€4,258.94
E	HBL560MI9W	5Z920	60	Blue	120/208 VAC	120/208 VAC	#8 - #2 AWG	60 A	15	€3,192.88
F	HBL4100MI7W	5Z926	100	Red	480 VAC	480 VAC	#3 - #1/0 AWG	100 A	50	€3,318.01
G	HBL430MI9W	5Z938	30	Blue	250 VAC	240 VAC	#12 - #8 AWG	30 A	7.5	€2,120.83
H	HBL430MI7W	5Z941	30	Red	480 VAC	480 VAC	#12 - #8 AWG	30 A	15	€2,168.57
D	HBL430MIF7W	5Z941	30	Red	480 VAC	480 VAC	#12 - #8 AWG	30 A	15	€3,859.08

KILLARK -

Pin & Sleeve Mechanical Interlock

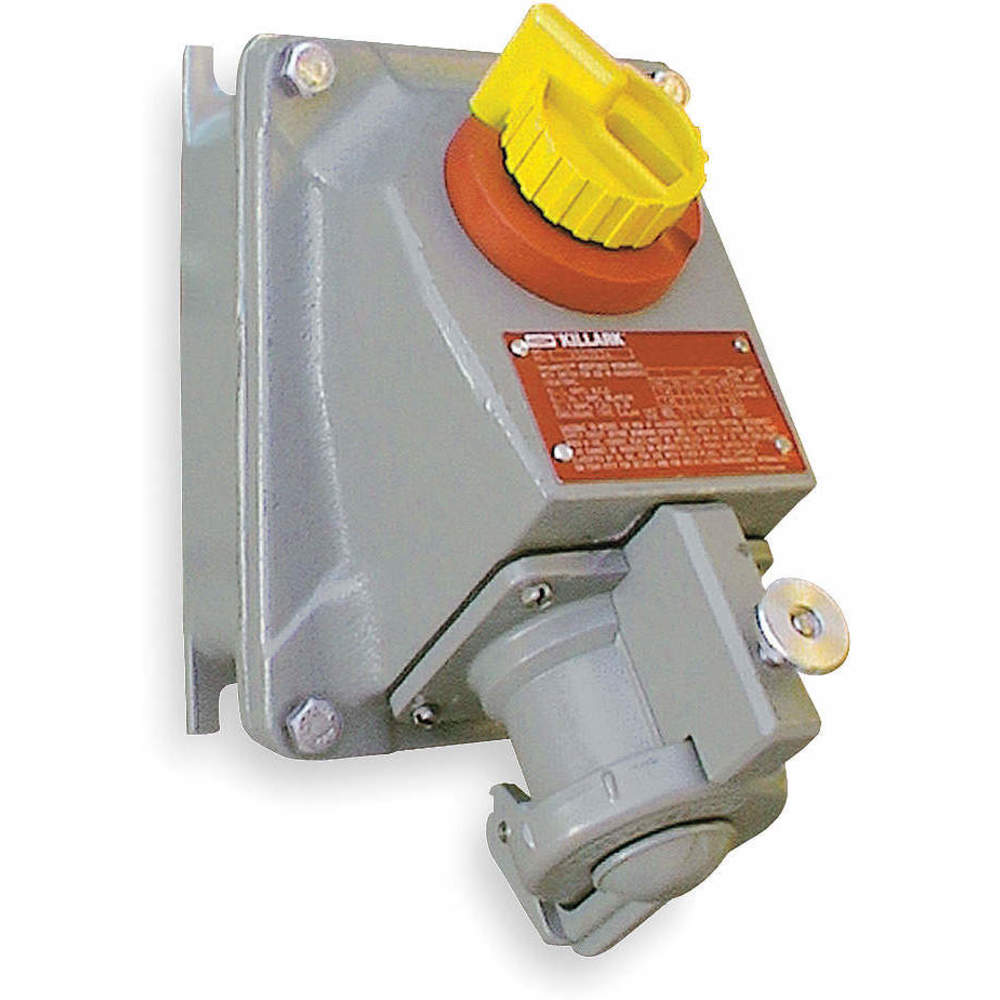

Killark pin & sleeve mechanical interlocks are suitable for supplying power to portable / fixed electrical equipment including welders, pumps, blowers and generators. These receptacles are ideal for hazardous locations and feature plug interlock mechanism that ensures the switch remains in OFF position in case of partially inserted plug. Additionally, their OFF position is pad-lockable for ensuring maintenance & safety. Choose from a wide range of these receptacles, available in 30 & 60 amperage options on Raptor Supplies. Watertight mechanical interlocks (mechanical interlock devices) featuring thermoplastic material are also available.

A

Style	Model	Amps	HP	Number of Poles	Number of Wires	Phase	Type	Use With	Price (ex. VAT)
A	VSQ3034	30	20	4	3	3	Hazardous Location	5HJ60 (VP3485)	€3,344.37
A	VWSQ3023	30	15	3	2	1	Nema 4X	2NVN4 (VP3385)	€3,027.26
A	VSQ3023	30	15	3	2	1	Hazardous Location	2NVN4 (VP3385)	€3,696.26
A	VWSQ3034	30	20	4	3	3	Nema 4X	5HJ60 (VP3485)	€3,100.55
A	VSQ6023	60	30	3	2	1	Hazardous Location	2NVP7 (VP6385)	€5,120.31
A	VWSQ6034	60	30	4	3	3	Nema 4X	5HJ62 (VP6485)	€3,505.91
A	VSQ6034	60	30	4	3	3	Hazardous Location	5HJ62 (VP6485)	€4,929.95
A	VWSQ6023	60	30	3	2	1	Nema 4X	2NVP7 (VP6385)	€3,445.54
