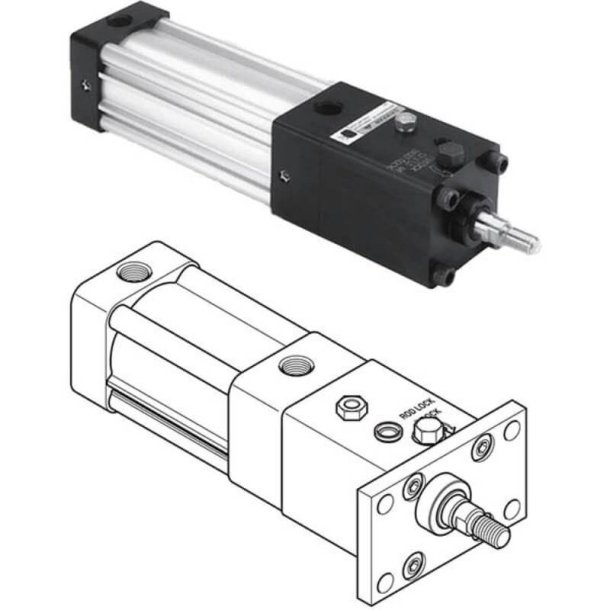

PARKER 1P4MA0039239 Pneumatic Cylinder
36"
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Bore Size | 3 1/4" |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 1/4" NPT Threaded Pneumatic Port (For Rod Lock Control) 1 1/4"-12 UNF Male Intermediate Threaded Rod-End , 2 x 1/2" NPT Threaded Pneumatic Ports 1/4" NPT Threaded Pneumatic Port (for Rod Lock Control) 1-1/4"-12 UNF Male Intermediate Threaded Rod-End |
| Design | Manual Override Rod Lock Piston Magnet "Lipseal" Piston Cushion At Both Ends Nfpa Interchangeable Model Based On Model 3.25Cj4Maj3U38Ac36.00 Repairable, Manual Override Rod Lock Piston Magnet LipSeal Piston Cushion At Both Ends NFPA Interchangeable Model Based On Model 3.25CJ4MAJ3U38AC36.00 Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 100 psig |
| Mounting | Head Rectangular Flange Mounting (NFPA MF1) |
| Mounting Mode | Head Rectangular Flange Mounting NFPA MF1 |
| Pressure | 100 psig (Max. Air Service), 60 psig (Min. Air Pressure to Release Rod Lock) |
| Shape | Rectangular |
| Stroke Length | 36" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Mounting | Rod Dia. | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0039046 | 3 22/25" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Detachable Clevis Mounting (NFPA MP2) | - | Rectangular | - | RFQ
|
 |
1P4MA0039570 | 2 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Trunnion Mounting (NFPA MT1) | - | Rectangular | €423.52 | |
 |
1P4MA0039463 | 2" | 250 psig | 1 3/8" | 6" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Rectangular Flange Mounting (NFPA MF1) | - | Rectangular | €1,314.42 | |
 |
1P4MA0039609 | 8" | 250 psig | 1" , 1" No.1 | 4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Tap Mounting (NFPA MS4) | - | Rectangular | €788.21 | |
 |
1P4MA0039081 | 17" | 250 psig | 1" | 2 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Fixed Clevis Mounting (NFPA MP1) | - | Rectangular | - | RFQ
|
 |
1P4MA0039772 | 9 1/2" | 250 psig | 1" , 1" No.1 | 5" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | No Mount (NFPA MX0) | - | Rectangular | €7,878.31 | |
 |
1P4MA0039792 | 8 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | - | Rectangular | - | RFQ
|
