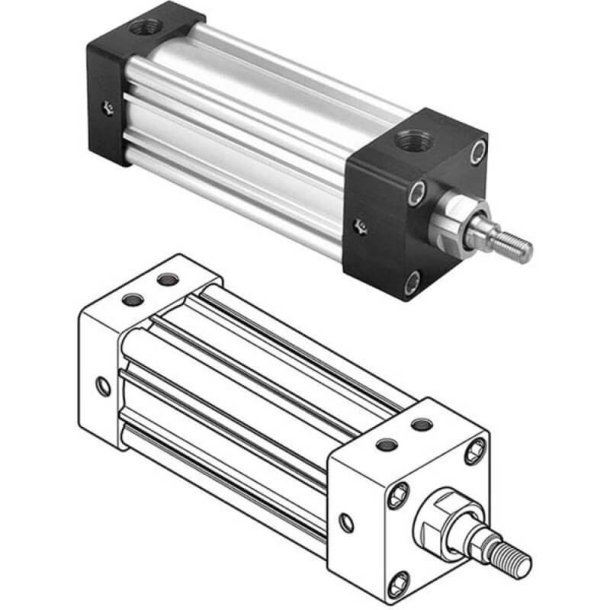

PARKER 1P4MA0039936 Pneumatic Cylinder
13"
Get it by Tuesday, Sep 1
€699.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Nfpa Interchangeable Model Based On Model 2.50T4Ma2Us14Ya13.00 Special Model Repairable |
| Dia. | 5/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing 17-4 PH Stainless Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | No Mount (NFPA MX0) |
| Mounting Mode | NO Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 13" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Mounting | Rod Dia. | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0039046 | 3 22/25" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Detachable Clevis Mounting (NFPA MP2) | - | Rectangular | - | RFQ
|
 |
1P4MA0039570 | 2 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Trunnion Mounting (NFPA MT1) | - | Rectangular | €423.52 | |
 |
1P4MA0039463 | 2" | 250 psig | 1 3/8" | 6" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Rectangular Flange Mounting (NFPA MF1) | - | Rectangular | €1,314.42 | |
 |
1P4MA0039609 | 8" | 250 psig | 1" , 1" No.1 | 4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Tap Mounting (NFPA MS4) | - | Rectangular | €788.21 | |
 |
1P4MA0039081 | 17" | 250 psig | 1" | 2 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Fixed Clevis Mounting (NFPA MP1) | - | Rectangular | - | RFQ
|
 |
1P4MA0039772 | 9 1/2" | 250 psig | 1" , 1" No.1 | 5" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | No Mount (NFPA MX0) | - | Rectangular | €7,878.31 | |
 |
1P4MA0039792 | 8 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | - | Rectangular | - | RFQ
|
