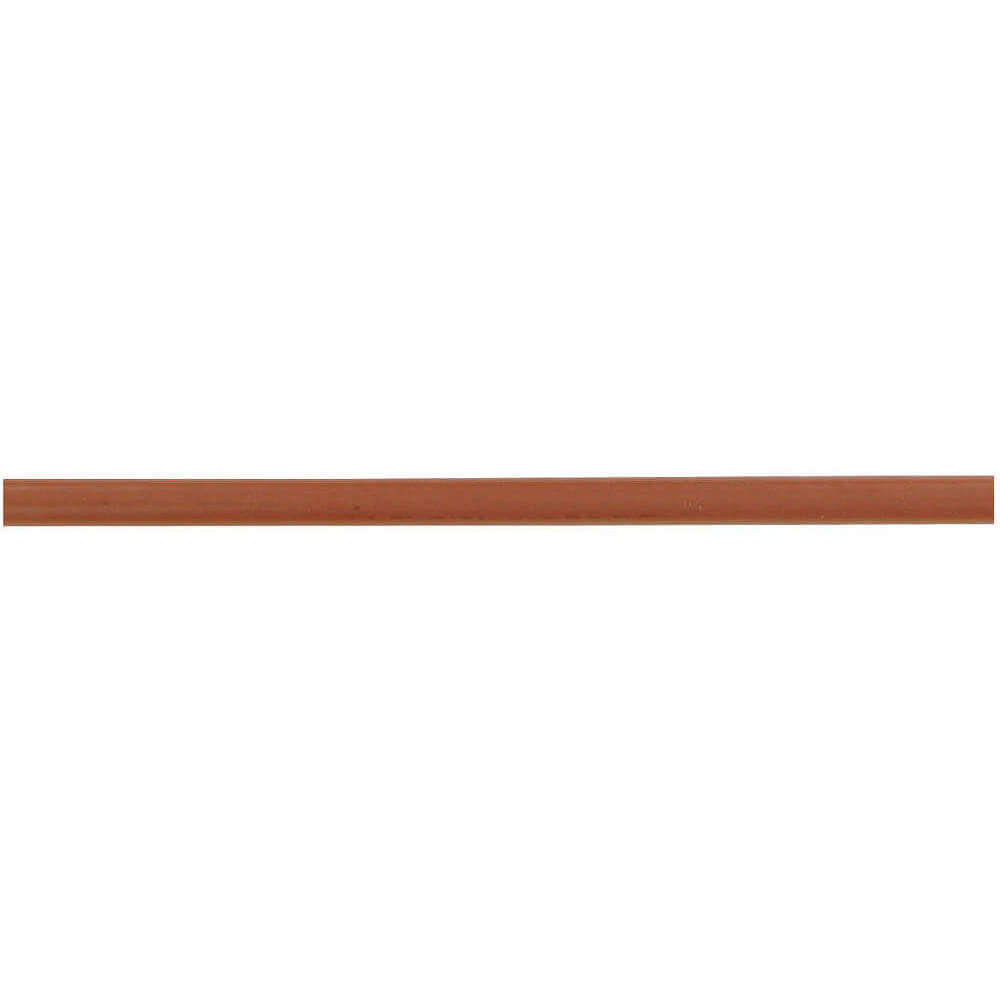

PARKER 1120-8B-BRN-500 Air Brake Tubing, 0.376 Inch Inside Diameter, Nylon
Get it by Tuesday, Dec 23
10.00% off
€1,859.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Brake Tubing |
| Air Brake Type | Type B |
| Application | Airbrake |
| Bend Radius | 2" |
| Coiled Air Tube Application | Not Applicable |
| Color | Brown |
| Compatible Tube Wall Thickness | 0.062" |
| Distinct Properties | Heat And Light Stabilized |
| Fitting Side A Connection Type | Not Applicable |
| Fitting Side A Gender | Not Applicable |
| Fitting Side A Material | Not Applicable |
| Fitting Side A Size | Not Applicable |
| Fitting Side B Size | Not Applicable |
| Fitting Side B Connection Type | Not Applicable |
| Fitting Side B Gender | Not Applicable |
| Fitting Side B Material | Not Applicable |
| Hex Size | Not Applicable |
| Hose Color | Brown |
| Includes Fittings | No |
| Inside Dia. | 0.376" |
| Jacket Color | No Jacket |
| Jacket Material | No Jacket |
| Length | 500 ft. |
| Material | Nylon |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 93°C |
| Max. Pressure Range | 100 psi to 249 psi |
| Maximum Operating Temperature | 200°F |
| Min. Bending Radius | 2" |
| Min. Burst Pressure | 950 psi |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Outside Dia. | 1/2" |
| Overall Length | 500 ft. |
| Product Type | Air Brake Tubing |
| Reinforcement | Polyester Braid |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Crack Resistant, Flame Resistant, Freeze Resistant, Fuel Resistant, Grease Resistant, Hardening Resistant, Heat Resistant, High Temperature Resistant, Humidity Resistant, Kink Resistant, Low Temperature Resistant, Non Conductive, Non Flammable, Oil Resistant, Road Salt Resistant, Salt Water Resistant, Tear Resistant, Temperature Resistant,UVResistant, Wear Resistant, Weather Resistant |
| Series | 1120 Series |
| Specific Fitting Side A Shape | Not Applicable |
| Specific Fitting Side B Shape | Not Applicable |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +200°F |
| Tube Material | Nylon |
| Tube Size | 1/2" |
| Tube Wall Thickness | 1.6" |
| Type | Type B Reinforced |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.039 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 10.31 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 53.34 |
| Ship width (cm) | 53.34 |
| HS code | 3917390050 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Dia. | Wall Thickness | Color | Bend Radius | Outside Dia. | Reinforcement | Air Brake Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1120-10B-BLK-250 | 0.441" | 0.092" | Black | 2 1/2" | - | Polyester Braid | Type B | Type B Reinforced | €1,490.17 | |
 |
1120-10B-BLU-250 | 0.441" | 0.092" | Blue | 2 1/2" | - | Polyester Braid | Type B | Type B Reinforced | €1,290.08 | |
 |
1120-10B-RED-250 | 0.441" | 0.092" | Red | 2 1/2" | 3/4" | Polyester Braid | Type B | Type B Reinforced | €1,460.50 | |
|
1120-12B-BLK-250 | 3/4" | 0.092" | Black | 3" | 3/4" | Polyester Braid | Type B | Type B Reinforced | €1,982.23 | |
 |
1120-12B-GRN-250 | 3/4" | 0.092" | Green | 3" | 1/8" | Polyester Braid | Type B | Type B Reinforced | €2,020.04 | |
|
1120-4A-BLK-1000 | 0.17" | 0.04" | Black | 1" | 1/4" | Not Reinforced | Type A | Type A Nonreinforced | €1,309.41 | |
|
1120-4A-BLU-1000 | 0.17" | 0.04" | Blue | 1" | 1/4" | Not Reinforced | Type A | Type A Nonreinforced | €1,407.13 |
