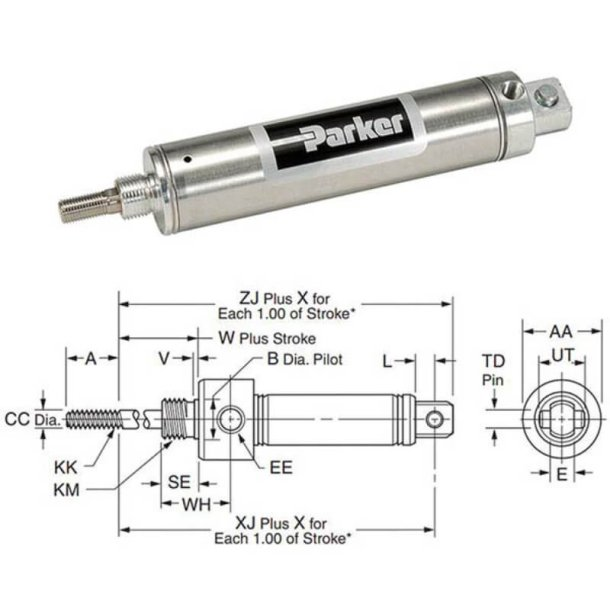

PARKER 0.75RPSRM02.25 Pneumatic Cylinder
Get it by Tuesday, Sep 1
€83.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/4" |
| Function | Single-Acting (Spring-Extend) Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Thread Length | Mounting Type | Stroke | Single Acting/double Acting | Magnetic Piston | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.75BFDSRM01.00 | 1" | - | Round Body | 3/4" | Front Block | 1" | Double Acting | Magnetic Piston | €105.83 | |
| 0.75BFDSRM02.00 | 2" | - | Round Body | 3/4" | Front Block | 2" | Double Acting | Magnetic Piston | €115.30 | |
| 0.75BFDSRM03.00 | 3" | - | Round Body | 3/4" | Front Block | 3" | Double Acting | Magnetic Piston | €109.37 | |
| 0.75BFDSRM04.00 | 4" | - | Round Body | 3/4" | Front Block | 4" | Double Acting | Magnetic Piston | €122.04 | |
| 0.75BFDSRM05.00 | 5" | - | Round Body | 3/4" | Front Block | 5" | Double Acting | Magnetic Piston | €132.07 | |
| 0.75BFDSRM06.00 | 6" | - | Round Body | 3/4" | Front Block | 6" | Double Acting | Magnetic Piston | €137.62 | |
| 0.75BRDSRM01.00 | 1" | - | Round Body | 3/4" | Rear Block | 1" | Double Acting | Magnetic Piston | €104.11 |
