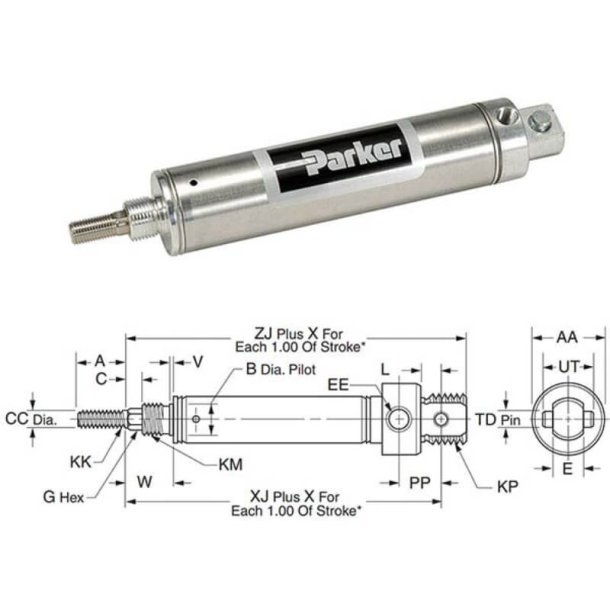

PARKER 0.75NRPSRM05.00 Pneumatic Cylinder
Get it by Tuesday, Sep 1
€89.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod End , 1/8" NPT Threaded Pneumatic Port 1/4"-28 UNF Male Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/4" |
| Function | Single Acting (Spring Return) Non Rotating Single End Hex Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 5" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Stroke Length | Mounting | Type | Rod Thread Length | Mounting Type | Stroke | Single Acting/double Acting | Magnetic Piston | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.75BFDSRM01.00 | 1" | - | Round Body | 3/4" | Front Block | 1" | Double Acting | Magnetic Piston | €98.77 | |
| 0.75BFDSRM02.00 | 2" | - | Round Body | 3/4" | Front Block | 2" | Double Acting | Magnetic Piston | €107.60 | |
| 0.75BFDSRM03.00 | 3" | - | Round Body | 3/4" | Front Block | 3" | Double Acting | Magnetic Piston | €102.08 | |
| 0.75BFDSRM04.00 | 4" | - | Round Body | 3/4" | Front Block | 4" | Double Acting | Magnetic Piston | €113.90 | |
| 0.75BFDSRM05.00 | 5" | - | Round Body | 3/4" | Front Block | 5" | Double Acting | Magnetic Piston | €123.26 | |
| 0.75BFDSRM06.00 | 6" | - | Round Body | 3/4" | Front Block | 6" | Double Acting | Magnetic Piston | €128.45 | |
| 0.75BRDSRM01.00 | 1" | - | Round Body | 3/4" | Rear Block | 1" | Double Acting | Magnetic Piston | €97.17 |
