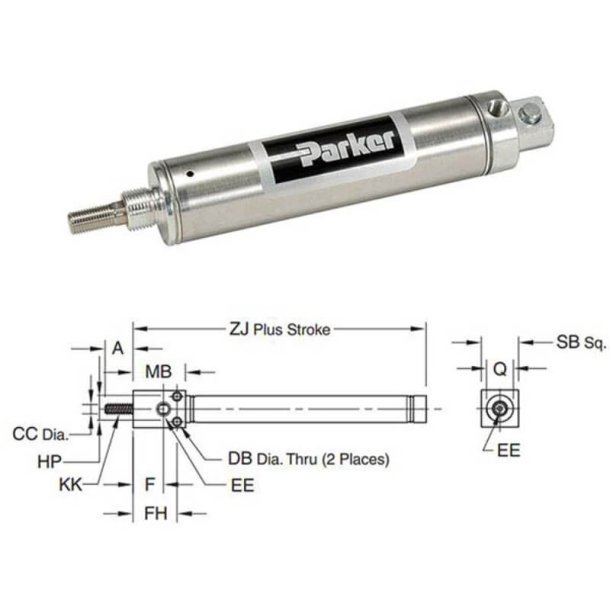

PARKER 0.31BFDSR02.50 Pneumatic Cylinder
Get it by Wednesday, Aug 26
€59.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 5/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 10-32 UNF Threaded Pneumatic Ports 5-40 UNC Male Threaded Rod-End |
| Design | "Lipseal" Piston Aluminium Head And Cap Non-Repairable |
| Dia. | 1/8" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Front Block Mounting |
| Mounting Mode | Front Block Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Rod Thread Length | Mounting Type | Bore Dia. | Stroke | Single Acting/double Acting | Cylinder Action | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0.31BFDSR01.00 | - | - | 0.38" | Front Block | 0.312" | 1" | Double Acting | Double Acting | €77.32 | |
 |
0.31BFDSR02.00 | 2" | - | 3/8" | Front Block | 0.312" | 2" | Double Acting | Double Acting | €79.09 | |
|
0.31BFDSR03.00 | 3" | - | 3/8" | Front Block | 0.312" | 3" | Double Acting | Double Acting | €83.59 | |
|
0.31BFDSR04.00 | - | - | 0.38" | Front Block | 0.312" | 4" | Double Acting | Double Acting | €90.28 | |
 |
0.31DSR01.00 | 1" | - | 3/8" | Nose | 0.312" | 1" | Double Acting | Double Acting | €45.33 | |
|
0.31DSR02.00 | 2" | - | 3/8" | Nose | 0.312" | 2" | Double Acting | Double Acting | €47.58 | |
|
0.31DSR03.00 | 3" | - | 3/8" | Nose | 0.312" | 3" | Double Acting | Double Acting | €51.87 |
