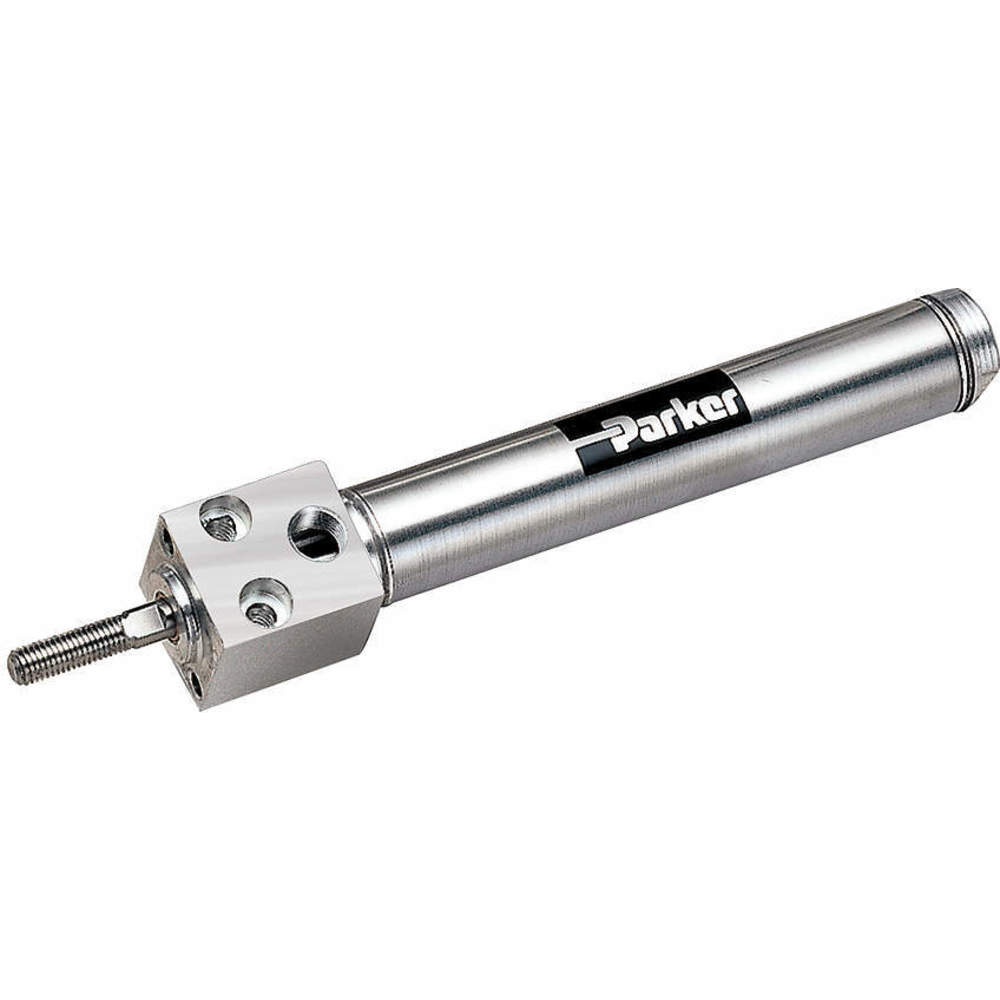

PARKER 0.31BFDSR02.00 Round Air Cylinder 5/16 Inch Bore 2 Inch Stroke
Item: AG9MQVModel: 0.31BFDSR02.00Cross Ref: 20XR40
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Cylinder |
| Air Cylinder Type | Round Body |
| Air Inlet | #10-32 UNF |
| Body Diameter | 3/8" |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 304 |
| Bore Dia. | 0.312" |
| Bore Diameter | 5/16" |
| Color | Silver |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| Cylinder Type | Round Body |
| End Cap Material | Aluminum |
| Features | Non-Switch Ready |
| Finish | Silver |
| For Fluid Type | Air |
| Inlet Gender | Female |
| Magnetic Piston | Non-Magnetic Piston |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 165°F |
| Minimum Operating Temperature | -10°F |
| Mounting Style | Block |
| Mounting Type | Front Block |
| Number Of Rods | 1 |
| Overall Height | 1/2" |
| Overall Length | 4.1" |
| Overall Width | 1/2" |
| Piston Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Port Size | #10-32 |
| Repairable Cylinder | Non Repairable |
| Rod Dia. | 1/8" |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 3/8" |
| Rod Thread Size | #5-40 |
| Series | SR Series |
| Single Acting/double Acting | Double Acting |
| Spring Retraction Force | Not Applicable |
| Stroke | 2" |
| Stroke Length | 2" |
| System Of Measurement | Inch |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Variants
| Product | Model | Stroke | Mounting Type | Magnetic Piston | Single Acting/double Acting | Rod Thread Length | Spring Retraction Force | Overall Length | Nose Mount Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0.31BFDSR01.00 | 1" | Front Block | No | Double Acting | 0.38" | Not Applicable | 3.1" | - | €66.73 | |
|
0.31BFDSR03.00 | 3" | Front Block | Non-Magnetic Piston | Double Acting | 3/8" | Not Applicable | 5.1" | - | €74.74 | |
|
0.31BFDSR04.00 | 4" | Front Block | No | Double Acting | 0.38" | Not Applicable | 6.1" | - | €77.91 | |
 |
0.31DSR01.00 | 1" | Nose | - | Double Acting | 3/8" | Not Applicable | 3" | 3/8"-24 | €39.80 | |
|
0.31DSR02.00 | 2" | Nose | Non-Magnetic Piston | Double Acting | 3/8" | Not Applicable | 4" | 3/8"-24 | €42.54 | |
|
0.31DSR03.00 | 3" | Nose | Non-Magnetic Piston | Double Acting | 3/8" | Not Applicable | 5" | 3/8"-24 | €45.60 | |
|
0.31DSR04.00 | 4" | Nose | Non-Magnetic Piston | Double Acting | 3/8" | Not Applicable | 6" | 3/8"-24 | €51.57 |
