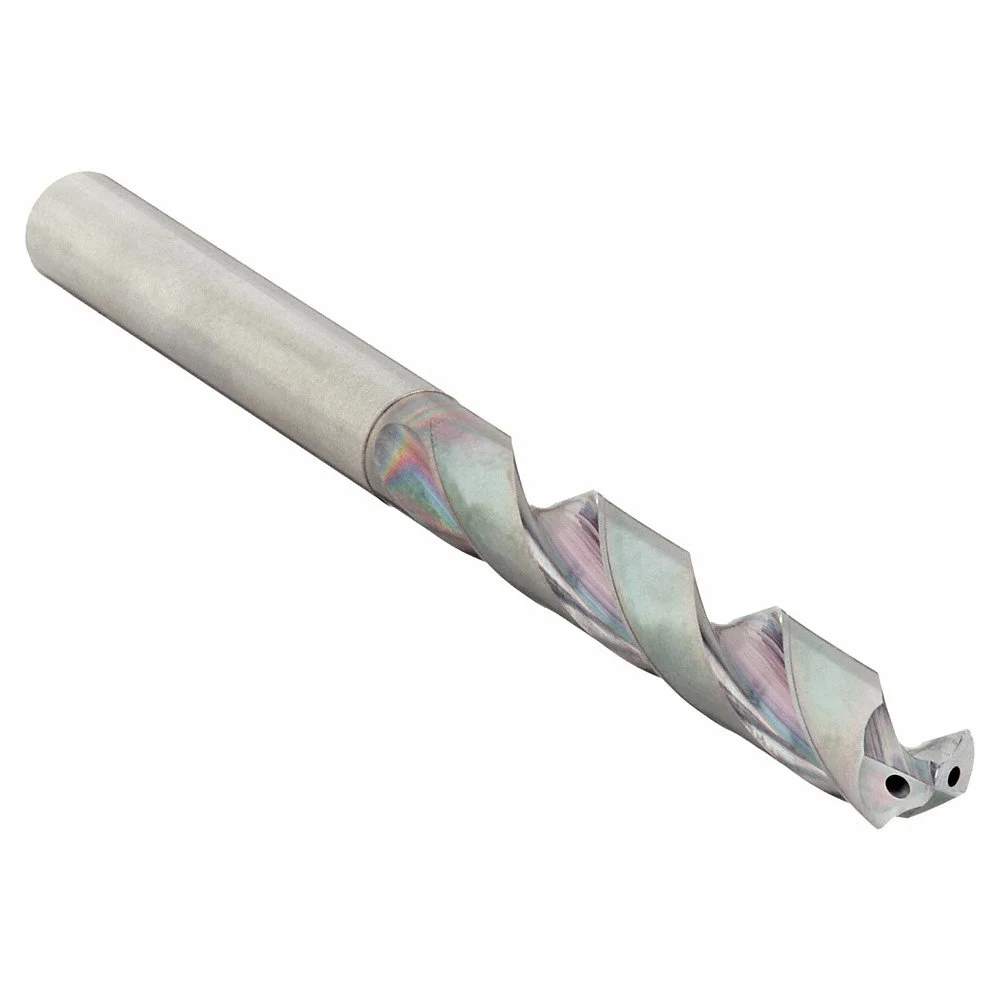

OSG 8692940 Jobber Length Drill Bit, 9.40 mm Size, Carbide, Egias Finish
Item: CT6EQBModel: 8692940Cross Ref: 405P71
7 In Stock
5.35"
0.37"
Ships within 2 days via
10.00% off
€294.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3701 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Egias |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 9.4 mm |
| Drill Diameter Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 76 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| List Number | 6510 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 76 mm |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 136 mm |
| Point Angle | 140° |
| Point Type | X Thinning Point |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Nickel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Series | 6510 Series |
| Shank Dia. | 10 mm |
| Shank Length | 60 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 9.4 mm |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Max. Drilling Depth | Flute Type | Shank Dia. | Flute Length | Overall Length | Drill Bit Size | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3316480 | 0.189 | 45 mm | Slow Spiral | 6 mm | 45 mm | 88 mm | #12 | R Thinning Point | €205.30 | |
 |
8702480 | 0.189 | 44 mm | Spiral | 6 mm | 44 mm | 95 mm | #12 | X Thinning Point | €184.48 | |
|
8692480 | 0.189 | 44 mm | Spiral | 5 mm | 44 mm | 95 mm | #12 | X Thinning Point | €184.48 | |
 |
8667480 | 0.189 | 44 mm | Spiral | 5 mm | 44 mm | 95 mm | #12 | R Thinning Point | €174.07 | |
 |
HP255-1850 | 0.185 | 36 mm | Spiral | 6 mm | 36 mm | 74 mm | #13 | R Thinning Point | €102.70 | |
|
3316470 | 0.185 | 43 mm | Slow Spiral | 6 mm | 43 mm | 88 mm | #13 | R Thinning Point | €205.30 | |
|
8702470 | 0.185 | 43 mm | Spiral | 6 mm | 43 mm | 95 mm | #13 | X Thinning Point | €184.48 |
