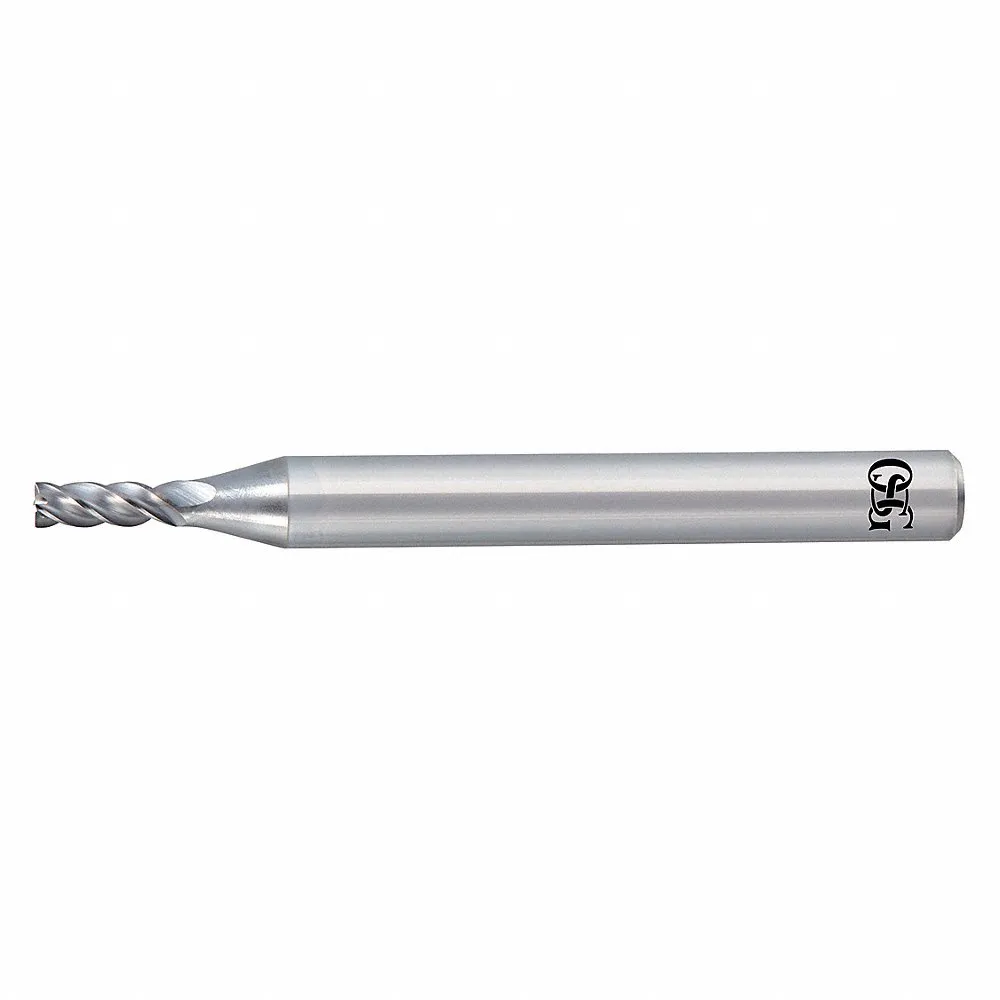

OSG 8555860 Square End Mill, Center Cutting, 4 Flutes, 6 mm Milling Dia, 13 mm Length Of Cut
Item: CT6URYModel: 8555860Cross Ref: 56GD14
7 In Stock
0.236"
0.236"
Ships within 2 days via
10.00% off
€58.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 13 mm |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Flute Type | Spiral |
| Material | Carbide |
| Max. Helix Angle | 40° |
| Milling Dia. | 6 mm |
| Min. Helix Angle | 37° |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Number Of Flutes | 4 |
| Overall Length | 60 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, M, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | H, N, P, S |
| Shank Dia. | 6 mm |
| Shank Type | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Number Of Flutes | Shank Dia. | Overall Length | List Number | Helix Angle | Length Of Cut | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
402-1000 | 1" | 2 | 1" | 4" | 402 | 30° | - | 1 1/2" | €469.65 | |
 |
402-2500 | 1/4" | 2 | 1/4" | 2 1/2" | 402 | 30° | - | 3/4" | €37.48 | |
 |
402-1250 | 1/8" | 2 | 1/8" | 1 1/2" | 402 | 30° | - | 1/2" | €20.76 | |
|
402-4062 | 13/32" | 2 | 0.438" | 2 3/4" | 402 | 30° | - | 1" | €91.86 | |
|
402-9843 | 25 mm | 2 | 25 mm | 102 mm | 402 | 30° | - | 38 mm | €443.55 | |
|
402-1875 | 0.188" | 2 | 0.188" | 2" | 402 | 30° | - | 5/8" | €29.99 | |
|
402-7500 | 3/4" | 2 | 3/4" | 4" | 402 | 30° | - | 1 1/2" | €243.33 |
