Grid Coupling

TB WOODS -

G-Flex Grids

A

Style	Model	Coupling Size	Size	Gap	Max. Bore	Torque	For Hub Dia.	Hp @ Speed	Axial Motion	Price
A	1030G	1030	1030	0.13"	1 3/8"	1319 lbs.-in.	1.94"	2.1 hp @ 100 RPM	0.125"	€135.78
A	1040G	1040	1040	0.13"	1 5/8"	2204 lbs.-in.	2 1/4"	3.5 hp @ 100 RPM	0.125"	€160.46
A	1050G	1050	1050	0.13"	1 7/8"	3850 lbs.-in.	2.63"	6.1 hp @ 100 RPM	0.125"	€199.56
A	1060G	1060	1060	0.13"	2 1/8"	6054 lbs.-in.	3"	9.6 hp @ 100 RPM	0.125"	€269.63
A	1070G	1070	1070	0.13"	2 1/2"	-	-	-	-	€372.35
A	1080G	1080	1080	0.13"	3"	18144 lbs.-in.	4.13"	29 hp @ 100 RPM	0.125"	€480.43
A	1090G	1090	1090	0.13"	3 1/2"	33013 lbs.-in.	4.87"	52 hp @ 100 RPM	0.125"	€646.01
A	1100G	1100	1100	0.19"	-	55582 lbs.-in.	5.59"	88 hp @ 100 RPM	0.188"	€796.32
A	1110G	1110	1110	0.19"	4 1/2"	-	-	-	-	€1,012.30
A	1120G	1120	1120	1/4"	5"	121255 lbs.-in.	7.06"	192 hp @ 100 RPM	0.125"	€1,523.14
A	1130G	1130	1130	1/4"	6"	176129 lbs.-in.	8 14/25"	279 hp @ 100 RPM	0.125"	€2,045.78
A	1140G	1140	1140	1/4"	7 1/4"	-	-	-	-	€2,757.79

LOVEJOY -

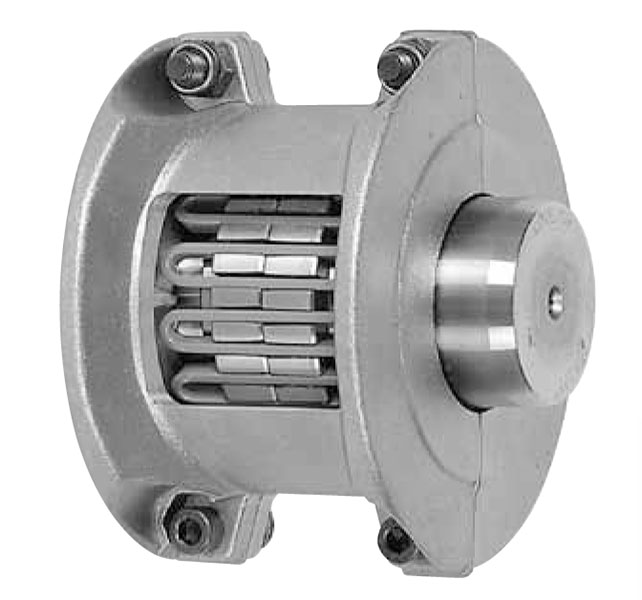

Grid Coupling Tapered Components, Grid Only Metric

A

Style	Model	Coupling Size	Height	Depth	Material	Price
A	69790405244	1020	57.15 mm	42.926 mm	Alloy, Steel	€114.76
A	69790405245	1030	66.802 mm	44.45 mm	Alloy, Steel	€144.35
A	69790405246	1040	74.676 mm	45.974 mm	Alloy, Steel	€166.55
A	69790405247	1050	90.424 mm	55.626 mm	Alloy, Steel	€207.22
A	69790405248	1060	103.632 mm	57.15 mm	Alloy, Steel	€270.16
A	69790405249	1070	114.3 mm	60.452 mm	Alloy, Steel	€370.05
A	69790405250	1080	141.224 mm	81.026 mm	Alloy, Steel	€499.56
A	69790405251	1090	160.274 mm	87.376 mm	Alloy, Steel	€673.49
A	69790405252	1100	188.214 mm	111.252 mm	Alloy, Steel	€858.54
A	69790405253	1110	206.248 mm	117.602 mm	Alloy, Steel	€1,102.77
A	69790405254	1120	233.426 mm	136.652 mm	Alloy, Steel	€1,657.84
A	69790405255	1130	271.526 mm	139.7 mm	Alloy, Steel	€2,290.66
A	69790405256	1140	309.626 mm	146.05 mm	Alloy, Steel	€3,430.42
A	69790405257	1150	362.966 mm	167.64 mm	Alloy, Steel	€5,691.91
A	69790405258	1160	408.94 mm	178.054 mm	Alloy, Steel	€5,947.02
A	69790405259	1170	458.978 mm	188.214 mm	Alloy, Steel	€10,630.90

LOVEJOY -

Grid Coupling Hubs, Metric Bore/Keyway

A

Style	Model	Coupling Size	Length Through Bore	Key Way Size	Bore Size	Nominal Torque	Max. Speed (horizontal Style Cover)	Max. Speed (vertical Style Cover)	Outside Dia. (horiontal Style Cover)	Price
A	69790405782	1020	47.75 mm	5 mm x 2.3 mm	16 mm	52 N-m	4500 RPM	6000 RPM	101.6 mm	€90.63
A	69790405796	1030	47.75 mm	10 mm x 3.3 mm	35 mm	149 N-m	4500 RPM	6000 RPM	110 mm	€132.10
A	69790405821	1070	76.2 mm	16 mm x 4.3 mm	55 mm	994 N-m	4125 RPM	5500 RPM	161.8 mm	€272.32

LOVEJOY -

Grid Coupling Hubs, Inch Bore/Keyway, Horizontal And Vertical Cover Style

A

Style	Model	Length Through Bore	Key Way Size	Nominal Torque	Max. Speed (horizontal Style Cover)	Coupling Size	Bore Size	Max. Speed (vertical Style Cover)	Outside Dia. (horiontal Style Cover)	Price
A	69790405468	1 22/25"	1/4" x 1/8"	1320 lbs.-in.	4500 RPM	1030	1 1/8"	6000 RPM	4.33"	€132.10
A	69790405232	1 22/25"	No Keyway	1320 lbs.-in.	4500 RPM	1030	Unbored	6000 RPM	4.33"	€85.13
A	69790405470	1 22/25"	5/16" x 3/32"	1320 lbs.-in.	4500 RPM	1030	1 3/8"	6000 RPM	4.33"	€132.10
A	69790405463	1 22/25"	1/4" x 1/8"	460 lbs.-in.	4500 RPM	1020	1 1/8"	6000 RPM	4"	€99.95
A	69790406142	2 1/2"	3/16" x 3/32"	6050 lbs.-in.	4350 RPM	1060	7/8"	6000 RPM	5.93"	€264.33
A	69790405485	2 1/2"	5/16" x 5/32"	6050 lbs.-in.	4350 RPM	1060	1 3/8"	6000 RPM	5.93"	€264.33
A	69790405489	2 1/2"	1/2" x 1/4"	6050 lbs.-in.	4350 RPM	1060	1 7/8"	6000 RPM	5.93"	€264.33
A	69790405491	2 1/2"	1/2" x 1/4"	6050 lbs.-in.	4350 RPM	1060	2 1/8"	6000 RPM	5.93"	€264.33
A	69790406112	2 1/2"	1/4" x 1/8"	6050 lbs.-in.	4350 RPM	1060	1"	6000 RPM	5.93"	€264.33
A	69790405486	2 1/2"	3/8" x 3/16"	6050 lbs.-in.	4350 RPM	1060	1 1/2"	6000 RPM	5.93"	€264.33
A	69790405235	2 1/2"	No Keyway	6050 lbs.-in.	4350 RPM	1060	Unbored	6000 RPM	5.93"	€182.72
A	69790405476	2"	3/8" x 3/16"	2200 lbs.-in.	4500 RPM	1040	1 1/2"	6000 RPM	4.63"	€166.55
A	69790405475	2"	5/16" x 5/32"	2200 lbs.-in.	4500 RPM	1040	1 3/8"	6000 RPM	4.63"	€174.94
A	69790405233	2"	No Keyway	2200 lbs.-in.	4500 RPM	1040	Unbored	6000 RPM	4.63"	€127.10
A	69790405473	2"	1/4" x 1/8"	2200 lbs.-in.	4500 RPM	1040	1 1/8"	6000 RPM	4.63"	€166.55
A	69790405472	2"	1/4" x 1/8"	2200 lbs.-in.	4500 RPM	1040	1"	6000 RPM	4.63"	€166.55
A	69790406108	2.38"	1/4" x 1/8"	3850 lbs.-in.	4500 RPM	1050	1.188"	6000 RPM	5.43"	€202.10
A	69790405482	2.38"	3/8" x 3/16"	3850 lbs.-in.	4500 RPM	1050	1 5/8"	6000 RPM	5.43"	€202.10
A	69790405481	2.38"	3/8" x 3/16"	3850 lbs.-in.	4500 RPM	1050	1 1/2"	6000 RPM	5.43"	€202.10
A	69790405479	2.38"	1/4" x 1/8"	3850 lbs.-in.	4500 RPM	1050	1 1/4"	6000 RPM	5.43"	€202.10
A	69790406110	2.38"	3/8" x 3/16"	3850 lbs.-in.	4500 RPM	-	1.688"	6000 RPM	5.43"	€202.10
A	69790405484	2.38"	1/2" x 1/4"	3850 lbs.-in.	4500 RPM	1050	1 7/8"	6000 RPM	5.43"	€202.10
A	69790405234	2.38"	No Keyway	3850 lbs.-in.	4500 RPM	1050	Unbored	6000 RPM	5.43"	€136.03
A	69790405500	3 1/2"	1/2" x 1/4"	18150 lbs.-in.	3600 RPM	1080	2"	4750 RPM	7 16/25"	€489.49
A	69790405501	3 1/2"	1/2" x 1/4"	18150 lbs.-in.	3600 RPM	1080	2 1/8"	4750 RPM	7 16/25"	€489.49

LOVEJOY -

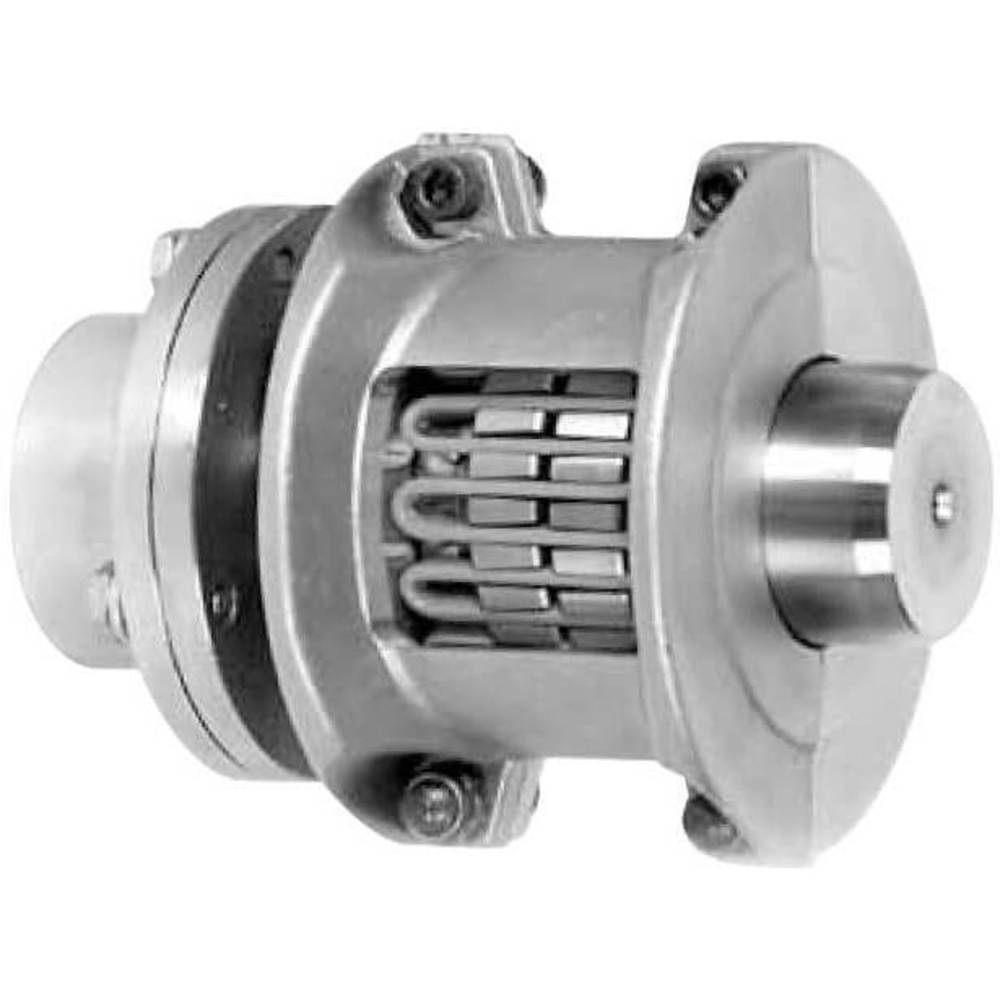

Grid Half Spacer Style Coupling Hubs With Horizontal Split Covers, Metric

A

Style	Model	Coupling Size	Nominal Torque	Set Screw Style Coupling Location Size (dimension Sl)	Max. Angular Misalignment During Operation (x-y)	Max. Bore	Dimension Fd	Max. Angular Misalignment At	Color	Price
A	69790406283	1020	48 N-m	12.7 mm	0.009"	35 mm	85.85 mm	0.002"	Gray	€167.81	RFQ
A	69790406286	1030	136 N-m	7.87 mm	0.011"	41 mm	93.73 mm	0.003"	Gray	€307.04

LOVEJOY -

Grid Coupling Shaft Hubs

A

Style	Model	Coupling Size	Length Through Bore	Key Way Size	Bore Size	Max. Bore	Dimension Fd	Dimension Hd	Height	Price
A	69790406507	1030	1.62"	1/4" x 1/8"	1"	1.63"	3.69"	2.34"	3.69"	€229.39
A	69790406506	1030	0.145"	3/16" x 3/32"	7/8"	1.63"	3.69"	2.34"	3.69"	€229.39
A	69790406511	1030	1.62"	3/8" x 3/16"	1 5/8"	1.63"	3.69"	2.34"	3.69"	€178.99	RFQ
A	69790406514	1040	0.175"	1/4" x 1/8"	1 1/8"	2.13"	4 11/25"	3.09"	-	€221.49
A	69790406520	1050	2.38"	1/4" x 1/8"	1 1/8"	2.38"	4.94"	3 11/25"	4.94"	€245.02
A	69790406535	1060	2 22/25"	3/8" x 3/16"	2 3/8"	2 22/25"	5.69"	4.06"	-	€280.89	RFQ

BROWNING -

Grid Coupling Split-Taper Grid Hub, Size 1070, Rough Bore, Carbon Steel Hub Material

Model	Item	Price (ex. VAT)
1070 HUBXP	BA4LMT	€229.92

BROWNING -

Grid Coupling Horizontal Cover Kit, Size 1070

Model	Item	Price (ex. VAT)
1070T10 COVER	BB2QVE	€123.43

BROWNING -

Grid Coupling, Style T20 Vertical Split Cover, Size 1030, Rough Bore, Carbon Steel Hub Material

Model	Item	Price (ex. VAT)
1030T20	BB2AWX	€283.18

BROWNING -

Grid Coupling, Style T20 Vertical Split Cover, Size 1040, Rough Bore, Carbon Steel Hub Material

Model	Item	Price (ex. VAT)
1040T20	BB2AWY	€350.94

BROWNING -

Grid Coupling Horizontal Cover and Grid Assembly, Size 1100

Model	Item	Price (ex. VAT)
1100T10 CGA	BB2PAB	€854.35

BROWNING -

Grid Coupling Spacer Fastener Kit, Size 1040

Model	Item	Price (ex. VAT)
1040T10 FS	BB2PPN	€21.80

BROWNING -

Grid Coupling Grid Hub, Size 1020, Rough Bore, Carbon Steel Hub Material

Model	Item	Price (ex. VAT)
1020 HUB	BB2QVC	€43.56

BROWNING -

Grid Coupling Vertical Accessory Kit, Size 1080

Model	Item	Price (ex. VAT)
1080T20 AK	BB2QVD	€43.56

BROWNING -

Grid Coupling Vertical Cover and Grid Assembly, Size 1040

Model	Item	Price (ex. VAT)
1040T20 CGA	BB2QVG	€179.11

BROWNING -

Grid Coupling, Style T20 Vertical Split Cover, Size 1080, Rough Bore, Carbon Steel Hub Material

Model	Item	Price (ex. VAT)
1080T20	BA9XKJ	€1,031.03

BROWNING -

Grid Coupling Vertical Cover and Grid Assembly, Size 1060

Model	Item	Price (ex. VAT)
1060T20 CGA	BB2QVH	€280.74

BROWNING -

Grid Coupling Vertical Accessory Kit, Size 1040

Model	Item	Price (ex. VAT)
1040T20 AK	BB2RGR	€21.80

BROWNING -

Grid Coupling Vertical Cover and Grid Assembly, Size 1080

Model	Item	Price (ex. VAT)
1080T20 CGA	BB2RGX	€517.95

BROWNING -

Grid Coupling Horizontal Cover Kit, Size 1020

Model	Item	Price (ex. VAT)
1020T10 COVER	BB2XKD	€43.56

BROWNING -

Grid Coupling Vertical Cover and Grid Assembly, Size 1030

Model	Item	Price (ex. VAT)
1030T20 CGA	BB2XKL	€157.31
