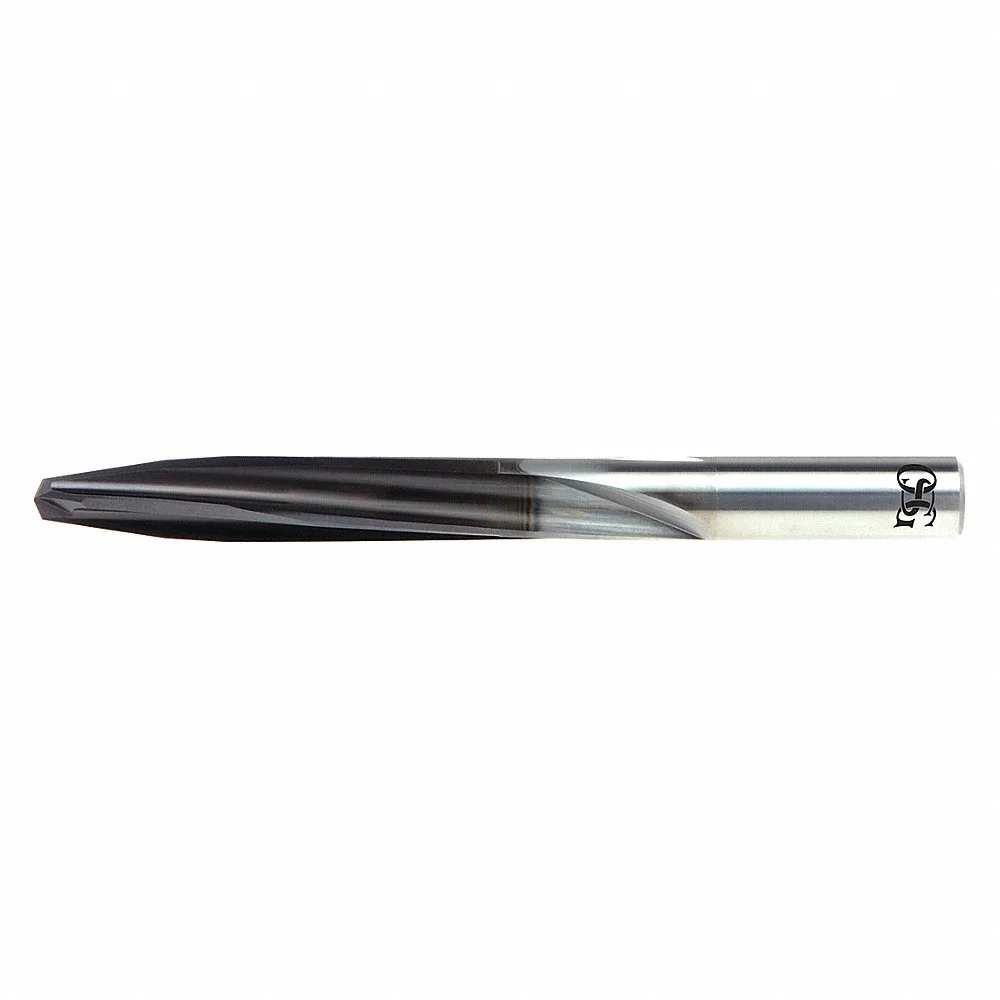

OSG 752019216 Jobber Drill Bit, 4.86 mm Drill Bit Size, 76.20 mm Overall Length
Item: CT6CBCModel: 752019216Cross Ref: 54LR73
7 In Stock
0.1915"
0.191"
Ships within 2 days via
10.00% off
€356.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1913 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 4.86 mm |
| Flute Length | 27.9 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 5° |
| List Number | 7520 |
| Material | Carbide |
| Material - Machining | Carbide |
| Max. Drilling Depth | 27.9 mm |
| Mfr. Series | Exopro Aero-LHX Series |
| Number Of Flutes | 2 |
| Overall Length | 76.2 mm |
| Point Angle | 130° |
| Point Type | Facet |
| Series | EXOPRO AERO-LHX Series |
| Shank Dia. | 4.7 mm |
| Shank Length | 48.3 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Cutting Direction | Max. Drilling Depth | Overall Length | Flute Length | Flute Type | Coolant Fed | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8673040 | 0.4094 | Right | 71 mm | 118 mm | 71 mm | Spiral | Non-Coolant Through | 12 mm | €255.29 | |
 |
8668075 | 0.4232 | Right Hand | 86 mm | 146 mm | 86 mm | Spiral | Coolant Through | 11 mm | €373.14 | |
|
8673090 | 0.4291 | Right | 71 mm | 118 mm | 71 mm | Spiral | Non-Coolant Through | 12 mm | €266.83 | |
 |
8693280 | 0.5039 | Right Hand | 103 mm | 167 mm | 103 mm | Spiral | Coolant Through | 13 mm | €472.95 | |
 |
HP245-5079 | 0.5079 | Right Hand | 77 mm | 124 mm | 77 mm | - | Non-Coolant Through | 14 mm | €270.61 | |
|
8668370 | 0.5394 | Right Hand | 110 mm | 176 mm | 110 mm | Spiral | Coolant Through | 14 mm | €508.26 | |
|
651012511 | 0.1252 | Right Hand | 29 mm | 86 mm | 29 mm | Spiral | Coolant Through | 3.2 mm | €178.93 |
