OSG Non Coolant Through Solid Carbide Jobber Length Drill Bits

Filter

Style	Model	Max. Drilling Depth	Flute Length	Shank Length	Size	Primary Material Application Iso Code	Drill Dia. Tolerance	Drill Bit Size	Finish-machining	Price
A	HP245-0394	9 mm	9 mm	29 mm	1 mm	H, K, P	0.002 mm to 0.012 mm	1 mm	TiAlN	€51.97
A	HP245-0433	9 mm	9 mm	29 mm	1.1 mm	H, K, P	0.002 mm to 0.012 mm	1.1 mm	TiAlN	€51.97
B	HP245-0469	11 mm	11 mm	27 mm	0.047"	H, K, P	0.002 mm to 0.012 mm	3/64"	TiAlN	€51.97
A	HP245-0512	11 mm	11 mm	27 mm	1.3 mm	H, K, P	0.002 mm to 0.012 mm	1.3 mm	TiAlN	€51.97
A	HP245-0472	11 mm	11 mm	27 mm	1.2 mm	H, K, P	0.002 mm to 0.012 mm	1.2 mm	TiAlN	€53.70
A	HP245-0551	12 mm	12 mm	26 mm	1.4 mm	H, K, P	0.002 mm to 0.012 mm	1.4 mm	TiAlN	€45.31
A	HP245-0591	12 mm	12 mm	33 mm	-	H, K, P	0.002 mm to 0.012 mm	1.5 mm	TiAlN	€45.31
C	3318210	12 mm	12 mm	30 mm	2.1 mm	H	-0.014 mm to 0 mm	2.1 mm	WXS	€160.38
D	HP700-2500	12.7 mm	1/2"	25.4 mm	1/4"	O	-0.001" to 0"	1/4"	TiAlN	€137.32
D	HP700-0980	12.7 mm	1/16"	25.4 mm	#40	O	-0.001" to 0"	#40	TiAlN	€76.95
D	HP700-1285	12.7 mm	1/8"	25.4 mm	#30	O	-0.001" to 0"	#30	TiAlN	€81.41
D	HP700-1610	12.7 mm	1/8"	25.4 mm	#20	O	-0.001" to 0"	#20	TiAlN	€83.22
D	HP700-1910	12.7 mm	3/16"	25.4 mm	#11	O	-0.001" to 0"	#11	TiAlN	€90.23
C	3318230	13 mm	13 mm	30 mm	2.3 mm	H	-0.014 mm to 0 mm	2.3 mm	WXS	€160.38
C	3318220	13 mm	13 mm	29 mm	2.2 mm	H	-0.014 mm to 0 mm	2.2 mm	WXS	€160.38
C	3318260	14 mm	14 mm	30 mm	2.6 mm	H	-0.014 mm to 0 mm	2.6 mm	WXS	€160.38
A	HP245-0626	14 mm	14 mm	31 mm	0.062"	H, K, P	0.002 mm to 0.012 mm	1/16"	TiAlN	€43.70
C	3318250	14 mm	14 mm	30 mm	2.5 mm	H	-0.014 mm to 0 mm	2.5 mm	WXS	€160.38
A	HP245-0669	14 mm	14 mm	31 mm	1.7 mm	H, K, P	0.002 mm to 0.012 mm	1.7 mm	TiAlN	€43.27
C	3318240	14 mm	14 mm	30 mm	2.4 mm	H	-0.014 mm to 0 mm	2.4 mm	WXS	€175.17
A	HP245-0630	14 mm	14 mm	31 mm	1.6 mm	H, K, P	0.002 mm to 0.012 mm	1.6 mm	TiAlN	€43.27

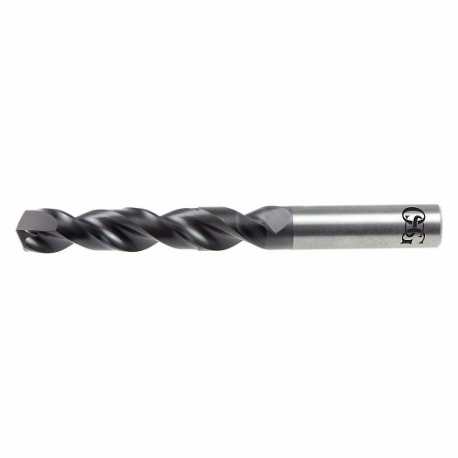

E	753209816	15.2 mm	1/16"	35.6 mm	2.5 mm	O	-0.001" to 0"	2.5 mm	Diamond	€276.12

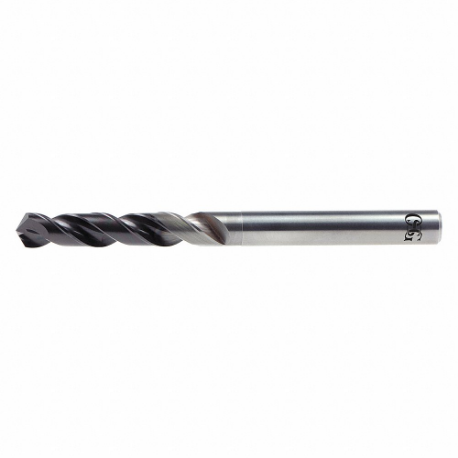

F	753009816	15.2 mm	1/16"	35.6 mm	2.5 mm	O	-0.001" to 0"	2.5 mm	Diamond	€251.26
D	HP700-2512	15.8 mm	5/8"	22.3 mm	#20	O	-0.001" to 0"	#20	TiAlN	€137.32
A	HP245-0709	16 mm	16 mm	29 mm	1.8 mm	H, K, P	0.002 mm to 0.012 mm	1.8 mm	TiAlN	€43.27
C	3318270	16 mm	16 mm	30 mm	2.7 mm	H	-0.014 mm to 0 mm	2.7 mm	WXS	€160.38
C	3318280	16 mm	16 mm	30 mm	2.8 mm	H	-0.014 mm to 0 mm	2.8 mm	WXS	€160.38
C	3318290	16 mm	16 mm	30 mm	2.9 mm	H	-0.014 mm to 0 mm	2.9 mm	WXS	€160.38
A	HP245-0748	16 mm	16 mm	29 mm	1.9 mm	H, K, P	0.002 mm to 0.012 mm	1.9 mm	TiAlN	€43.27
C	3318310	18 mm	18 mm	30 mm	3.1 mm	H	-0.018 mm to 0 mm	3.1 mm	WXS	€161.43
A	HP245-0827	18 mm	18 mm	32 mm	2.1 mm	H, K, P	0.002 mm to 0.012 mm	2.1 mm	TiAlN	€43.27
C	3318330	18 mm	18 mm	30 mm	3.3 mm	H	-0.018 mm to 0 mm	3.3 mm	WXS	€161.43
A	HP245-0780	18 mm	18 mm	34 mm	0.078"	H, K, P	0.002 mm to 0.012 mm	5/64"	TiAlN	€43.27
A	HP245-0787	18 mm	18 mm	32 mm	2 mm	H, K, P	+0.002 mm to +0.012 mm	-	-	€40.82
C	3318320	18 mm	-	30 mm	3.2 mm	H	-0.018 mm to 0 mm	3.2 mm	WXS	€161.43
C	3318360	20 mm	20 mm	30 mm	3.6 mm	H	-0.018 mm to 0 mm	3.6 mm	WXS	€170.19
G	8672290	20 mm	20 mm	46 mm	2.9 mm	K, P	-0.014 mm to 0 mm	2.9 mm	Egias	€107.25
C	3318350	20 mm	20 mm	30 mm	3.5 mm	H	-	-	-	€161.43
C	3318370	20 mm	20 mm	-	3.7 mm	H	-0.018 mm to 0 mm	3.7 mm	WXS	€170.19
G	8672260	20 mm	20 mm	46 mm	2.6 mm	K, P	-0.014 mm to 0 mm	2.6 mm	Egias	€107.80
G	8672240	20 mm	20 mm	46 mm	2.4 mm	K, P	-0.014 mm to 0 mm	2.4 mm	Egias	€107.25
G	8672250	20 mm	20 mm	46 mm	2.5 mm	K, P	-	-	-	€107.25
G	8672280	20 mm	20 mm	46 mm	2.8 mm	K, P	-0.014 mm to 0 mm	2.8 mm	Egias	€107.25
G	8672230	20 mm	20 mm	46 mm	2.3 mm	K, P	-0.014 mm to 0 mm	2.3 mm	Egias	€107.80
A	HP245-0906	20 mm	20 mm	32 mm	2.3 mm	H, K, P	0.002 mm to 0.012 mm	2.3 mm	TiAlN	€45.31
G	8672220	20 mm	20 mm	46 mm	2.2 mm	K, P	-0.014 mm to 0 mm	2.2 mm	Egias	€107.25
A	HP245-0866	20 mm	20 mm	32 mm	2.2 mm	H, K, P	+0.002 mm to +0.012 mm	-	-	€45.31
G	8672210	20 mm	20 mm	46 mm	2.1 mm	K, P	-0.014 mm to 0 mm	2.1 mm	Egias	€107.25
C	3318340	20 mm	20 mm	30 mm	3.4 mm	H	-0.018 mm to 0 mm	3.4 mm	WXS	€169.78
H	8672200	20 mm	20 mm	46 mm	2 mm	K, P	-0.014 mm to 0 mm	2 mm	Egias	€107.25
E	753212916	20.3 mm	1/8"	55.9 mm	3.28 mm	O	-0.001" to 0"	3.28 mm	Diamond	€304.34
I	3318400	22 mm	22 mm	30 mm	4 mm	H	-0.018 mm to 0 mm	4 mm	WXS	€170.19
C	3318380	22 mm	22 mm	30 mm	#25	H	-0.018 mm to 0 mm	#25	WXS	€170.19
B	HP245-0937	22 mm	22 mm	30 mm	0.094"	H, K, P	0.002 mm to 0.012 mm	3/32"	TiAlN	€52.44
A	HP245-0945	22 mm	22 mm	30 mm	2.4 mm	H, K, P	0.002 mm to 0.012 mm	2.4 mm	TiAlN	€49.66
A	HP245-0984	22 mm	22 mm	34 mm	2.5 mm	H, K, P	0.002 mm to 0.012 mm	2.5 mm	TiAlN	€49.64
A	HP245-1024	22 mm	22 mm	34 mm	2.6 mm	H, K, P	0.002 mm to 0.012 mm	2.6 mm	TiAlN	€55.13
I	3318390	22 mm	22 mm	30 mm	3.9 mm	H	-0.018 mm to 0 mm	3.9 mm	WXS	€170.19
A	HP245-1063	23 mm	-	33 mm	2.7 mm	H, K, P	0.002 mm to 0.012 mm	2.7 mm	TiAlN	€55.13
B	HP245-1102	23 mm	23 mm	33 mm	2.8 mm	H, K, P	0.002 mm to 0.012 mm	2.8 mm	TiAlN	€55.31
A	HP245-1142	23 mm	23 mm	-	2.9 mm	H, K, P	0.002 mm to 0.012 mm	2.9 mm	TiAlN	€59.16
