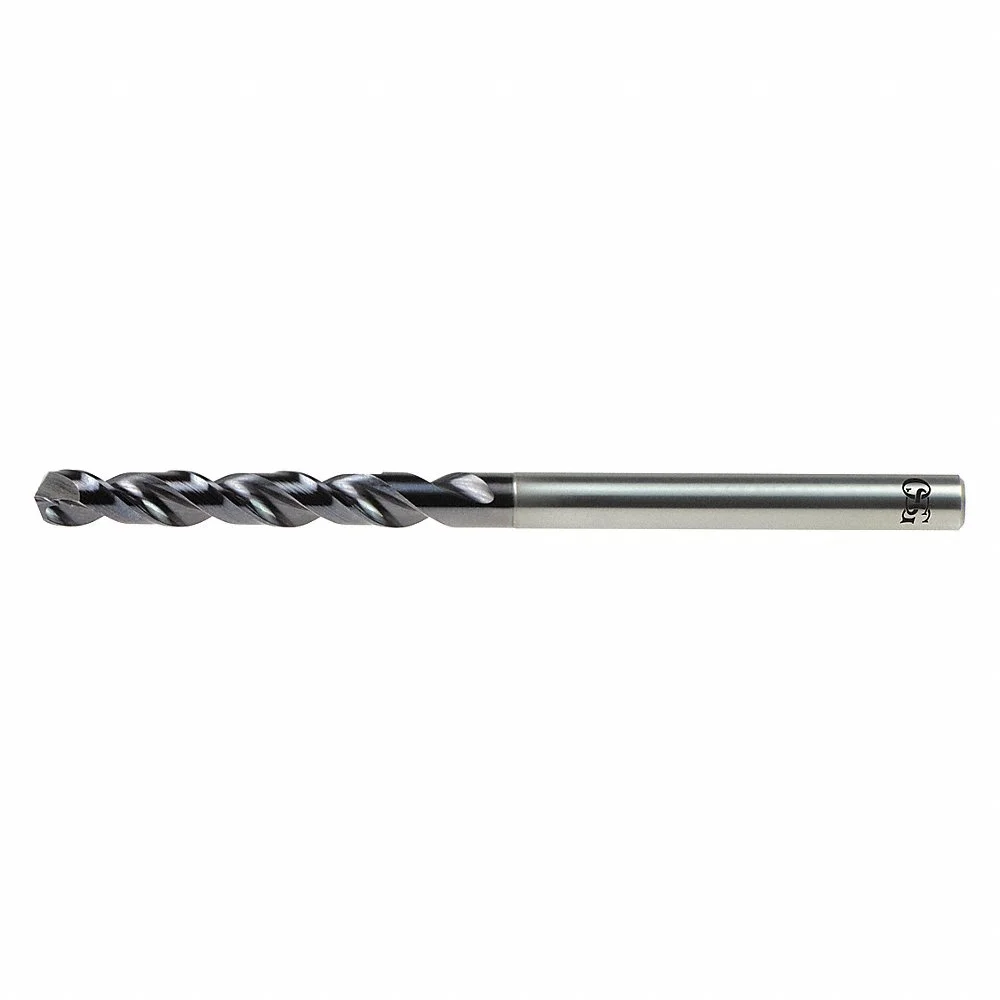

OSG 573225111 Jobber Length Drill Bit, 1/4 Inch Size Size, Carbide
Item: CT6CPPModel: 573225111Cross Ref: 35DP51
7 In Stock
0.25"
0.250"
Ships within 2 days via
10.00% off
€352.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.25 |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 1/4" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Jobber Length |
| Finish | Titanium Aluminum Nitride Coat |
| Finish - Machining | TiAlN |
| Flute Length | 2" |
| Flute Type | Fast Spiral |
| Grade | General Purpose |
| Helix Angle | 40° |
| List Number | 5732 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 50.8 mm |
| Number Of Flutes | 2 |
| Overall Length | 4" |
| Point Angle | 140° |
| Point Type | R Thinning Point |
| Primary Material Application | Carbon Fiber |
| Primary Material Application Iso Code | O |
| Secondary Material Application | Aluminum, Carbon Fiber |
| Secondary Material Application Iso Code | O |
| Series | 5732 Series |
| Shank Dia. | 6.3 mm |
| Shank Length | 50.8 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 1/4" |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Cutting Direction | Max. Drilling Depth | Overall Length | Flute Length | Flute Type | Coolant Fed | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8673040 | 0.4094 | Right | 71 mm | 118 mm | 71 mm | Spiral | Non-Coolant Through | 12 mm | €255.29 | |
 |
8668075 | 0.4232 | Right Hand | 86 mm | 146 mm | 86 mm | Spiral | Coolant Through | 11 mm | €373.14 | |
|
8673090 | 0.4291 | Right | 71 mm | 118 mm | 71 mm | Spiral | Non-Coolant Through | 12 mm | €266.83 | |
 |
8693280 | 0.5039 | Right Hand | 103 mm | 167 mm | 103 mm | Spiral | Coolant Through | 13 mm | €472.95 | |
 |
HP245-5079 | 0.5079 | Right Hand | 77 mm | 124 mm | 77 mm | - | Non-Coolant Through | 14 mm | €270.61 | |
|
8668370 | 0.5394 | Right Hand | 110 mm | 176 mm | 110 mm | Spiral | Coolant Through | 14 mm | €508.26 | |
|
651012511 | 0.1252 | Right Hand | 29 mm | 86 mm | 29 mm | Spiral | Coolant Through | 3.2 mm | €178.93 |
