OSG 5230200 Ball End Mill, Cobalt, Bright Finish, 2 Flutes, 3/16 Inch Milling Dia, 30 Deg Helix Angle
Item: CT4TXMModel: 5230200Cross Ref: 35DN13
7 In Stock
Ships within 2 days via
10.00% off
€100.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.438" |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Style | Ball Nose |
| End Type | Double End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Helix Angle | 30° |
| Length Of Cut | 7/16" |
| List Number | 523 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | General Purpose |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/16" |
| Number Of Flutes | 2 |
| Overall Length | 3.1" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 3/8" |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Double End |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Shank Dia. | List Number | Overall Length | Length Of Cut | Coolant Fed | Number Of Flutes | Primary Material Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

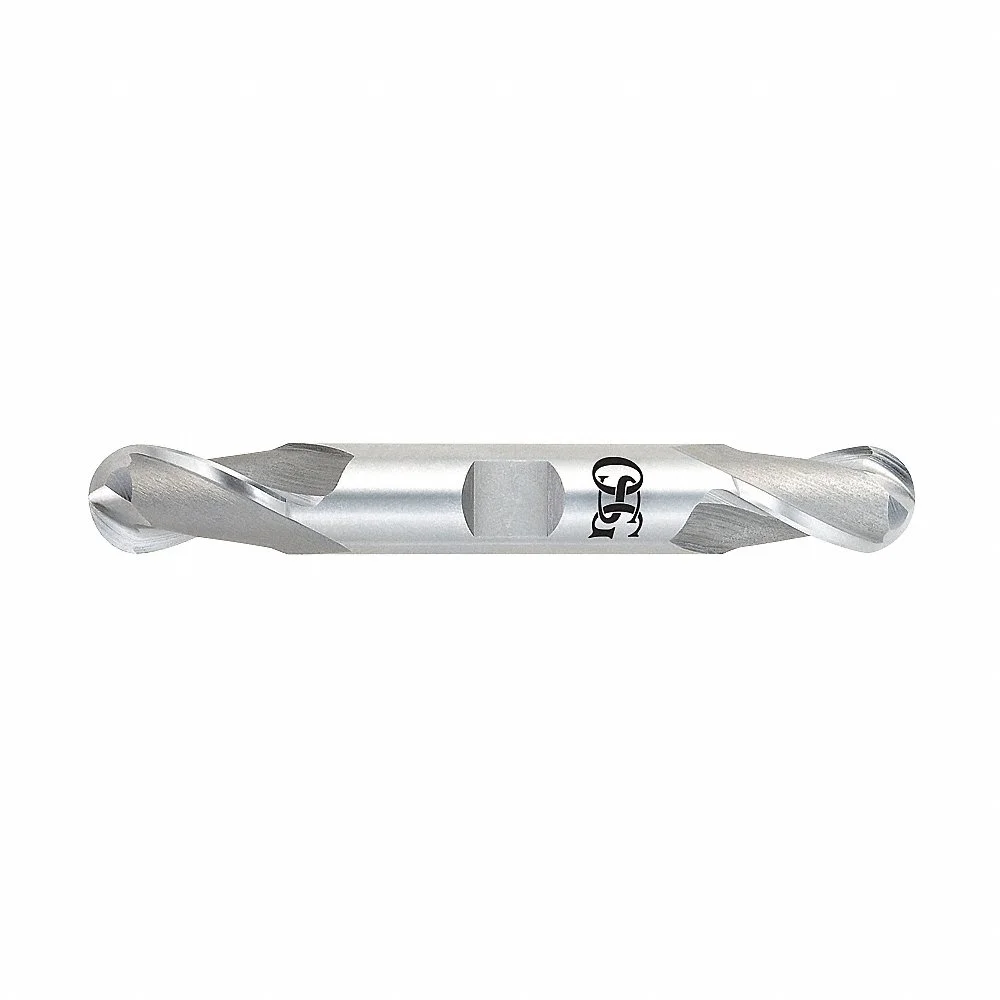

5235100 | 1" | 1" | 523 | 5 4/5" | - | Non-Coolant Through | 2 | Steel | €398.12 | |
|
5230300 | 1/4" | 3/8" | 523 | 3.1" | - | Non Coolant Through | 2 | Steel | €111.94 | |
 |

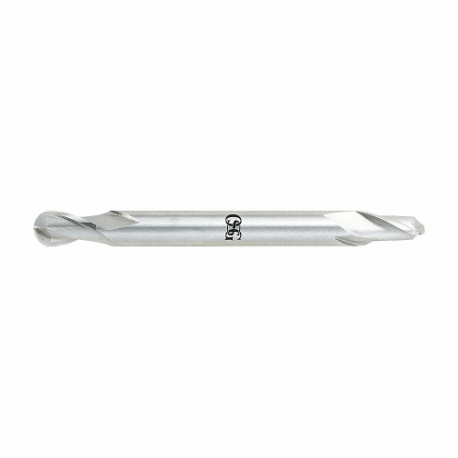

5707600 | 1/8" | 3/16" | 570 | 2" | 3/16" | Non-Coolant Through | 2 | Steel | €87.15 | |
 |

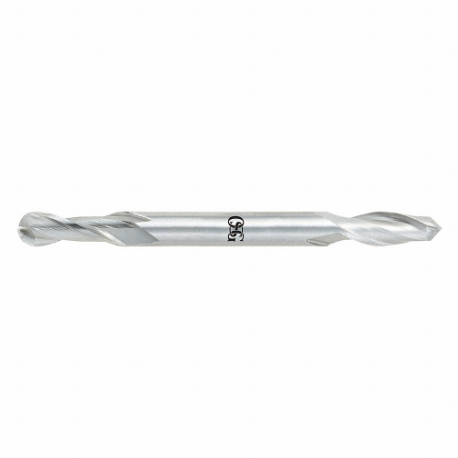

5717600 | 1/8" | 3/16" | 571 | 2 1/5" | - | Non-Coolant Through | 2 | Steel | €88.54 | |
|
5230100 | 1/8" | 3/8" | 523 | 3" | - | Non Coolant Through | 2 | Steel | €113.95 | |
|
5231100 | 1/2" | 1/2" | 523 | 3.7" | - | Non-Coolant Through | 2 | Steel | €157.25 | |
|
5718000 | 3/16" | 3/16" | 571 | 2 1/5" | - | Non Coolant Through | 2 | Steel | €88.54 |
