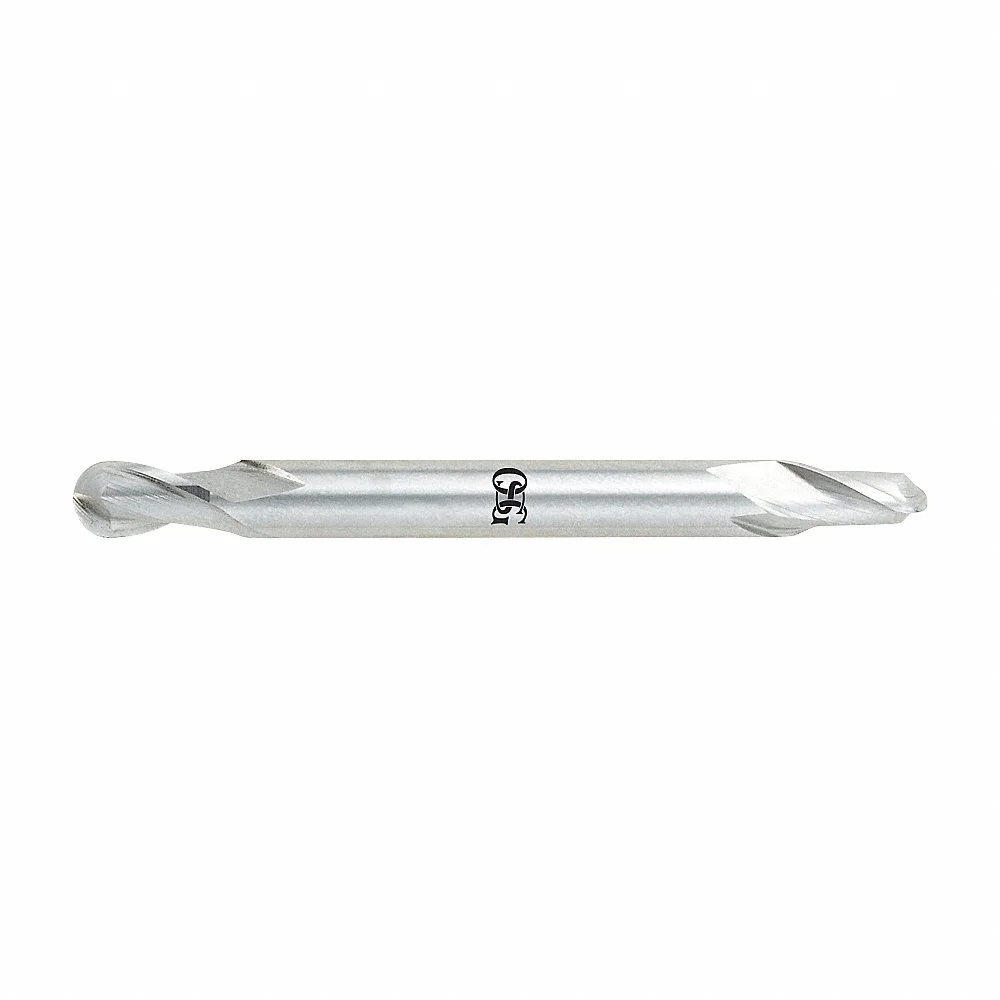

OSG 5707600 Ball End Mill, Cobalt, Bright Finish, 1/8 Inch Milling Dia, 2 Inch Overall Length
Item: CT4TXGModel: 5707600Cross Ref: 35DN65
7 In Stock
Ships within 2 days via
10.00% off
€78.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.188" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Style | Ball Nose |
| End Type | Double End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| Length Of Cut | 3/16" |
| List Number | 570 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 1/8" |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 2" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 3/16" |
| Shank Type | Straight |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Double End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Shank Dia. | List Number | Overall Length | Length Of Cut | Coolant Fed | Number Of Flutes | Primary Material Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5235100 | 1" | 1" | 523 | 5 4/5" | - | Non-Coolant Through | 2 | Steel | €398.12 | |
| 5230300 | 1/4" | 3/8" | 523 | 3.1" | - | Non Coolant Through | 2 | Steel | €111.94 | |
| 5717600 | 1/8" | 3/16" | 571 | 2 1/5" | - | Non-Coolant Through | 2 | Steel | €88.54 | |
| 5230100 | 1/8" | 3/8" | 523 | 3" | - | Non Coolant Through | 2 | Steel | €113.95 | |
| 5231100 | 1/2" | 1/2" | 523 | 3.7" | - | Non-Coolant Through | 2 | Steel | €157.25 | |
| 5718000 | 3/16" | 3/16" | 571 | 2 1/5" | - | Non Coolant Through | 2 | Steel | €88.54 | |
| 5230200 | 3/16" | 3/8" | 523 | 3.1" | 7/16" | Non Coolant Through | 2 | Steel | €111.94 |
