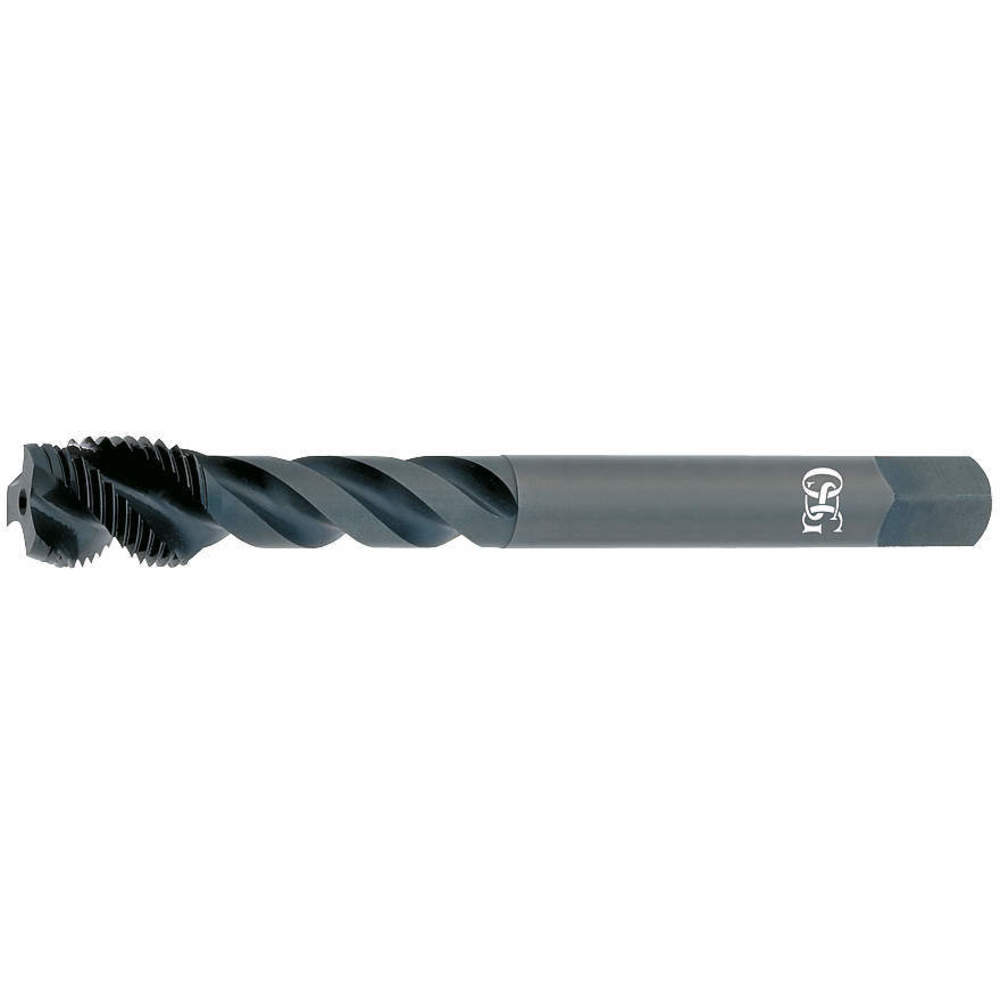

OSG 2246201 Spiral Flute Tap Modified Bottoming 1-3/8 Inch x 12 Steam Oxide
Item: AG4AHHModel: 2246201Cross Ref: 33XH84
7 In Stock
1.285"
Ships within 2 days via
10.00% off
€873.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 65% Thread Drill Size | 1.3046" |
| 75% Thread Drill Size | 1.2938 |
| Class Of Fit | Class 2B |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 1.2884", 1.2938", 1.2992", 1.3046", 1.3101" |
| Extended Neck | Yes |
| Features | Din, Hsse, Spiral Flute, Steam Oxide Surface Treatment |
| Finish | Black Oxide |
| Helix Angle | 45° |
| List Number | 220 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 220, Vanadium High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 6 11/16" |
| Pitch Diameter Limits | 2B |
| Pitch Type | 12 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 1 3/32" |
| Shank Length | 3 3/32" |
| Shank Type - Machining | Straight |
| Size | 1.375" |
| Square Size | 0.831" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1 3/8"-12 |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 1 5/16" |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 1 3/8"-12 |
| Thread Standard | Unf |
| Thread Type | Fine |
| Threads Per Inch | 12 |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 4.19 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 4.19 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
