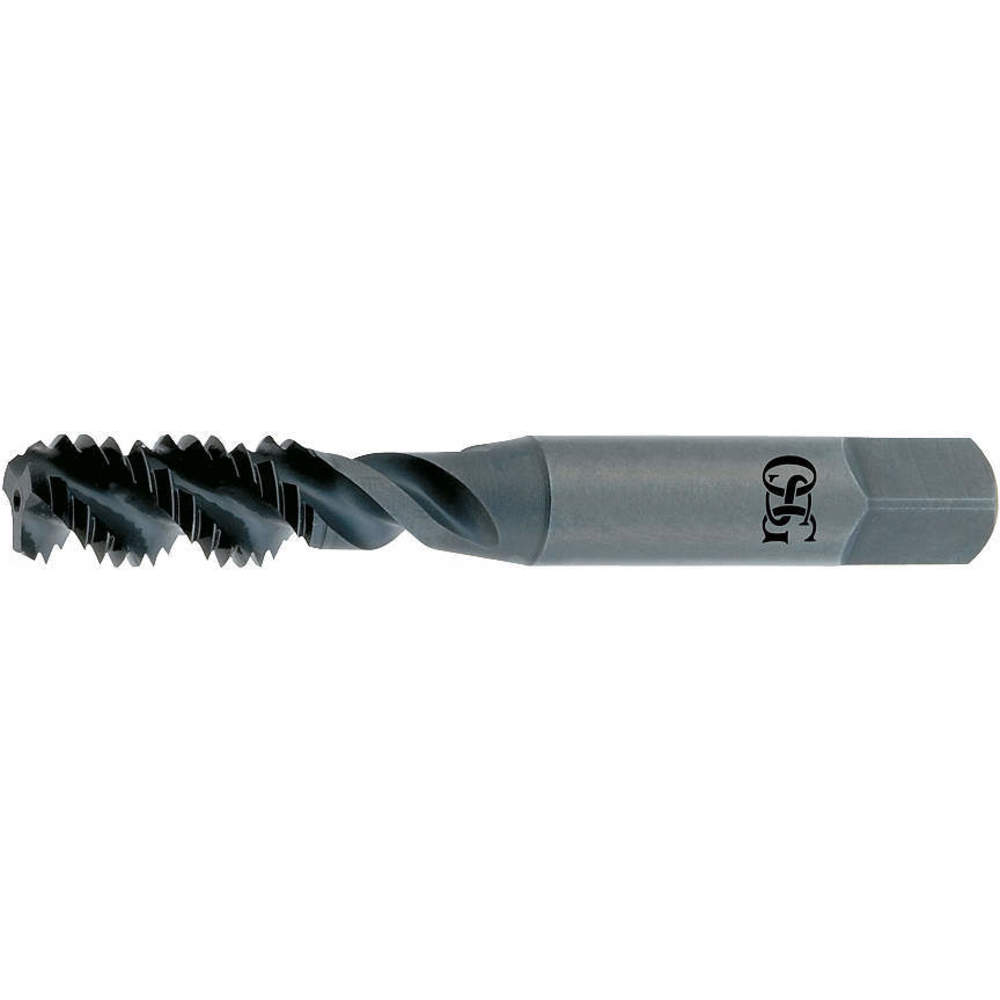

OSG 1985705 Spiral Flute Tap Plug 5x0.80mm Tin
Item: AG4BJEModel: 1985705Cross Ref: 33XP49
7 In Stock
0.162"
Ships within 2 days via
10.00% off
€37.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 4.4 mm |
| 65% Thread Drill Size | 4.3 mm |
| 75% Thread Drill Size | 4.2 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 4.17MM, 4.22MM, 4.27MM, 4.32MM, 4.38MM |
| Extended Neck | Yes |
| Features | Bright And Steam Oxide Surface Treatment, Complete Offering, For Blind Hole Applications, Hsse Material, Improves Wear Resistance For Extended Tap Life, Inch And Metric, Increased Wear Resistance Spiral Flute, S/O Increases Mechanical Lubricity Ticn Coating, Slow Spiral Efficient Chip Evacuation |
| Finish | Tin Coat |
| Helix Angle | 50° |
| List Number | 143 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 60 mm |
| Pitch Diameter Limits | D4 |
| Pitch Type | 0.8 mm |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 4.92 mm |
| Shank Length | 38 mm |
| Shank Type - Machining | Straight |
| Size | M5 |
| Spiral Direction | Right Hand |
| Square Size | 3.86 mm |
| Tap Chamfer | Plug |
| Tap Finish | Tin |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | M5 X 0.8 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 13 mm |
| Thread Limit | D4 |
| Thread Limit/class Of Fit | D4 |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 X 0.8 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
