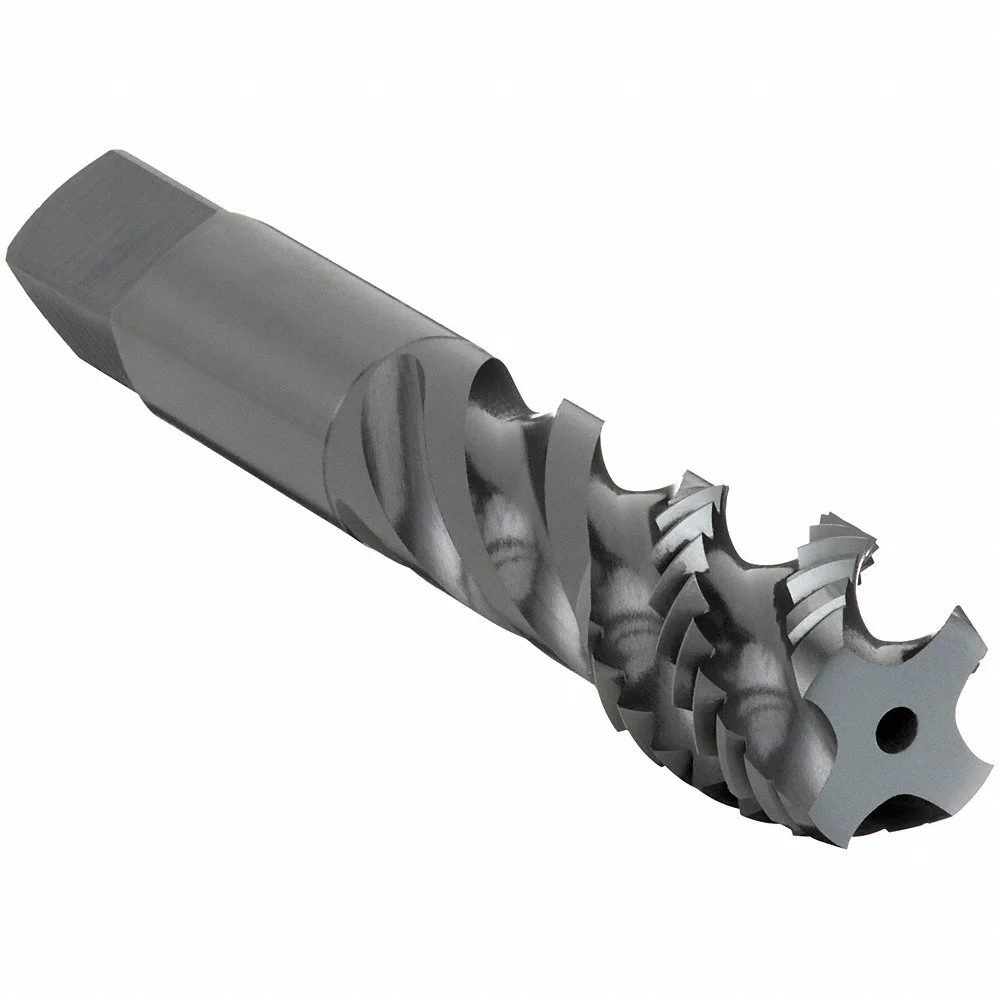

OSG 1726101 Spiral Flute Tap, 9/16-18 Thread Size, 5/8 Inch Thread Length, 3 9/16 Inch Length
Item: CT6MMLModel: 1726101Cross Ref: 2PEC8
7 In Stock
0.502"
Ships within 2 days via
10.00% off
€140.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 13.25 mm |
| 65% Thread Drill Size | 33/64" |
| 75% Thread Drill Size | 12.9 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.5048", 0.5084", 0.512", 0.5156", 0.5192" |
| Extended Neck | Yes |
| Features | Hsse Material, Spiral Flute, Steam Oxide Surface Treatment |
| Finish | Black Oxide |
| Grade | Grade 303 |
| Helix Angle | 45° |
| Material Grade - Machining | Grade 303, Vanadium High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 3 9/16" |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P1 |
| Shank Dia. | 27/64" |
| Shank Length | 1 19/32" |
| Shank Type - Machining | Straight |
| Square Size | 0.322" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 9/16"-18 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 5/8" |
| Thread Limit | H3 |
| Thread Limit/class Of Fit | H3 |
| Thread Size | 9/16"-18 |
| Thread Standard | Fine |
| Threads Per Inch | 18 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
