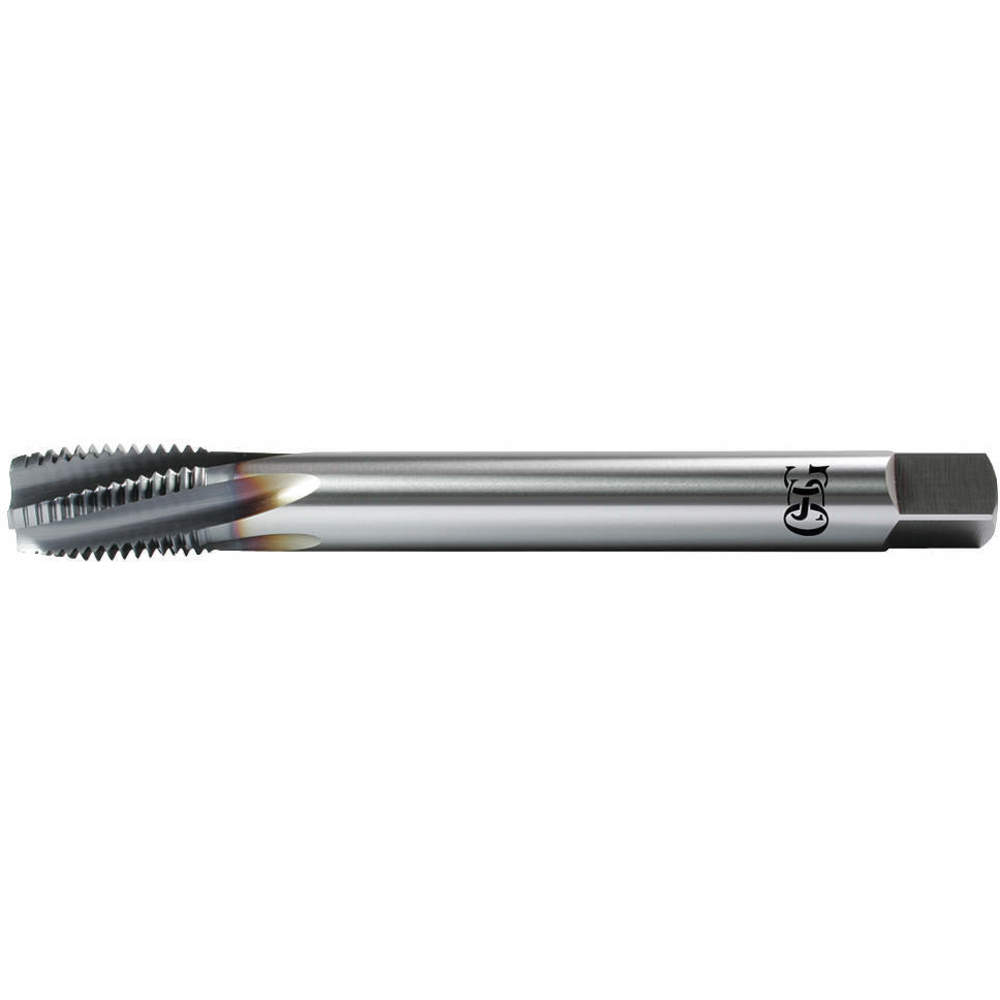

OSG 1311802408 Spiral Flute Tap Plug 16x2.00mm Ticn
Item: AG4CRQModel: 1311802408Cross Ref: 33XZ42
7 In Stock
0.544"
Ships within 2 days via
10.00% off
€204.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.5 mm |
| 65% Thread Drill Size | 9/16" |
| 75% Thread Drill Size | 14 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 13.92 mm, 14.05 mm, 14.18 mm, 14.31 mm, 14.44 mm |
| Extended Neck | Yes |
| Features | Increased Hardness, Increased Wear Resistance, Lubricity And Wear Resistance, Provides Greater Reach |
| Finish | TiCN Coated |
| Helix Angle | 15° |
| List Number | 13118 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 13118 |
| Measurement System | Metric |
| Number Of Flutes | 4 |
| Overall Length | 110 mm |
| Pitch Diameter Limits | D7 |
| Pitch Type | 2 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Steel |
| Primary Material Application Iso Code | H, K, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, M, N |
| Shank Dia. | 12.19 mm |
| Shank Length | 52 mm |
| Shank Type - Machining | Straight |
| Size | M16 |
| Square Size | 9.14 mm |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M16 x 2 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 24 mm |
| Thread Limit | D7 |
| Thread Limit/class Of Fit | D7 |
| Thread Pitch | 2 mm |
| Thread Size | M16 x 2 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.29 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
