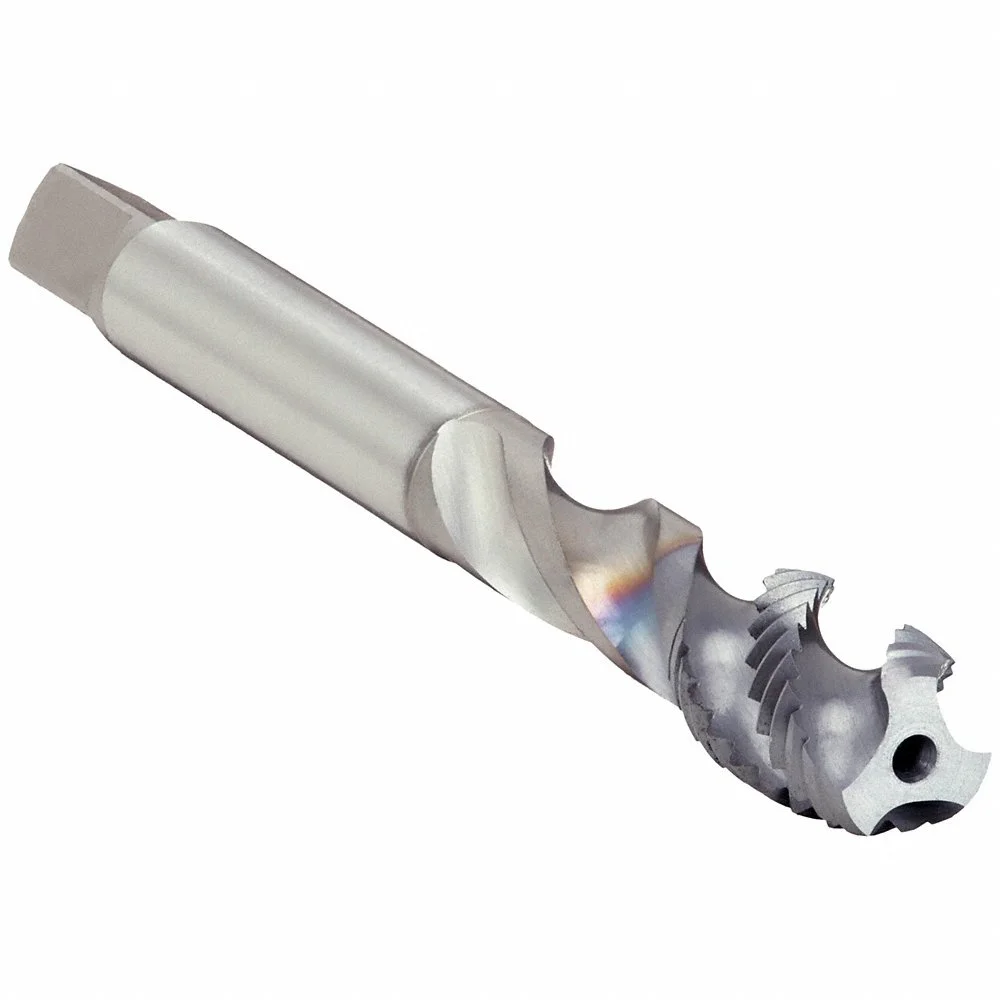

OSG 1650005508 Spiral Flute Tap, M11X1 Thread Size, 12 mm Thread Lg, TiCN, D5, Semi-Bottoming
Item: CT6NEAModel: 1650005508Cross Ref: 54MG81
7 In Stock
0.390"
0.399"
Ships within 2 days via
€93.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Features | Osg'S Proprietary V Coating, Powder Metallurgy Hss, Sharp Cutting Edge, Variable Helix Flute |
| Finish | Titanium Carbonitride Coated |
| Material Grade-machining | Grade 16500 |
| No. Of Flutes | 3 |
| Overall Length | 90 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 8.2 mm |
| Shank Length | 46.5 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 6.15 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M11 x 1 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Limit | D5 |
| Thread Limit/class Of Fit | D5 |
| Thread Pitch | 1 mm |
| Thread Size | M11 x 1 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 2 1/2" | 1/4"-20 | TiN | H3 | #7 | 1/4" | Bottoming | Non Coolant Through | €29.88 | |
 |
1645514207 | 110 mm | M14 x 2 | TiN | D7 | 12 mm | 10.89 mm | Modified Bottom | Non Coolant Through | €157.25 | |
|
1645516205 | 110 mm | M16 x 2 | TiN | D5 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645516207 | 110 mm | M16 x 2 | TiN | D7 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645518257 | 125 mm | M18 x 2.5 | TiN | D7 | 16.5 | 13.76 mm | Modified Bottom | Non Coolant Through | €241.63 | |
 |
0142008 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | Non Coolant Through | €46.91 | |
|
0142108 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | - | €46.91 |
