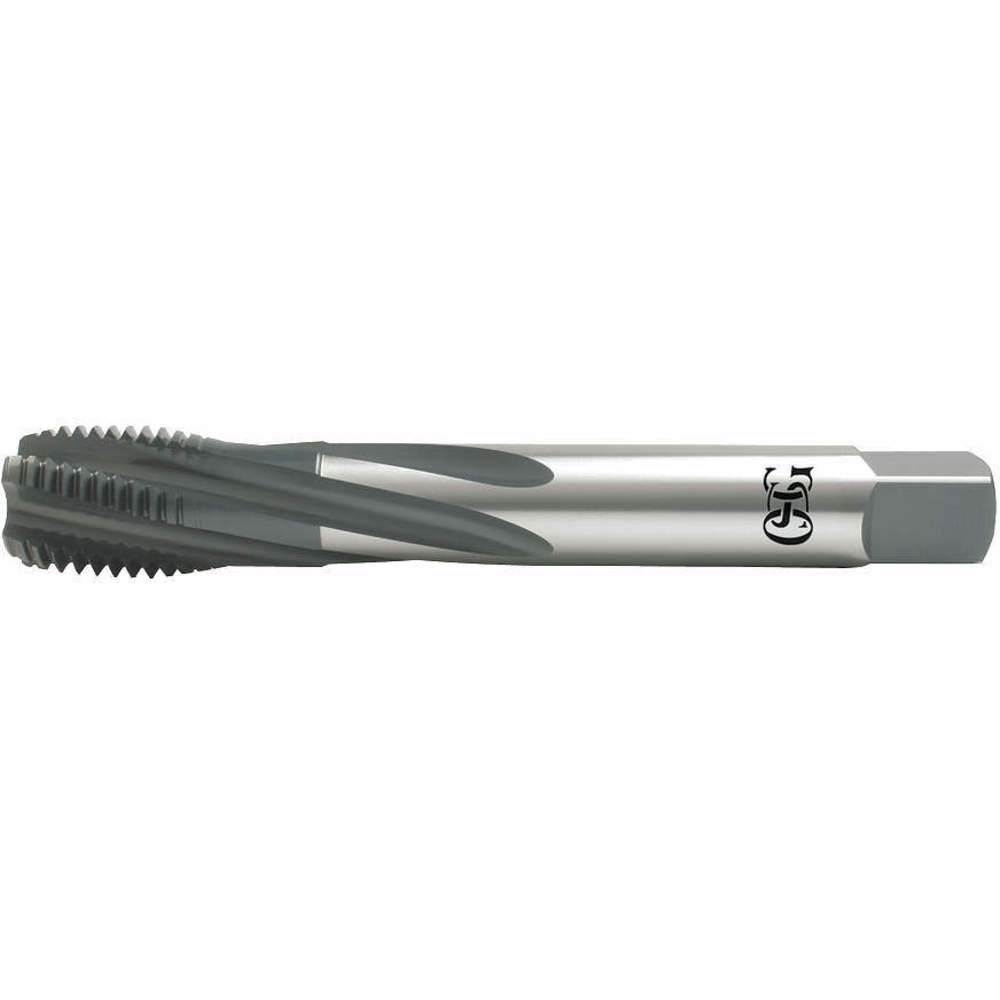

OSG 1302403001 Spiral Flute Tap Modified Bottoming 1 Inch x 12 S/o
Item: AG4AMGModel: 1302403001Cross Ref: 33XJ81
7 In Stock
0.91"
0.928"
Ships within 2 days via
10.00% off
€431.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 15/16" |
| 65% Thread Drill Size | 23.6 mm |
| 75% Thread Drill Size | 23.3 mm |
| Class Of Fit | Class 2B |
| Coolant Fed | Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 0.9134", 0.9188", 0.9242", 0.9296", 0.9351" |
| Extended Neck | Yes |
| Features | Horizontal Tapping Solutions For The Oil And Gas Industry |
| Finish | Black Oxide |
| Helix Angle | 15° |
| List Number | 13024 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 13024 |
| Number Of Flutes | 4 |
| Overall Length | 5 1/2" |
| Pitch Diameter Limits | 2B |
| Pitch Type | 12 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 51/64" |
| Shank Length | 3 1/2" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 1" |
| Square Size | 0.6" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1"-12 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 5/8" |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B, 2B |
| Thread Size | 1"-12 |
| Thread Standard | Unf |
| Thread Type | Fine |
| Threads Per Inch | 12 |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 3.81 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |

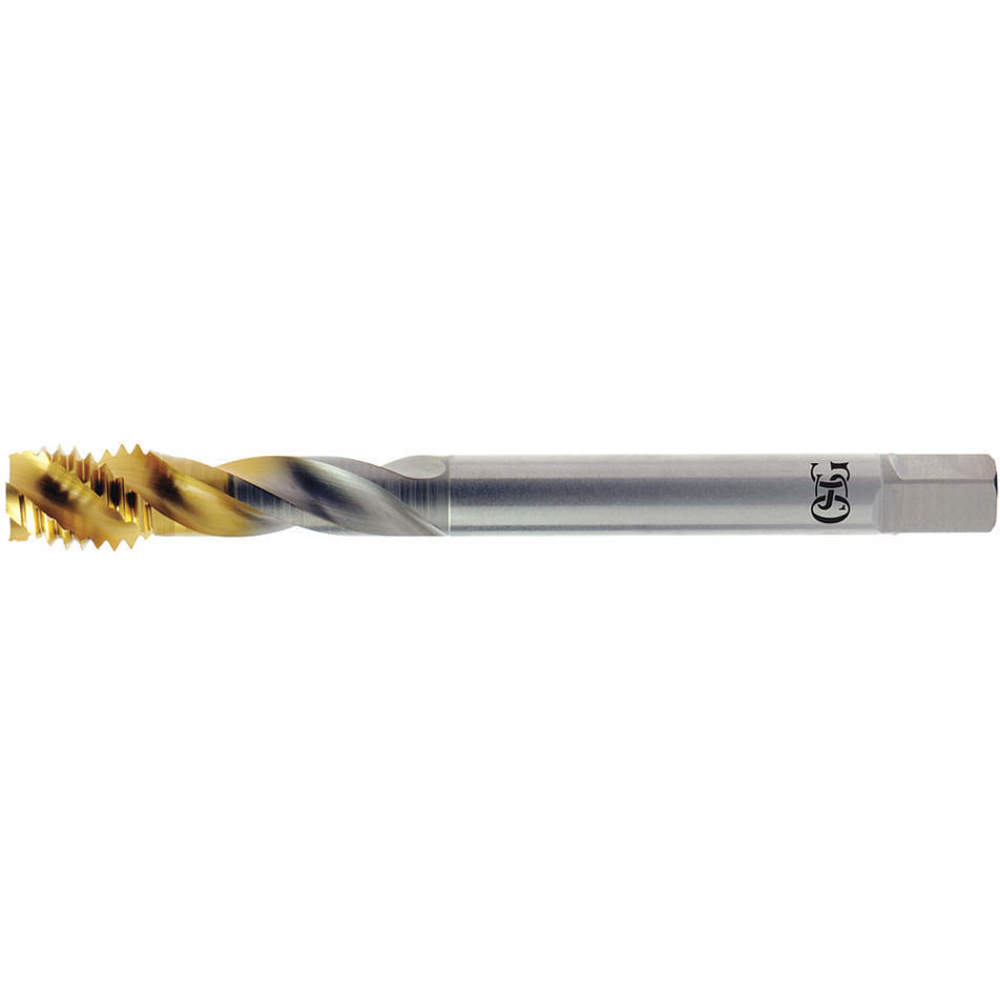

1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
