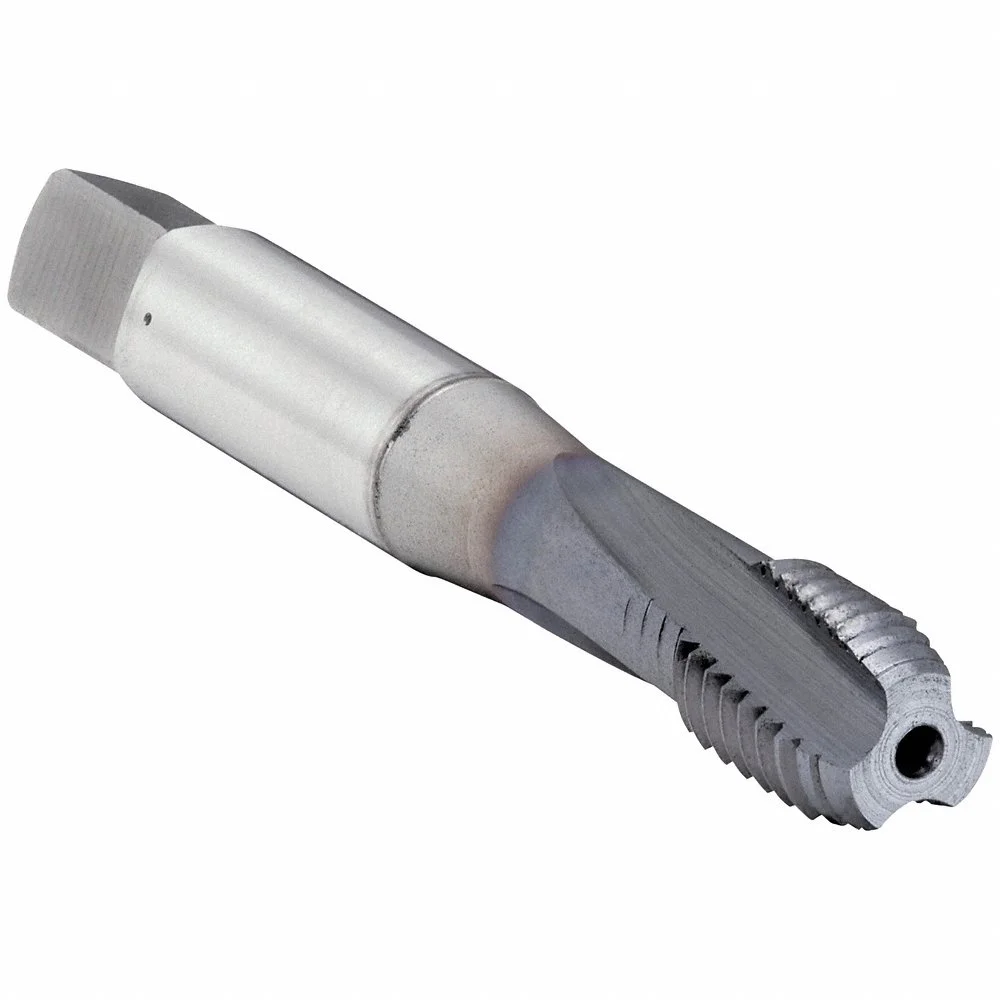

OSG 1316210508 Spiral Flute Tap, M8X1.25 Thread Size, 10 mm Thread Length, 69 mm Length, Right Hand, Ticn
Item: CT6MZRModel: 1316210508Cross Ref: 6TNW1
7 In Stock
Ships within 2 days via
10.00% off
€87.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 7.1 mm |
| 65% Thread Drill Size | I |
| 75% Thread Drill Size | H |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 6.70 mm, 6.78 mm, 6.86 mm, 6.94 mm, 7.03 mm |
| Extended Neck | Yes |
| Features | For Through Hole Applications, Increased Hardness, Lubricity, Provides Greater Reach Capability, Wear Resistance |
| Finish | TiCN |
| Helix Angle | 10° |
| Material Grade - Machining | Grade 345TI |
| Number Of Flutes | 3 |
| Overall Length | 69 mm |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 8.07 mm |
| Shank Length | 40.4 mm |
| Shank Type - Machining | Straight |
| Square Size | 6.05 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M8 x 1.25 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | D5 |
| Thread Limit/class Of Fit | D5 |
| Thread Size | M8 x 1.25 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
