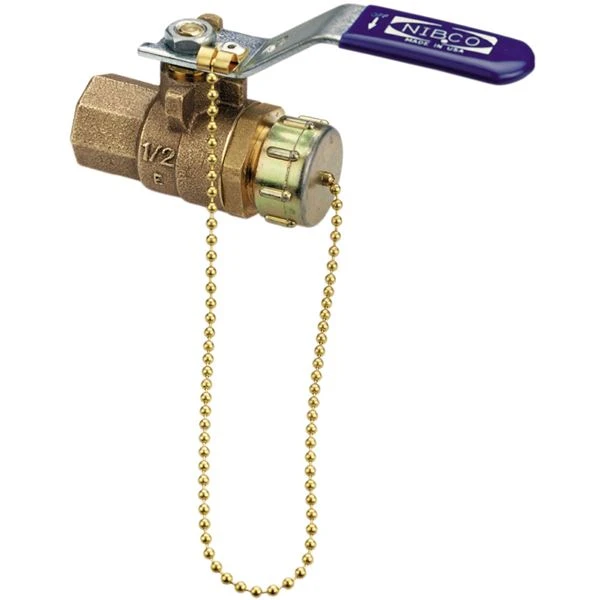

NIBCO NL95806 T-585-70-HC Two Piece Ball Valve, Female Solder Cup x Hose Cap and Chain, 1/2 Inch Size, Cast Bronze
Item: AD4CUQModel: NL95806Cross Ref: 41E383 / T-585-70-HC
7 In Stock
Ships within 2 days via
5.00% off
€84.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | Solder x GHT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Water |
| Handle | Lever |
| Handle Color | Blue |
| Handle Finish | Clear Chromate Plastisol Coated, Zinc Plated |
| Handle Height | 1 22/25" |
| Handle Material | Zinc Plated Steel |
| Handle Type | Lever |
| Hose Inside Dia. | 3/4" |
| Included Mounting | Not Applicable |
| Max. Pressure | 600 psi WOG |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 600 psi |
| Media Temp. | -20°F to +400°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 1/2" |
| Overall Length | 2.84" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 600 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Silicon Bronze |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +400°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 7.62 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Valve Size | Connection Size-side 2 | Connection Size-side 1 | Handle Height | Ball Finish | Max. Pressure | Seat Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
NL95808 | 3/4" | 3/4" | 3/4" | 2 1/4" | Chrome Plated | 600 psi WOG | PTFE | Silicon Bronze | €111.73 |
