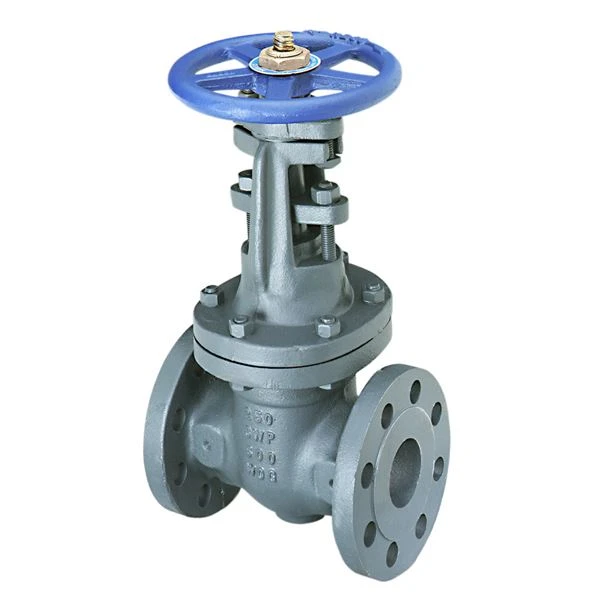

NIBCO NHAW08F F-667-O Gate Valve, Flanged, 3 Inch Size, Cast Iron
Get it by Thursday, Dec 18
€5,213.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gate Valve |
| Body Material | Cast Iron |
| Connection Type | Flanged |
| End Connection Type | F Flanged |
| Gate Stem Design | Outside Screw, Yoke |
| Height | 11.12" |
| Length | 25.59" |
| Multi-turn Bonnet Design | Bolted Bonnet |
| Multi-turn Operator | Standard Handwheel |
| Nominal Pipe Size | 3" |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Pressure Rating (cwp) | 500 psi CWP |
| Pressure Rating (swp) | 250 psi |
| Seat Material | Bronze |
| Seat/seal Material | Bronze |
| Turns/operation | Multi Turn |
| Type | Gate Valve |
| Type Of Valve | Gate |
| Valve Operator | Standard Handwheel |
| Valve Size | 3" |
| Width | 15.12" |
Shipping Info:
| Ship weight (kg) | 54.22 |
| Ship height (cm) | 28.24 |
| Ship length (cm) | 65 |
| Ship width (cm) | 38.4 |
| Country of Origin | US |
Product Variants
| Model | Connection Size | Height | Body Material | Seat Material | Connection Type | Type | Bonnet Style | Trim Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NHAW00M | 10" | 20" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €25,275.19 | |
| NHAW00D | 2" | 8" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €2,597.29 | |
| NHAW00E | 2 1/2" | 8" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €3,160.04 | |
| NHAW00N | 12" | 20" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €34,177.15 | |
| NHAW00F | 3" | 10.25" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €3,451.33 | |
| NHAW00H | 4" | 10.25" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €4,764.64 | |
| NHAW00J | 5" | 14" | Cast Iron | Bronze | Flanged | Gate Valve | Bolted | IBBM | €8,809.52 |
