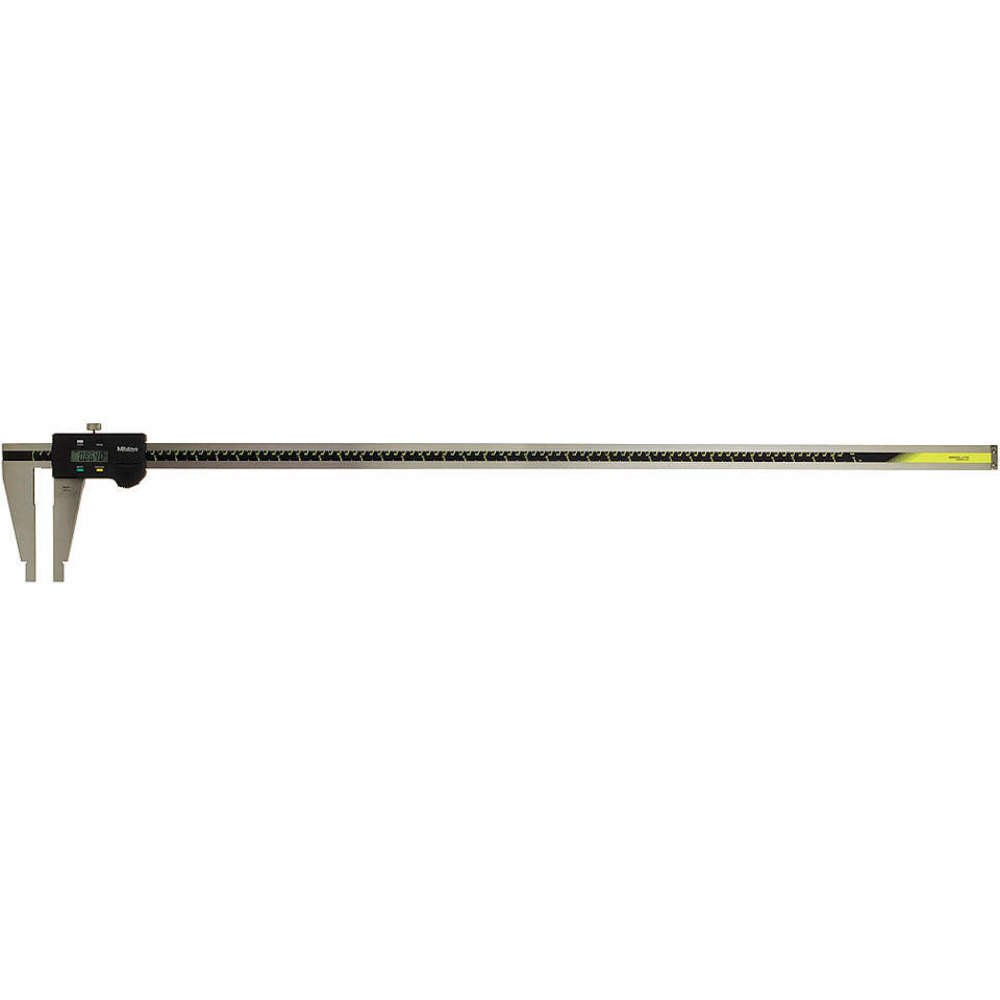

MITUTOYO 500-507-10 Absolute Digital Caliper 0 To 40 Inch
Item: AD4LCPModel: 500-507-10Cross Ref: 41T260
7 In Stock
Ships within 2 days via
13.00% off
€2,262.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Absolute Electronic Digital Caliper |
| Absolute Positioning | Yes |
| Accuracy | -0.003" to +0.003" |
| Battery Included | Yes |
| Battery Size | SR44 |
| Calibration Certificate | No |
| Caliper Grouping | Digital Caliper |
| Caliper Material | Stainless Steel |
| Case | Fitted Plastic |
| Case Material | Plastic |
| Case Type | Wooden |
| Certification | Certificate Of Inspection |
| Compatible Spc Cable | MFR. No. 959149, MFR. No. 959150 |
| Coolant Resistant | No |
| Data Output Connection Type | Digimatic |
| Data Output Type | Cabled |
| Depth Rod Shape | Rectangular |
| Dimensions Type | Inch, Metric |
| Display Type | LCD |
| Dust Resistant | Yes |
| Function | Origin-Set, Zero, Data Output, Inch/Mm, Alarm: Low Voltage, Counting Value Composition Error |
| Functions | Origin-Set, Zero, Data Output, In./Mm, Alarm, Low Voltage, Counting Value Composition Error |
| Graduations (lower Scale) | 0" |
| Graduations (upper Scale) | 24" |
| Included Case | Yes |
| Included Certification | Certificate Of Inspection |
| Ip Rating | Not Rated |
| Jaw Actuation Type | Slide |
| Jaw Depth | 5 1/8" |
| Jaw Depth Upper Jaw | 1 31/32" |
| Jaw Material | Stainless Steel |
| Jaw Shape | Standard |
| Left-handed Operation | No |
| Linear Encoder Type | Electrostatic Capacitance |
| Long Form Calibration Certificate | No |
| Material | Stainless Steel |
| Max. Measurement | 1000 mm , 40" |
| Measurements | Outside, Inside, Step |
| Measures Depth | No |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | Yes |
| Min. Measurement | 0 mm , 0" |
| Min. Measurement-inch | 0" |
| Product Datasheet | mitutoyo-500-507-10.pdf |
| Range | 0" to 40" |
| Repeatability | 0005", 01 mm |
| Resolution | 0.0005" |
| Spc Output | Yes |
| System Of Measurement | Imperial, Metric |
| Water Resistance | No |
| With Locking Nut | Yes |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 128.27 |
| Ship width (cm) | 30.48 |
| HS code | 9017304000 |
| Country of Origin | JP |
Documentation:
Product Variants
| Product | Model | Range | Jaw Depth | Jaw Actuation Type | Jaw Material | Accuracy | Case Type | Ip Rating | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
500-172-30CERT | 0" to 8" | 1.97" | Thumb Wheel | Stainless Steel | -0.001" to +0.001" | Plastic Case | Not Rated | Stainless Steel | €447.24 | |
 |
500-195-30 | 0" to 4" | 1.57" | Thumb Wheel | Stainless Steel | -0.001" to +0.001" | Plastic Case | Not Rated | Stainless Steel | €221.23 | |
|
500-195-30CERT | 0" to 4" | - | Thumb Wheel | Stainless Steel | -0.001" to +0.001" | Plastic Case | Not Rated | Stainless Steel | €267.18 | |
 |
500-197-30 | 0" to 8" | 1 31/32" | Thumb Wheel | Stainless Steel | -0.001" to +0.001" | Plastic Case | Not Rated | Stainless Steel | €349.60 | RFQ
|
|
500-197-30CERT | 0" to 8" | 1.97" | Thumb Wheel | Stainless Steel | -0.001" to +0.001" | Plastic Case | Not Rated | Stainless Steel | €537.90 | |
 |
500-506-10 | 0" to 24" | 3.54" | Slide | Stainless Steel | -0.002" to +0.002" | Plastic Case | Not Rated | Stainless Steel | €1,490.98 | |
|
500-506-10CERT | 0" to 24" | 3.54" | Slide | Stainless Steel | -0.002" to +0.002" | Plastic Case | Not Rated | Stainless Steel | €1,346.40 |
